CE RoHS Mr Series LED Driver Power Supply 35W 50W 75W 100W 150W 200W AC DC Display Screen and LED Lighting Power Supply
| US$5.88-20.88 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
MR100W-12V/24V
Driving Method
LED Regulator Voltage
Circuit Structure
PWM Controlled
Certification
CE, RoHS, ISO9001, CCC
Power Supply Mode
Constant Voltage Source
Modulation System
PWM
In-Out
Step-down Type
Power Supply Voltage
176-264VAC
Pack Sealing Size
L*W*H:100*97.5*29.5mm
Brand
Zhongyang
Packaging Quantity
45PCS / Carton
Carton Size
390 * 345 * 230 mm
Efficiency
>85%
Working Temperature
-30ºC~+50ºC
Transport Package
Single Item Packaging
Trademark
ZHONGYANG
Origin
Changsha, Hunan, China
HS Code
8504401990
Production Capacity
20000PCS/Month
Product Description

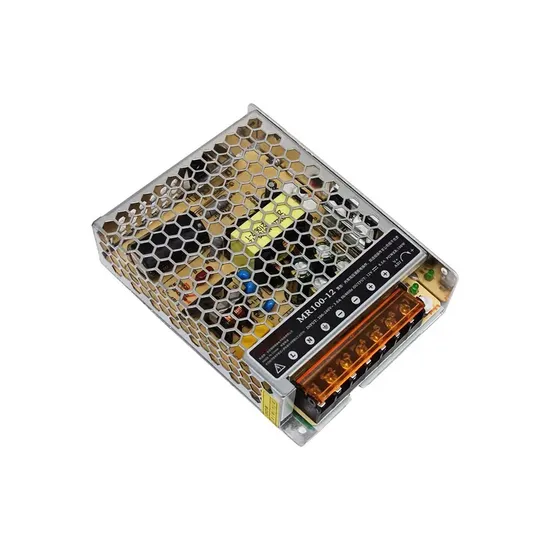

Product Description The MR series is an ultra-thin indoor power supply with a full aluminum housing and honeycomb ventilation holes. It is available in models ranging from 25W to 400W and features constant voltage and constant current operating modes. It is suitable for indoor LED signage, lighting projects, lighting engineering, or security and surveillance systems.Product Parameters
| Product selection | MR25-12/24 | MR50-12/24 | MR75-12/24 | MR100-12/24 | MR150-12/24 | MR250-12/24 | MR400-12/24 | ||||
| Input voltage | 200~240VAC | ||||||||||
| Output voltage/current | 12V -2.1A/ 24V-1.1A | 12V-4.2A/ 24V 2.1A | 12V-6.3A/ 24V-3.2A | 12V-8.3A/ 24V-4.2A | 12V-12.5A/ 24V-6.3A | 12V-20.8/ 24V-10.4A | 12V-27A/ 24V- 14.6A | ||||
| Voltage regulation accuracy | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ||||
| Efficiency | ≥83% | ≥83% | ≥83% | ≥83% | ≥83% | ≥83% | ≥83% | ||||
| Protection feature | Overcurrent protection,Overvoltage protectionshort ,Short circuit protection | ||||||||||
| Protection feature | GB4943/IEC62368,GB2324,EN55022,IEC61000,GB 17625,GB/T17626,GB/T14714 | ||||||||||
| Operating temperature/humidity | -30ºC~60ºC;5%~95%RH non-condensing | ||||||||||
| Altitude | 2000m(Above 3000m, the height rises by 100m,Environment temperature drops 0.6ºC) | ||||||||||
| Three-proof requirements | Three-proof requirements | ||||||||||
| Heat dissipation method | Natural cooling,MR400 fan cooling | ||||||||||
