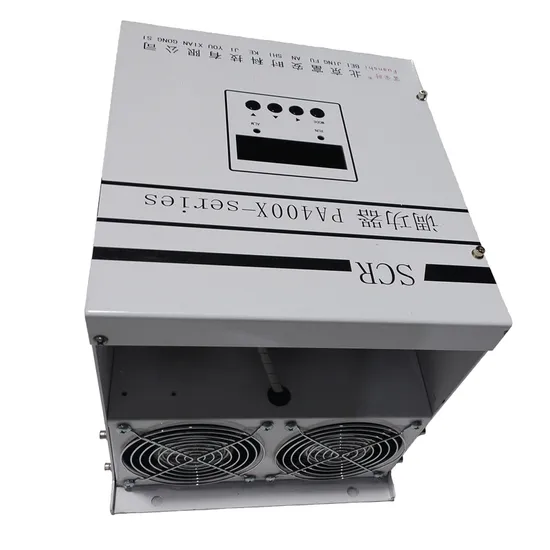

Three Phase Power Regulator Thyristor PA400X-I-4-200-C-N-Ng Automatic Voltage Regulator

Product Description

Product Description China PA400X Three Phase display power regulator

Model code
PA400X-	3-phase voltage regulator board (with overcurrent protection and current limiting function)
Input signal	I-	4-20MADC Input impedance: 120Ω
	V-	0-5VDC internal resistance ≥10K
Load connection method		2-	Star neutral point connected to zero line
		3-	The neutral point of triangle or star is not connected to the zero line
		4-	Inner triangle
Rated current			60-	60A
			80-	80A
			100-	100A
			150-	150A
			200-	200A
			250-	250A
			300-	300A
			400-	400A
			500-	500A
			600-	600A
			800-	800A
Trigger method				0-	Phase shift voltage regulation type
				C-	Variable cycle zero-crossing power regulation
				I-	Phase-shift voltage regulation and variable cycle zero-crossing power regulation
Communication Mode					N-	none
					5-	RS485 Communication
External manual function						N	none
						M	With potentiometer
Fast fuse							N	none
							G	With fuse

Order example:PA400X-I-3-50-0-N-NG
PA400X Series Power Regulator,Input signal 4-20MA,Working voltage 380VAC,Rated current 50A,Voltage regulating type, with fast fuse. Our Advantages
PAX400X Series 3-Phase Display Power Regulator
Features
* Phase angle or variable period power, with display function
* Fully controlled circuit, suitable for inductive loads (transformers, silicon-molybdenum rods, silicon-carbon rods)
* Current capacity: 60-800A
* Power supply: 380VAC, frequency 50HZ
* Operating environment: temperature -10ºC-50ºC, humidity ≤90%HR
* Adjustment output range: (0-98%) US, US (power supply voltage)
* Insulation resistance: minimum 20MΩ, 1000VDC
* Support communication: RS485 communication Detailed Photos
