Universal Tool Milling Machine X8132 X8140
| US$14,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X8140
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Motor
2.2kw
Speed
40-2000r/min
Horizontal working surface
320x750mm
Transport Package
Plywood Case
Specification
1400kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
5PCS/Month
Product Description

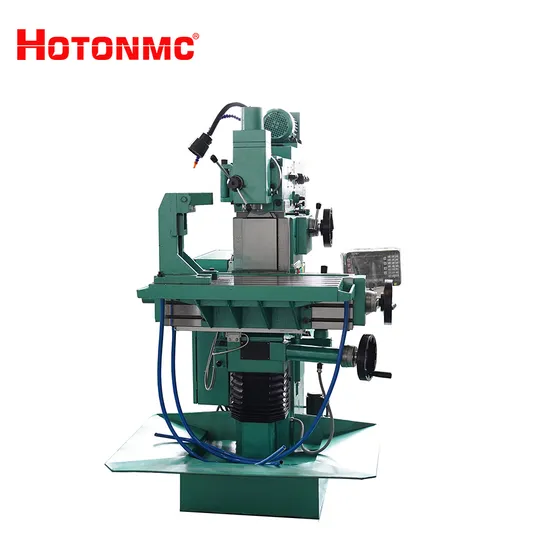

UNIVERSAL TOOL MILLING MACHINE
X8132 universal tool milling machine is a versatile machine,extensively used for metal cutting manufacturer in different mechanical industries. It is particularly suitable for half-finished and precision-machined manufacturing of machine parts,which has complicated shapes. It has a great advantage for manufacturing middle and small parts to use this machine tool.
Universal tool milling machine
horizontal working table and vertical working table
vertical milling head swivel ±90°
SPECIFICATIONS:
| Model | X8132 | |
| Horizontal working surface | 320x750mm | |
| T slot no./width/distance for Horizontal work table | 5/14mm /63mm | |
| Vertical working surface | 225x830mm | |
| T slot no./width/distance | 3 /14mm /63mm | |
| Max. longitudinal (X) travel of working table | 45/400mm | |
| Max.cross travel (Y) of horizontal spindle slide | 305/300mm | |
| Max. vertical travel (Z) of working table | 400/390mm | |
| Distance from axis of horizontal spindle to surface of horizontal working table | Min. | 85±63mm |
| Max. | 485±63mm | |
| Distance from nose of vertical spindle to surface of horizontal working table | Min. | 85±63mm |
| Max. | 450±63mm | |
| Distance from axis of vertical spindle to bed guideway (Max.) | 425mm | |
| Range of spindle speeds (18degrees) | 40-2000r/min | |
| Max. Swivel of vertical milling head | ±90° | |
| spindle taper bore | ISO40 7:24 | |
| Range of longitudinal(X),cross(Y) and vertical (Z) traverse | 10-380mm/min | |
| Rapid feed of longitudinal(X),cross(Y) and vertical (Z) traverse | 1200mm/min | |
| Travel of vertical spindle quill | 80mm | |
| Main drive motor power | 2.2kw | |
| Total power of motor | 3.59kw | |
| Overall dimension | 1215x1200x1800mm | |
| Net weight | 1300kgs | |
| Distance from vertical table surface to vertical guideway | 160mm | |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
