Heat Resistant Air Steel Wire High Pressure Steam Hose with High Temperature

Heat Resistant Air Steel Wire High Pressure Steam Hose with High Temperature

US$1.60 500 Meters (MOQ)

Basic Info.

Model NO.
Steam Hose
Length
20m/Roll, 40m/Roll, 50m/Roll
MOQ
500 Meters
Surface
Smooth or Wrapped
Application
for Conveying Saturated Steam & Super Heated Water
Working Pressure
17bar/20bar
Delivery Time
25-45 Days
Certification
ISO:9001:2008
Warranty
12 Months
Payment
T/T 30%, 70% by Bl
Working Temperature
up to +230°c
Transport Package
Strong Woven Braided Bag
Specification
3/8"-2"
Trademark
Hyroteflex or As Request
Origin
China
HS Code
40092100
Production Capacity
10 Million Meters

Product Description

Heat Resistant Air Steel Wire High Pressure Steam Hose with High Temperature Product Parameters

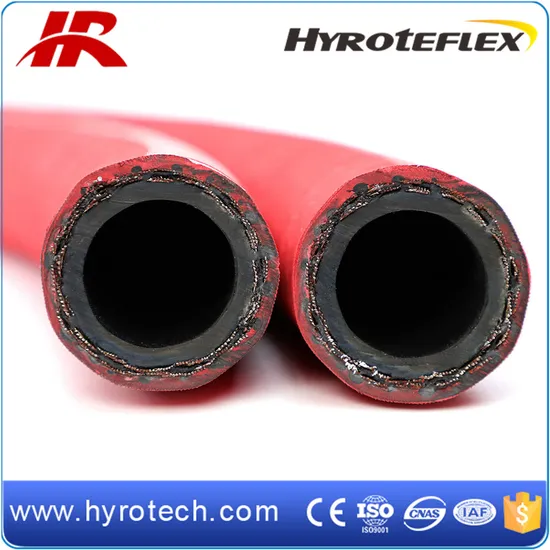

Construction: Made of excellent heat-resistant rubber, the reinforcement is braided with copper facing wire.
Application: For conveying saturated steam and super heated water continually at a temperature below 210 ºC or intermittently at a temperature below 230 ºC .


W/B		 Size Outside Ø Working Pressure Burst Pressure Bend Radius Length
mm inch mm Bar Psi Bar Psi mm m

1W		 10 3/8 21.5 17 255 50 720 130 20/50
13 1/2 24.5 17 255 50 720 180 20/50
16 5/8 27.5 17 255 50 720 205 20/50
19 3/4 30.5 17 255 50 720 240 20/50
22 7/8 33.5 17 255 50 720 280 20/50
25 1 37.0 17 255 50 720 300 20/50
32 1 1/4 44.0 17 255 50 720 420 20/40
38 1 1/2 50.5 17 255 50 720 500 20/40
45 1 3/4 57.5 17 255 50 720 500 20/40
51 2 63.5 17 255 50 720 630 20/40
64 2 1/2 77.5 17 255 50 720 700 20/40

2W		 10 3/8 23.0 20 300 60 860 130 20/50
13 1/2 26.0 20 300 60 860 180 20/50
16 5/8 29.0 20 300 60 860 205 20/50
19 3/4 32.0 20 300 60 860 240 20/50
22 7/8 35.0 20 300 60 860 280 20/50
25 1 38.5 20 300 60 860 300 20/50
32 1 1/4 45.5 20 300 60 860 420 20/40
38 1 1/2 52.0 20 300 60 860 500 20/40
45 1 3/4 59.0 20 300 60 860 500 20/40
51 2 65.0 20 300 60 860 630 20/40
64 2 1/2 79.0 20 300 60 860 700 20/40
