Durama Surface Grinding Machine with High Efficiency & Precision

Product Description

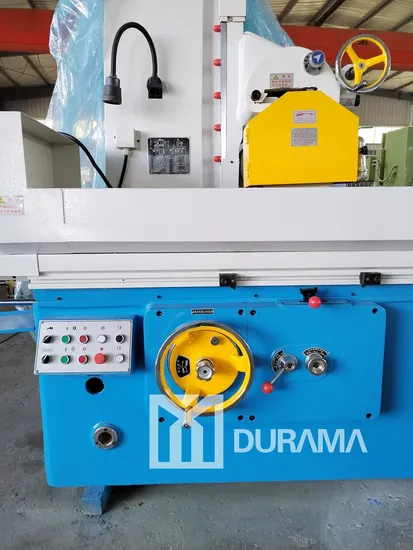

Surface grinder M7132/1600
- Table size 1600×320 mm.
- The maximum movement of the desktop (L * W) 1700 mm.
- Number of T-slots and their size 3×18 mm.
- Working speed3-25 m/min.
- The maximum distance from the spindle to the table is 570 mm.
- Maximum stroke of the grinding head / Transverse 350 mm.
- Maximum stroke of the grinding head / Vertical 400 mm.
- Spindle speed 1440 rpm
- Circle size (outer diameter*width*inner diameter)
φ350×40×φ127mm.
- Scale on the vertical handwheel 0.01 mm.
- Grinding head feed per handwheel revolution 1 mm.
- Total power 12 kW.
- Spindle motor 7.5 kW, 1440 rpm.
- High-speed motor 0.37 kW, 1440 rpm.
- Oil pump motor 4 kW, 960 rpm.
- Coolant pump motor 0.125 kW, 2800 rpm.
- Oil pump 125 l/min, 1.5 MPa.
- Parallelism of the working surface with a base level of 1000:0.015 mm.
- Surface roughness Ra 0.63 µm.
- Net weight 4300 kg, Gross weight 4900 kg,
- Overall dimensions 4400×1700×2100 mm.

Model	M7132X1600
Worktable Size	1600×320 mm
Dimensions	4400×1700×2100 mm
