CE RoHS Mx Series LED Driver Power Supply 200W 4.5V44A AC DC Display Screen and LED Lighting Power Supply
| US$5.88-20.88 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
MX200W-4.5V
Driving Method
LED Regulator Voltage
Circuit Structure
PWM Controlled
Certification
CE, RoHS, ISO9001, CCC
Power Supply Mode
Constant Voltage Source
Modulation System
PWM
In-Out
Step-down Type
Power Supply Voltage
180-240VAC
Pack Sealing Size
L*W*H:190*81.6*29.5mm
Brand
Zhongyang
Packaging Quantity
30PCS / Carton
Carton Size
453 * 238 * 300 mm
Working Temperature
-30ºC~+50ºC
Efficiency
>85%
Transport Package
Single Item Packaging
Specification
IP20
Trademark
ZHONGYANG
Origin
Changsha, Hunan, China
HS Code
8504401990
Production Capacity
20000PCS/Month
Product Description

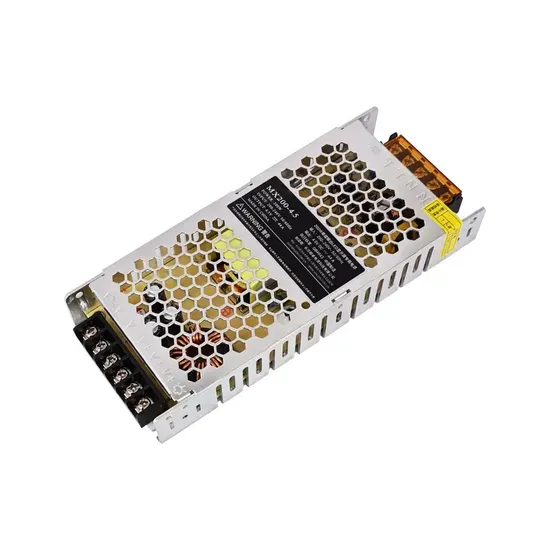

Product Description The MX series is an ultra-thin indoor power supply with a full aluminum housing and honeycomb ventilation holes. It is features constant voltage and constant current operating modes. It is suitable for indoor LED signage, lighting projects, lighting engineering, or security and surveillance systems.Product Parameters
| Product selection | MX200W-4.5V44A | MX200W-5V40A |
| Input voltage | 200~240VAC | |
| Output voltage/current | 4.5V - 44A | 5V - 40A |
| Voltage regulation accuracy | ±3% | ±3% |
| Efficiency | ≥85% | ≥85% |
| Protection feature | Overcurrent protection,Overvoltage protectionshort ,Short circuit protection | |
| Protection feature | GB4943/IEC62368,GB2324,EN55022,IEC61000,GB 17625,GB/T17626,GB/T14714 | |
| Operating temperature/humidity | -30ºC~60ºC;5%~95%RH non-condensing | |
| Altitude | 2000m(Above 3000m, the height rises by 100m,Environment temperature drops 0.6ºC) | |
| Three-proof requirements | Three-proof requirements | |
| Heat dissipation method | Natural cooling,MR400 fan cooling | |
