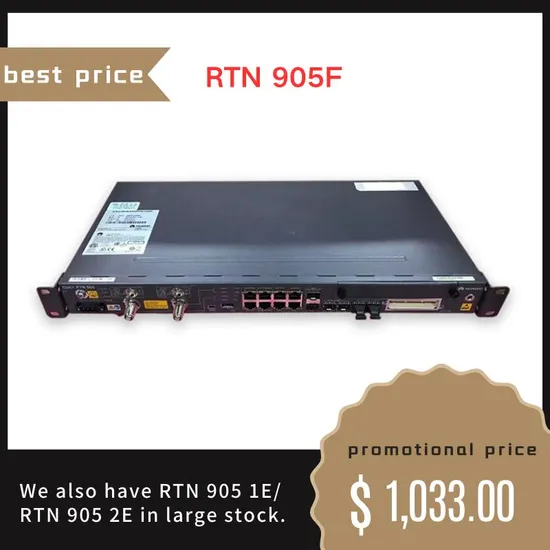

Optix Rtn 905f Indoor Split IP Microwave Transmission Radio Idu Rtn905f

Product Description

Product Description
Split Type Long Range Microwave Transmission Equipment Assembly IDU RTN 900 Series(RTN 905F) OptiX RTN 905F Basic Configuration Unit: 02312CYT-SLDMSITE17
4*GE(RJ45)+2*GE(SFP)+4*10GE(SFP+)+2*STM-1(SFP)+16*E1+2 IFU IDU Module(-48VDC)-2F, including IDU installation accessories
The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.
The Huawei 6-42 GHz traditional frequency IP microwave has a maximum of 2 Gbit/s per carrier and 16 Gbit/s per antenna ultra-large transmission capacity, it is the industry's first IP microwave that supports TDM/Hybrid/Packet/ Routing services on the unified platform, satisfying the requirements of large-capacity IP service transmission and IP-based evolving of traditional PDH/SDH microwave. The solution provides a flexible architecture that can be deployed in split, full-outdoor, or full-indoor scenarios. It features high reliability and end-to-end unified O&M management. It is widely used in broadband wireless transmission in vertical sectors, such as government, broadcasting, oil & gas, education, and electric power. Technical Specification
1.RTN 905 1E / RTN 905 2E / RTN 905 2F

Type	IDU 905 1E	IDU 905 2E	IDU 905 2F
Chassis height	1U
Extended subcard	Supported
Service interface	4 x GE electronic interface 4 x GE/FE optical interface or GE electrical interface (SFP)b 2 x 2.5GE optical interface (SFP+/SFP)c 16 x E1 interface 1 x multifunction cascading interfacea, b 1 x E1 services cascading interfaceb 2 x STM-1 interface		2 x 10GE optical interface (SFP+)a 2 x 10GE/2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP)a 2 x 2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP) 4 x GE electrical interface 2 x STM-1 interface 16 x E1 interface
Radio type	Integrated IP radio (E1 + Ethernet) Integrated IP radio (STM-1 + Ethernet) SDH radio
Highest modulation	2048QAM		8192QAM
Number of radio directions	1	2	2
RF configuration mode	1+0 1+1 HSB/FD/SD (NE cascading) XPIC (NE cascading)	2x(1+0) 2+0 1+1 HSB/FD/SD Intra-board XPIC	2x(1+0) 2+0 1+1 HSB/FD/SD Intra-board XPIC 2CA

2.RTN 905F

Network layer	Suitable for: access layer and aggregation layer
Frequency band	6 ~ 42 GHz
Channel spacing	3.5/ 7/14/28/40/56/112 MHz
Bandwidth	Determine based on ODU bandwidth
Modulation mode	QPSK Strong,QPSK,16QAM Strong,16QAM,32QAM, 64QAM,128QAM,256QAM,512QAM,512QAM Light, 1024QAM,1024QAM Light,2048QAM,4096QAM
Maximum number of RFUs	Based on the RTN905F technical specifications
RF direction	12
Air port capacity	Single carrier 1166~2500 Mbit/s (non XPIC)
Exchange capacity	90 Gbit/s (using CSHOF), 10 Gbit/s (using CSHO)
TDM Cross Capacity	32×32 VC-4
Link Aggregation	2-4
interface type	E1,T1,STM-1(e/o),FE(e/o),GE(e/o), 2.5GE(o) ,10GE(o)
describe	OptiX RTN 905F basic configuration unit 4 * GE (RJ45)+2 * GE (SFP)+4 * 10GE (SFP+)+2 * STM-1 (SFP)+16 * E1+2 intermediate frequency unit IDU module (-48VDC) -2F with IDU installation accessories
Super Dual Band	Based on the RTN905F technical specifications
L3 VPN	Based on the RTN905F technical specifications
Support eCPRI	Based on the RTN905F technical specifications
RF configuration method	N+0 N×(1+0) 1+1 N+1 XPIC 2 × 2 CA 4 ×4 MIMO
function	Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819)
Business type	Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services) L3VPN, L2VPN (VLL), CES, MCE
Key Features	CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO
antenna	Parabolic antenna: 0.3m~3.7m
IDU weight	5.4 kg(1+0) 6.2 kg(1+1)
IDU specifications	442 mm × 220 mm × 88 mm
environment	Temperature: IDU -5 °C ~+60 °C ; ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%; ODU 5%~100%
power supply	-38.4 V~-57.6 V
certificate	CE,RCM, FCC,IC,ETL,MCMC
