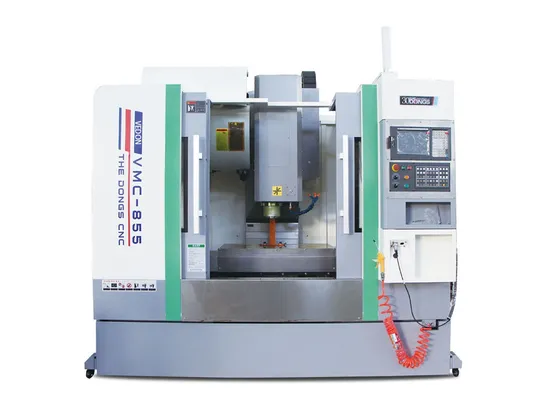

Affordable 3 Axis 4 Axis 5 Axis CNC Machining Center for Versatile Production Vmc550/Vmc650/Vmc845/Vmc855 Series Supply Customization
| US$22,000.00 | 1 Set (MOQ) |
Basic Info.
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
X-Axis Travel
800mm
Y-Axis Travel
550mm
Z-Axis Travel
550mm
Table Size(L*Degrees)
1050*550mm
Maximum Table Load
600kg
T-Slot(Slot Number*Width*Pitch)
5*18*100mm
Spindle Taper
Bt40
Spindle Power
7.5-11kw
Maximum Spindie Speed
10000rpm
Rapid Traverse(X/Y/Z)
48/48/36 M/Min
Cutting Feed
1-8000mm/Min
Feed Motor
20/20/20tnm
Spindle Nose to Table
130-660mm
Spindle Center to Columnsurface Distance
590mm
Magazine Type
24t
Transport Package
Plywood Box
Specification
3300*2400*3000mm
Trademark
Vedon
Origin
China
HS Code
8457101000
Production Capacity
300pieces/Year
Product Description
Features of machining center •High quality resin sand cast iron
•Taiwan main axis
•Taiwan ball screw and lock nut
•Taiwan booster cylinder
•NSK bearing in Japan
•German R + W coupling
•Automatic lubrication system
•Selection of chip conveyor
Product Parameters
| Specifications | Unit | VMC855 | VMC845 | VMC650 | VMC550 |
| X-axis travel | mm | 800 | 950 | 650 | 550 |
| Y-axis travel | mm | 550 | 500 | 450 | 320 |
| Z-axis travel | mm | 550 | 500 | 500 | 450 |
| Table size(L*degrees) | mm | 1050*550 | 1000*450 | 900×410 | 800×260 |
| Maximum table load | kg | 600 | 450 | 400 | 200 |
| T-slot(slot number*width*pitch) | mm | 5*18*100 | 3*18*118 | 3*16*115 | 3*16*115 |
| Spindle taper | / | BT40 | BT40-120 | BT40/120 | BT40/120 |
| Spindle power | KW | 7.5-11 | 7.5-11 | 5.5-7.5 | 3.7-7.5 |
| Maximum spindie speed | rpm | 8000 | 8000 | 8000 | 8000 |
| Rapid traverse(X/Y/Z) | m/min | 48/48/36 | 24/24/24 | 24/24/24 | 24/24/24 |
| Cutting feed | mm/min | 1-8000 | 1-8000 | 1-8000 | 1-8000 |
| Feed motor | NM | 20/20/20 | 2010/10/15 | 2010/10/15 | 2006/6/15 |
| Spindle nose to table | mm | 130-660 | 120-650 | 100-600 | 80-530 |
| Spindle center to columnsurface distance rail | mm | 590 | 466 | 500 | 350 |
| Magazine type | T | 24 | 24 | 16 | 12 |
| Positioning accuracy | mm | ±0.0075 | ±0.008 | ±0.004 | ±0.004 |
| Repeat accuracy | mm | ±0.004 | ±0.004 | ±0.005 | ±0.005 |
| Machine weight.(about) | T | 6 | 4.2 | 4 | 3 |
| Dimensions | m | 2.8*2.4*2.8 | 2.6*2.2*2.6 | 2.5×2.2×2.5 | 2.2×2×2.3 |
Processing Effect
Company Profile
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
