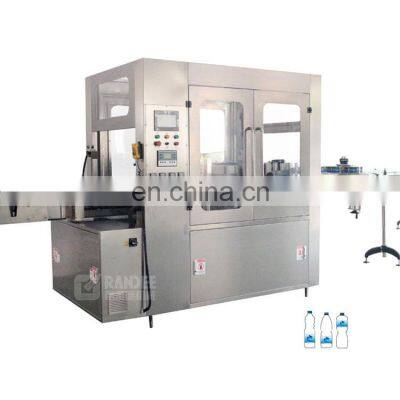

Automatic linear type hot melt glue opp bopp labeling machine

Product Description

Product Description
Automatic linear type hot melt glue opp bopp labeling machine
Product Description
Features:
1.Fully automatic labeling machine by the company's senior engineers nearly ten years of research, take the lead in the use of German professional company technology, many years of concentration accumulation, will be good quality and innovative ideas in each detail of the labeling machine and achieve perfect labeling.
2. The labeling system is connected with the production line by rotary encoder. The system has a learning function, which can automatically measure the size of the product and the label. The high speed computing function of CPU is used to make the label completely consistent with the center line of the product, which greatly improves the accuracy.
3. Since the rotary encoder is used for tracking, the labeling action is not affected by the speed, which avoids the influence of voltage fluctuation, system damping change and other factors on the labeling accuracy.
4. High precision French Schneider servo system to achieve high response system, and extremely high reliability, so that you do not have to worry.
5.The machine parts using unique surface treatment technology, never rust.
6. Many all parts use specialized production, the company has many advanced processing center, processing accuracy far ahead, is the only use of processing center manufacturing labeling machine factory.
6. Our labeling machine is double roller is the only active send mark labeling machine, this way of working can be effectively will tag after tightening again take the initiative to send, can avoid the broken due to label die-cutting injured the phenomenon, and because the label in the blocks is always in a state of tension, easy to use cameras label testing equipment.
Technical datas:

No.	Item	Parameter data
1	Voltage	380V
2	Frequency	60Hz
3	Power	8KW
4	Available bottle dimension	Diameter:40-105mm, height=80-350MM
5	Label specification	Length:125-325mm,Height:20-150mm
6	Gluing way	Roll painting(about 10mm, both label head and tail)
7	Capacity	6,000-15000 bottles per hour (500ml bottle)
8	Glue Consumption	l kg/ 100,000 bottles (label height:50mm)
9	Compressed Air Pressure	MIN5.0bar MAX8.0bar
10	Consumption of Compressed Air	0.2M³/minute
11	Total Weight	2500Kg
12	Overall dimension	L=3150,W=1770,H=1800

Detailed Images

Linear type hot glue OPP labeling machine Features: 1.Fully automatic labeling machine by the company's senior engineers nearly ten years of research, take the lead in the use of German professional company technology, many years of concentration accumulation, will be good quality and innovative ideas in each detail of the labeling machine and achieve perfect labeling.
	1.We only use one main motor to control the transmission of all the fuselage, which can keep running synchronously with high efficiency. Use mechanical roller to label and care labels to ensure that the labels are affixed with higher accuracy and faster speed, and the error of left and right position of labels is controlled within±2mm.
2. Cutting knife, imported from Germany, durable. In addition, the cutter in high-speed operation, easy to heat and reduce life. We are the first in China to adopt the constant temperature cooling function, so that the cutter does not get hot when operating at high speed, extending the applicable period. Ensure that the bid failure rate is below 10,000.
	3.The perfect combination of mechanical deviation correction, advanced gluing system and vacuum drum ensures high labeling accuracy. Vacuum drum: through the synchronous cooperation between vacuum drum and knife drum developed by our company, the transition is smooth and the speed of the two drums is the same, so as to completely solve the problems of wrong marking in China, poor seam accuracy and unstable voltage, which lead to the instability of suction mark and off mark caused by unstable fan air volume. Improve labeling accuracy and reduce loss
4. The label in vacuum drum suck out has helped the function, and caresses the arc and bottle perfect combination, make sure that the label with the drum, roller pressure to the bottle labeling face, let the label neat, not wrinkle, adopts the double plate cutting standard in advance through vacuum drum transfer the label to label position, glue labeling, again after rolling stick mark, so that tag is flat and level of adhesion in the bottle was a face, use vacuum drum to ensure the height of the label on the bottle position control in±2mm.
