Heavy Duty Torno Manual Horizontal Metal Lathe Machine Price Sp2122

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)

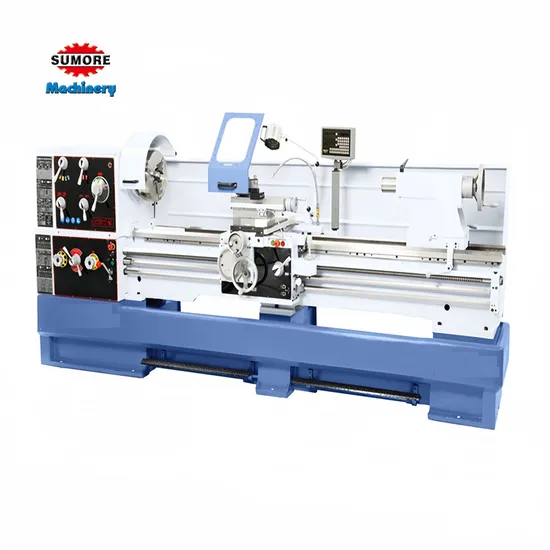

heavy duty torno manual horizontal metal lathe machine price SP2122 Most Popular Torno 3 Meter Heavy Metal Lathe Machine
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
Quick Detail: Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 1500/2000/3000mm
Swing over bed: 660/800mm
Swing over gap: 900/1035mm
Spindle bore: 105mm
Description:
SP2122 engine lathe machine can be with spindle speed 16 steps or variable speed. It is an affordable universal lathe machine. This manual lathe machine has 660mm or 800mm large swing over bed. The main features/advantages are as below:
This machine can use to process castings, steel and medium-sized and large-sized parts of nonferrous. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. An overload safety device is designed on the apron. They are also suitable for turning external cylindrical, inner hole and end face. It can do groove broaching, drilling, boring and trepanning.
Product Parameters

Model	Sp2122-IA	SP2122-IB
Swing over bed	660mm	800mm
Swing over cross slide	440mm	570mm
Swing in gap	900mm	1035mm
Length of gap	330 mm	400 mm
Distance between center	1500/2000/3000mm
Center height	330mm
Width of bed	400mm
Spindle hole	105mm
Max. section of tool	25*25mm
Max travel of cross slide	368/420mm
Max. travel of compound rest	230mm
Spindle bore	105mm
Spindle nose	D1-8
Taper of Spindle bore	Φ113mm(1:20)/MT5
Spindle speed step	16
Range of spindle speed	26~1700rpm
Leadscrew pitch	Φ40mm*2 T.P.I or Φ40mm *12mm
Inch threads range	7/16~80T.P.I(54 kinds)
Metric threads range	0.45~120mm(54 kinds)
Diamerical pitches range	7/8~160DP(42kinds)
Module pitches range	0.25~60MP(46kinds)
Tailstock sleeve taper/diameter/travel	MT5/90/235mm
Main drive motor:	7.5 KW(10HP)
Rapid traverse motor	250W
Coolant pump motor	0.09KW(1/8HP)
Cross feeds range in metric lead screw	0.044~1.48/rev(25 kinds)
Longitudinal feeds range in metric lead screw	0.022~0.74mm/rev(25 kinds)
Overall dimension(L*W*H)	3207/3707/4707*1230*1600mm
Packing size(L*W*H)	3270/3770/4770*1135*1840mm
Net Weight	3100/3400/3850kg
Gross Weight	3550/3900/4400kgs

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
