97mm Cooling Ventilador DC Silent Air Blower Fan Centrifugal Blower Fan

Product Description

4 inch 97mm Brushless 12V 24V Cooling Ventilador dc silent air blower fan
Size: 97x33 mm
Voltage: 12V 24V 48V DC
Bearing type: Sleeve Bearing/Ball Bearing
Material ( impeller + blade ): Plastic(94v-0),PBT
Fan features: lower noise, slient, longer life, greater air volume
Life time: with 50000 hours
Fan function wire: FG IP58
Fan Certification: CE ROHS TUV UL
Specifications

ITEM		Specification Condition
Part No.	MX9733GBD1
Dimension	97X33mm
Rated Voltage	12VDC
Start-up Voltage	10VDC
Operating Voltage	10.0~14.0VDC			a.Rated Voltage
Rated Speed	4500rpm		±10%	b. 25ºC
Rated Current	0.9A		±10%	c. 65% RH
Rated Power	10.8W			d. Measured after 5 Mins
Max Airflow	36.7		CFM	a. /PQ Measurement Apparatus : (LW9266-SR) b. /Standard : AMCA c. /Rated Voltage d. Rated Current
	1.04		m3/min
Max Static Pressure	410pa
/ Life Expectancy	50000hrs at 40ºC			a.L10 at Conf. Level 90% b. / Rated Voltage
/Noise Level	56dBA			a./Rated Voltage b./Non-Echo Chamber c./Standard:CNS 8753/ISO3744 d.Test Condition:ISO 7779 e./Distance: 1.0M

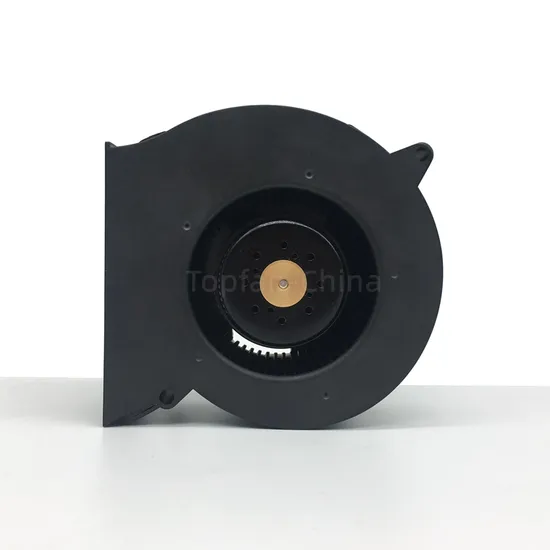

Product Photos
Gengral Specification
More Products>>>
https://topfan-china.en.made-in-china.com/product-list-1.html
Product applications

FAQ Q1 Why choose us? A1 Topfan-China is a professional manufacturer of dc fans and ac fans of high-tech enterprises. has the abundant and skilled technician, with professional R&D team, sophisticated testing equipment, advanced production-line, scientific production management and rich experience in research and development. Q2 Are we trader or producer? A2 We are both a trader and a producer, because we have our own factory and brand. Q3 How long is our delivery time? A3 Generally speaking, in 15 days after receiving your advance payment, the specific delivery time depends on the items and the quantity of your order. Q4 OEM/ODM Service? A4 If your purchase quantity reaches a certain quantity, we can also OEM/ODM. Q5 What is our MOQ? A5 The minimum order quantity depends on the items and the quantity of your order., the exact quantity can be communication, we can provide samples. Q6 What is our products standards? A6 First, according to Chinese standards, and then international export standards, and through the CE, RoHS, UL, TUV certification. Q7 What is your terms of payment? A7 T/T, Western Union 70% as deposit, and 30% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q8 What is your terms of delivery? A8 FOB, CFR, CIF, EXW Q9 Accepted Payment Currency? A9 USD, HKD, CNY
Factory show:
Shenzhen TOPFAN technology development co., LTD. (Topfanchina) is a professional manufacturer of dc fans and ac fans of high-tech enterprises. The cooling fan products can be divided into: DC fan, AC fan and EC (AC TO DC) fan. According to the wind direction can be divided into: axial fan, blower fan, cross-flow fan and centrifugal fan; According to size can be divided into: micro fan, micro blower fan and industrial fans; According to the function can be divided into: reversible fan, high temperature fan, waterproof fan, temperature-control fan, environmental protection fan. Cooling fans are widely used in automobile, home appliances, network communication, medical equipment, uav, air purification, monitoring equipment, chassis, military, LED lighting, office equipment, mechanical equipment, emerging intelligent products and other fields.
