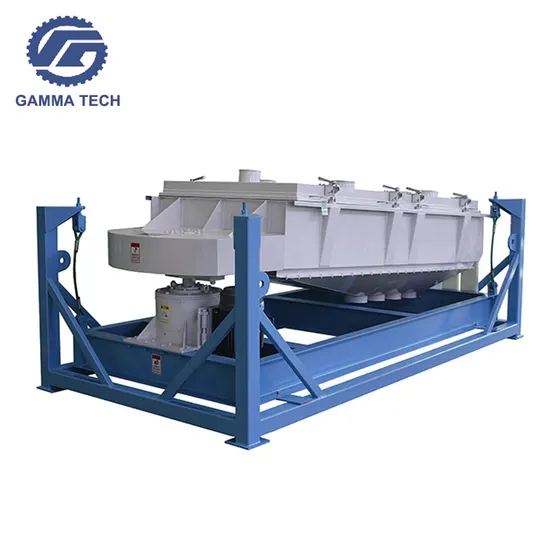

Classification Plansifter for Food Aqua Feed and Animal Feed Industry

Product Description

Classification Plansifter For Food Aqua Feed And Animal Feed Industry
Working Principle The circular vibrating screen is mainly composed of screen box, screen mesh, vibrator, damping spring, etc. Mounted on the side plate of the screen box and driven to rotate by the motor through V belt, the vibrator generating centrifugal force causes the vibration of the screen box. The vibrator, namely the screen box, vibrates in a circular-like path. During the period, materials with their particle size smaller than the sieve aperture will fall down to the lower deck and become undersize materials; while materials with their particle size larger than the sieve aperture will be discharged from the outlet through continuous jumping, and hence finishing the screening process. Technical Parameters Small Size

Model	Screen Deck			Feeding Size (mm)	Capacity (t/h)	Electric Motor
	Area (m2)	Angle (°)	Aperture (mm)			Model	Power (kW)
YA1236	4.3	20	6~50	≤200	75~245	Y160M-4	11
YA1530	4.5				80~240	Y160M-4	11
YA1536	5.4				95~310	Y160M-4	11
YA1536				≤400	100~350	Y160L-4	11
YA1542	6.3		6~50	≤200	110~385	Y160M-4	11
YA1548	7.2		6~50		120~420	Y160L-4	15
YAH1548			30~150	≤400	200~780	Y160L-4	15

Midium Size

Model	Screen Deck			Feeding Size (mm)	Capacity (t/h)	Electric Motor
	Area (m2)	Angle (°)	Aperture (mm)			Model	Power (kW)
YA1836	6.5	20	30~150	≤200	115~370	Y160M-4	11
YAH1836	6.5		30~150	≤400	220~800	Y160M-4	11
YA1842	7.6		6~50	≤200	135~430	Y160L-4	15
2YA1842	7.6		6~150		135~430	Y160L-4	15
YAH1842	7.6		30~150	≤400	340~900	Y160L-4	15
YA1848	8.6		6~50	≤200	150~490	Y160L-4	15
2YA1848	8.6				150~490	Y160L-4	15
YA2148	10		6~50	≤200	175~570	Y180M-4	18.5
2YA2148	10		6~50	≤200	175~570	Y180L-4	22

Big Size

Model	Screen Deck			Feeding Size (mm)	Capacity (t/h)	Electric Motor
	Area (m2)	Angle (°)	Aperture (mm)			Model	Power (kW)
YA2160	12.6	20	6~80	≤200	230~800	Y180M-4	18.5
2YA2160	12.6		6~50	≤200	220~715	Y180L-4	22
YA2448	11.5	20	6~50	≤200	200~650	Y180 M -4	18.5
YA2460	14.4		6~50	≤200	260~780	Y200L-4	30
2YA2460	14.4		6~50	≤200	260~780	Y200L-4	30

Main Feature 1. Simple structure, easy to install and maintain.
2. Can be used for single-layer, multi-layers screening with long life.
3. Good sealing without dust flying.
4. Low consumption with high yield and low cost.
5. Sieve body parts adopt steel plates and sectional material welded together (part of the body for bolt connection) the overall good stiffness, strong and reliable.
6. Material auto discharge, be able to continuous operation.
Company Profile Wuxi Gamma Tech Machinery Co., Ltd. is located in the Science And Technology Industrial Park in Wuxi Jiangsu. We have 13 years history, and our company covers an area of 34500 square meters, construction area of 27895 square meters
We are a professional manufacturer specialized in designing and marketing pellet mill and pellet production line. Company introduces a full set of world-class technology of CNC laser cutting machine, profile automatic sand blasting equipment, automatic paint room, large shear bending equipment, CNC lathes, CNC wire cutting, CNC punching machine, specializing in the production of series of complete sets of feed machinery equipment and undertake complete turn-key project.
We can provide customers with: 1-80 T/H livestock and poultry feed units, 0.5-20 T/H special aquatic feed units, 1-100 T/H forage feed units, 1-35 T/H compound fertilizer and irrigation fertilizer complete sets of units, 0.5-50 T/H biomass wood and straw pellet production line and so on. We provide whole plant planning, design, equipment manufactory, installation commissioning, personal training and other complete sets of one-step service.also we have local installation resource for some markets
We exported to all over the world, such as Saudi Arabia ,Qatar ,Russia, Greece, Romania, South Korea, South Africa and so on.
Advanced equipments: (to ensure high quality products for our clients)
-CNC flame cutting machine
-steel shot blasting machine
-International advanced cutting, drilling, bending equipment
-Advanced Coating Line FAQ 1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer will pellet machinery, which has almost 13 years of experience in this feed
pellet machinery industry. Trust Me, Choose Gamma Tech is the best decision you ever made.
We have professional R&D team, design team , production team ,sale team and after-sale team, we will provide the
most professional service for you .
2. Q: How can I get to your company?
A: You can get a flight to shanghai Airport. We are just about 2hours away from shanghai Airport. Welcome
To Visit Gamma Tech factory and project case in China.
3. Q: How long is your warranty time?
A: one year(Calculated from the equipment arrives the customer's side.). After this period we will definitely support you
we have online trouble shooting and some makets we have local supervisor for support . also we can send engineer from china if we cannot solve by other way.
4. Q: Will you send engineers to install the plant?
A: yes, We can arrange the professional technical engineers to installed for you , but at an extra cost payable by the customer. On The time, our engineer will train your team how to operate all the complete line. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Do you have some foreign customers using your equipment?
A: yes, we have.our company has established business relationships with customers in Poland, Clumnbia ,German,Slovakia,Ukraine,Vietnam,Algeria, Saudi Arabia, Qatar,Afghanistan, Indonesia, Thailand, and other countries.
6.Q:What capacity of your equipment ? Can You design the sheme for me ?
A: Our equipment can meet 1-100t/h capacity requirement. We can free design the different project sheme for you . Include the 1-production construction design drawings, 2-steel structure full drawing and steel material list; 3-plant and sectional layout graph of workshop drawings. 4.steel structure construction drawings, 5-the detailed steel structure drawings and materials list;6-diagram of floor, roof and wall reserved hole ;7-Oscillatory coefficients of equipment.
