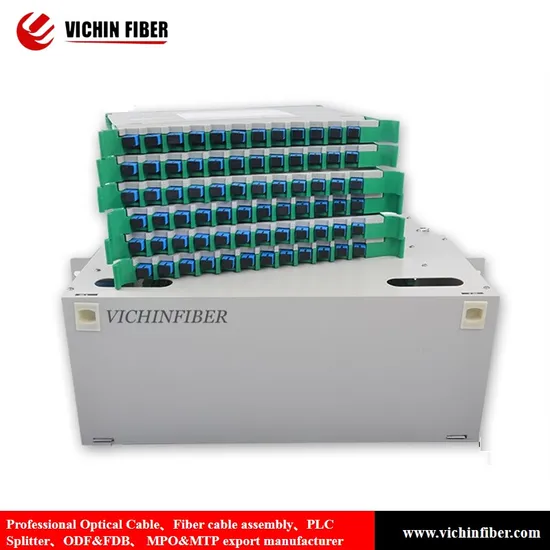

Outdoor Fiber Optical Distribution Frame ODF 12 48 72 144 Core Port Unit

Product Description

--- Product Description ---

Specification model	D(mm)	W(mm)	H	Weight(KG)
12 cores	482	250	1U	3.7
24 cores	482	250	2U	5
48 cores	482	250	3U	6.5
72 cores	482	250	4U	7
96 cores	482	250	5U	7.5
144 cores	482	250	8U	8

ODF is designed for either to support direct termination or fusion splicing ofthe fbers.The materials used for the patch panel is of high qualitymetal with natural finishes making it light weight but robust.
Features designed to simplify installation andmaintenance includes telescopic pull out tray with easy push-pull lock nut, double cable entries from the back allowing more than 2 cables termination in the patch panel.
ODF can be loaded with a variety ofadaptors likeST,SC,FC,LCandMTRJ,duplex adaptor are also available for those applicable type. All this must be defined during order, according to the specific part number. The fully loaded patch panel support termination up to 96 fibers.
Operation Conditions
Temperatures:-5°C--60ºC
CHumidity: 90% at 30°
CAir Pressure:70kPa-106kPa
Specification This series ofequipments can be flexible configuration, simple installation, convenient to maintenance, easy to manage.
* Applied in the branch connection of optical fiber termination;
* 19" standard structure;
* Available for the adaptors installation of FC,SC,ST,LC;
* Artistic appearance, easy for pasting signs.
* Equipped with cable fixing kits, fit for different application, such as standard rack and
network rack
