Aluminum CNC Double Head Cutting Machine for Aluminum Profile/UPVC Profile/Curtain Wall Material Cutting

Product Description

jinan SETH Intelligent equipment Co.Ltd.

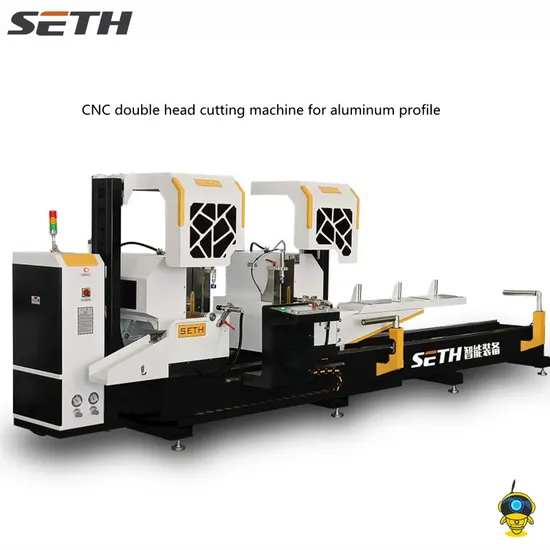

CNC double head precision cutting saw for aluminum profile

Equipment features:
1.The machine is used for cutting of aluminum profile.
2.imported diamond blades is of accurate processing and high endurance.
3.The two heads can work alone, can also work at the same time.
4.To cut out a section of desired length and two end angles.
5.Right head adopt motor drive.
6.Two saw head can be manually switching angle. realize the -45degree ,90 degree,45degree angle. 7. The imported special hard-metal saw features the high precision and efficiency for cutting alu-alloy doors and windows.
8. And the cutting precision has reached the advanced level in the world. The hi-precision main shaft makes the saw stable and the surface smooth.
9. The gas-liquid damping cylinder realizes smooth feeding and steady moving.
10. The automatically opening and closing protecting cover makes the operation safe and easy.
11. The moving heads adopt imported linear bearing motion pair, and they features high precision.
12. The moving feeder can efficiently locate the profile, and making the clamping easy and reliable.
13. With the large saws and long structures, the saw has large cutting range. Detailed Photos

Product Parameters

Power	380V 50HZ
Saw head motor	2×3KW/ 2840r/min
Working pressure	0.5 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max4300mm MIN420mm (8200-300)
Saw width	Max 140mm
Maximum cutting slope	45°140×220mm 90°140×300mm
Sawing Angle	90°, 45°
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	ø500 × ø30 × 4.4× Z120
Dimensions	5800×1800×1500 mm
Weight	1650 kg
Repeat constant length accuracy	≤ 0.05mm
Profile cutting Angle tolerance	±3 '
Cutting plane flatness	≤ 0.1m
Roughness of cutting surface	Ra12.5μm

	Serial number	Name of name	Brand brand	Origin
	1	CNC System	Delta	Taiwan
	2	Computer PC	Delta	Taiwan
	3	Touch screen	Delta	Taiwan
	4	Drive	Schneider	Shanghai
	5	Servo Motor	Schneider	Shanghai
	6	Automatic circuit breaker	Schneider	France
	7	Phase Sequence Protector	Schneider	France
	8	AC contactor	Schneider	France
	9	Thermal Protector	Schneider	France
	10	Switching power supply	Schneider	France
	11	Relay	Schneider	France
	12	Low voltage switch button	Schneider	France
	13	Terminal	Honeywell	United States
	14	Motor motors	Simic	Italy
	15	Close switch	Otonix	Korea
	16	Reducer	Xinbao	Japan
	17	Alloy saw blade	Heyuan	Japan
	18	Guide rail	Silver	Taiwan
	19	Solenoid valve	Yadek	Taiwan
	20	Dynamic spindle	Anyang	Henan Province
	21	High Flexible Wire Cable	Eternal	Jiangsu Province
	22	Cylinder	Hundred Emperor	Shandong Province

Company Profile
Join hand with SETH lead to Intelligence

Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
The company has all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing, assembly, test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, cutting saw machine ,milling and drilling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle, Please join hands with SETH to lead intelligence.
Packaging & Shipping
Our Advantages

FAQ
1. We have more than 20 years of production and manufacturing experience in doors and windows machiniery
2. Top 3 door and window machine manufacturers in China
3.230 staffs professional team
4. Export to more than 40 countries
5 Covering an area of 300 mu
6. More than 3000 sets production per year
7. Cutting center Leading brand in China8.We accept certification BV/CAS/SGS/CE ,etc.
