CNC Marble Router for 3D Stone Engraving

Product Description

CNC Marble Router for 3D Stone Engraving
Advantages
1. 8mm industrial class square tube strong bed. You can use our Uscam cnc router more than 10 years.
2. T-slot working table, pvc protection. We can also provide vacuum table and vacuum pump for your choice.
3. DSP control, very easy operation and support offline which means that you can still operate even power off.
4. Water cooling spindle. International famous brand, good using and guaranteed after-sale service
5. Stepper motor with big power supply. Servo motor for your option.
6. Steel tube lathe bed,low center of gravity,strong bearing capacity,not easy to deformation,stable and reliable operation.
7.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
8.Axis Y with two spindles,guarantee the cutting strength and engraving precision.
Technical Parameters

Description	Parameter
X,Y,Z Working Area	1300*2500*380mm
Table Surface	T-slot working table
Structure	8-10mm industrial class square tube strong structure
X Y Z Structure	Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel; all axis with Taiwan Hiwin 20mm square rails
Max. Working Speed	30000m/min
Spindle	Water cooling spindle(optional)
Spindle Speed	0-24000RPM
Drive Motors	stepper motors and drivers(servo motor for option)
Inverter	Fuling inverter
Control System	DSP handle controller with USB port or NC studio
Lubrication	Automatic Lubrication system
Tool sensor	Manual tool sensor calibration
X,Y Resolution	<0.01mm
Spare parts	Japan Omron limit switch for X, Y, Z axis; Highly flexible towline French electric parts
Software Compatibility	Artcam software for free, Type3 Software, Artcut Software
Working voltage	380V/50HZ/3PH

#All the working area and specifications can be customized according to your requests.
Applicable Industries
♦ It mainly used in 3D/2D engraving, Embossment, line engraving ,Cutting, Edge inversing, Drilling on Nature stones, Granites, Artificial stones, Tombstones, Milestones, Ceramic, Glass and so on
♦ It can also used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panel furniture, office furniture,instrument industry, and so on.

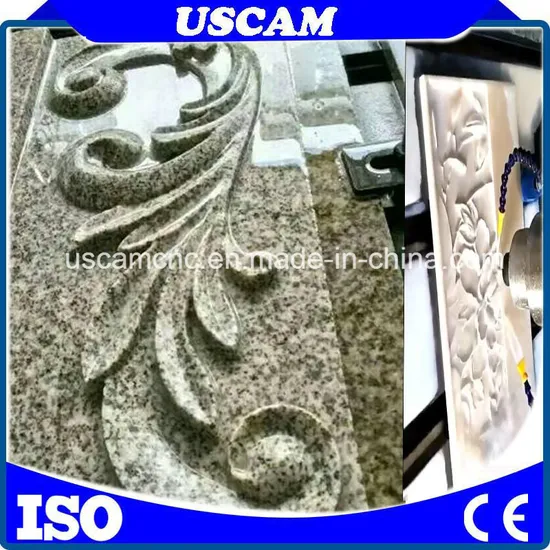

Samples of this machine
Package and Delivery
1. Packed by standard plywood case, it has strong bearing strength.
2. When importing, the plywood case is with fumigation-free, the procedure is simple.
3. Delivery Detail: within 7-15 days after received your payment.
FAQ
Q1: How to get the most suitable model with competitive price?
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ? Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
Q2: How about the delivery time after ordered?
The delivery time is about one week after ordered it.
Q3: Does machine comes with software?
We offer ArtCAM or Type3 software with machine.
Our service
# 18 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
