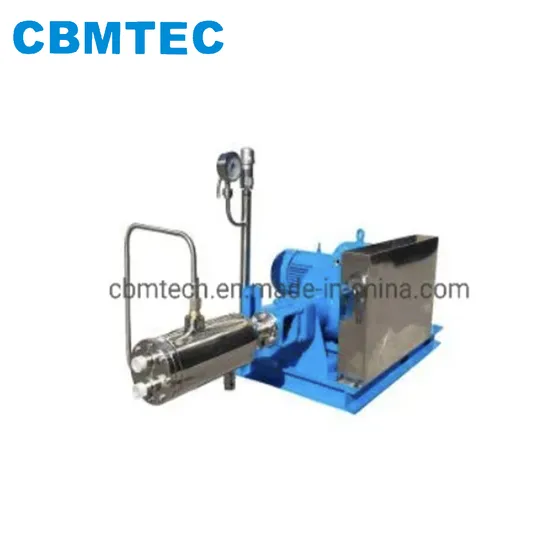

Good Quality 200bar Liquid Nitrogen Argon Oxygen Filling Pump CO2 Cryogenic Pumps

Product Description

L-CNG High Pressure Pumps
The new generation of reciprocating cryogenic liquid pump is elaborately designed and produced by our company, based on the latest technologies introduced from foreign countries. It is compatible for liquid oxygen, liquid nitrogen and liquid argon fill-up systems. The function of this pump is filling the liquid gas to the steel cylinder from gas tank. The stability of the equipment in long-running is guaranteed by the simplified and optimized design and elaborate manufacture.
L-CNG high pressure pumps common specifications:

Model	Cylinder number	Flow (L/h)	Inlet pressure (MPa)	Max out pressure (MPa)	Power (KW)	Size mm (DN)
						Inlet	Outlet	Air return
SBP-1000/250	1	1000	0.02-1.6	25	15	32	15	25
SBP-2000/250	2	2000	0.02-1.6	25	30	50	15	32
SBP-5000/250	3	5000	0.02-1.6	25	75	50	20	40

Optional Configuration:
Stationary motor/ frequency control
Safety valve/Cryogenic stop valve
Stationary motor /frequency control
Back temperature interlocking device
Air outlet temperature interlocking device
Air outlet pressure interlocking device
Transmission case oil temperature interlocking
PLC control system
Supply of skid
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Carts/Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have: -1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;-7)Exporting experience: We have over 5 years' experience for exporting.*NOTES: -a). Various types of seamless steel/aluminum gas cylinders,cylinder valves & flowmeter regulators can be optional; -b).We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved Acetylene Cylinders(2L~60L),as well as cylinder regulators & cylinder carts.
Anyway,should you have any intersts or some more info needed on our cylinder carts, medical/industrial gas cylinders & allied gas items(gas cylinder valves,gas cylinder regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime
