CA42 Dipped Tantalum Capacitors &CA45 SMD Tantalum Capacitors
Elecsound is the leading manufacturer of tantalum capacitors, we offer very high quality for dipped type and SMD type tantalum capacitors.

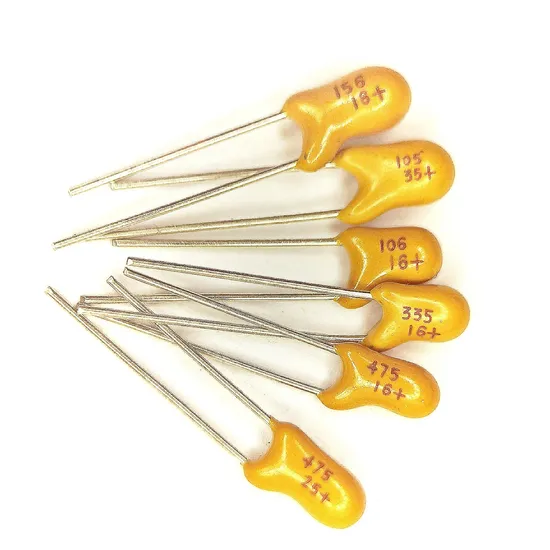

CA42 Dipped Tantalum Capacitors
Small units with high stable performance
Lower current leakage and dissipation factor
Stable frequency, temperature and long life
Suitable for equipments, computer, telephone
Meeting IEC384-15-3 and GB7215-87 standard
Rohs Compliant
Operating temperature: -55 ~125ºC
Capacitance Tolerance:±20% ,±10%,±5%
Capacitance Range: 0.1μF~330μF
DC leakage current(20ºC) I0 ≤0.02CRUR or 1μA
Life test: 1000 hours.

CA42 Exterior And Dimension
Case Size	D(MAX)	H(MAX)	L(±1)	d(±0.05)
A	4	6	14	0.5
B	4.8	7.2	14	0.5
C	5.5	8	14	0.5
D	6	9.4	14	0.5
E	7.2	11.5	14	0.5
F	8.2	12.5	14	0.5

Cap.(uF)	CODE	Rated voltage (V)
		4	6.3	10	16	25(20)	35	50
0.1	104						A	A
0.15	154						A	A
0.22	224						A	A
0.33	334						A	A
0.47	474						A	A
0.68	684						A	A
1	105				A	A	A	B
1.5	155				A	A	A	C
2.2	225			A	A	A	B	C
3.3	335		A	A	A	B	B	D
4.7	475	A	A	A	B	B	C	D
6.8	685	A	A	B	B	C	D	E
10	106	A	B	B	B	C	D	E
15	156	A	B	C	C	D	E	F
22	226	B	C	C	C	D	E	F
33	336	B	C	D	D	E	F
47	476	C	D	D	D	E	F
68	686	D	D	D	E	F
100	107	D	E	E	E	F
150	157	E	E	E	F
220	227	E	E	F	F
330	337	F	F

CA45 Chip Tantalum Capacitors
Surface mount technology
A, B, C, D, E, P six case available
Chip tantalum capacitors have lower ESR
Compatible with automatic pick and place equipment
Suitable for equipment and computer ,mobile phone
Rohs Compliant
Operating temperature: -55 ~125ºC
Capacitance Tolerance:±20% ,±10%%
Capacitance Range: 0.1μF~470μF
DC leakage current(20ºC) I0 ≤0.01CRUR or 0.05μA
Life test: 2000 hours.
Voltage Rating:4V~50V

CA45 Exterior And Dimension
CASE	EIA / IECQ	L	W	H	P	Tw
P	2012	2.0±0.2	1.2±0.2	1.2±0.2	0.5±0.3	1.2±0.1
A	3216	3.2±0.2	1.6±0.2	1.6±0.2	0.8±0.3	1.2±0.1
B	3528	3.5±0.2	2.8±0.2	1.9±0.2	0.8±0.3	2.2±0.1
C	6032	6.0±0.3	3.2±0.3	2.5±0.3	1.3±0.3	2.2±0.1
D	7343	7.3±0.3	4.3±0.3	2.8±0.3	1.3±0.3	2.4±0.1
E	7343	7.3±0.3	4.3±0.3	4.0±0.3	1.3±0.3	2.4±0.1

Cap.(uF)	Rated voltage (V)
	CODE	4(G)	6.3(J)	10(A)	16(C)	20(D)	25(E)	35(V)	50(T)
0.1	104							A	A
0.15	154							A	A
0.22	224							A	A
0.33	334							A	B
0.47	474					P	A	A	A/B/C
0.68	684				P	P/A	A	A	B/C
1	105		P	P	P/A	A	A	A/B	B/C
1.5	155		P/A	P/A	P/A	A	A/B	B/C	C/D
2.2	225	P/A	P/A	P/A	P/A/B	A/B	A/B	B/C	C/D
3.3	335	P/A	P/A	P/A	P/A/B	A/B	A/B/C	C	C/D
4.7	475	A	P/A	P/A/B	A/B	A/B/C	B/C	C/D	D
6.8	685	A	A/B	A/B	A/B/C	A/B/C	B/C	C/D	D
10	106	A	A/B	A/B/C	A/B/C	B/C	B/C/D	C/D/E	D/E
15	156	A	A/B	A/B/C	B/C	B/C/D	C/D	D/E	E
22	226	A	A/B/C	A/B/C	B/C/D	C/D	C/D	D/E
33	336	A/B	A/B/C	B/C/D	C/D	C/D	D/E	E
47	476	A/B	A/B/C/D	B/C/D	C/D	D/E	D/E	E
68	686	B/C	B/C/D	C/D	C/D	D/E	E
100	107	B/C	B/C/D	C/D/E	D/E	E	E
150	157	C	B/C/D	D/E	D/E
220	227	C/D	C/D	D/E	E
330	337	D/E	D/E	E	E
470	477	D/E	D/E	E

Tantlum capacitors ESR
Rated Voltage (V)
	4	6.3	10	16	20	25	35	50
Capacitance with ESR (Standard / Extended) (uF)
0.1					25		24	22
0.15					25		21	17.0/15.0
0.22					25		18	14
0.33					25		15	12
0.47				25	25	14	10/12	8
0.68			30	25	12/25	10	8	7
1		14/25	12/25	11/20	9	7/8	6.5	5.5
1.5	30	12/25	10.0/25	8.0/12.0	5/6.5	5	4.5/5.2	4.0/4.5
2.2	25	9/20	7.0/15	5.5/6.5	3.5/5.3	4.5	3.5	2.5
3.3	9/20	7.0/12	5.5/10	4.5/5.0	2.5/3.0	2.8	2.0/2.5	2
4.7	7.5/10	6.0/7.0	4/5	3.5/4	2.5/2.8	2.4	1.5/2.2	1.4
6.8	6.5/7.0	4/5	3/4	2.5/3.5	1.8/2.0	1.4/2.0	1.3
10	4/6	3/4	20./3.0	2.0/2.8	1.3	1.2/1.8	1
15	3.5/4	3.3/4.0	2.2/2.8	1.8	1.1	1	0.9
22	3.2/3.5	2.5/3.5	1.8/2.4	1.1/1.6	0.9	0.9	0.9
33	2.2/2.8	1.8/2.0	1.1/1.6	0.9/1.5	0.9	0.9	0.9
47	1.8/2.2	1.6/2.0	0.9/1.2	0.9/1.4	0.9/0.9	0.9	0.9
68	1.1/1.6	0.9/1.6	0.9	0.9	0.9	0.9	0.9
100	0.9/1.3	0.9/1.4	0.9	0.9	0.9	0.9	0.9
150	0.9	0.9	0.9	0.9
220	0.9	0.9	0.9	0.9
330	0.9	0.9	0.9
470	0.9	0.9	0.9
Special Low ESR available
