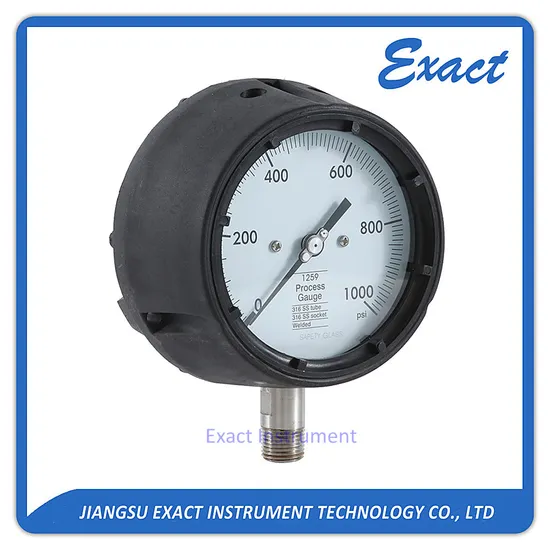

4-1/2" Phenolic Resin Case Process Gauge 316stainless or Monel Connection 0.5% Accuracy
| US$36.50-125.50 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
119
Measuring Range
Medium-pressure Gauge
Type
General Pressure Gauge
Accuracy
1
Display
Pointer
Application
Industrial, Civil
Structure
Spring Pressure Gauge
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
Corrosion Resistant
Indicating Pressure Reference
General Pressure Gauge
Case Materials
Polypropylene
Internal Materials
Stainless Steel
Mount Type
Bottom
Dial Size
4.5"
Warrenty
1year
Transport Package
Box and Carton
Specification
0.8KG
Trademark
OEM or EXACT
Origin
Anhui
HS Code
9026209090
Production Capacity
500PCS/Day
Product Description
Introducing our robust and highly reliable process pressure gauge, designed to provide precise measurements in challenging industrial environments.| Normal Size: | 4.5"(115mm) |
| Pressure Range: | -1Bar(-30"Hg)-0-1000Bar(15000Psi) |
| Accuracy: | 0.5% |
| Operating temperature: | -40°C to +60°C |
| Case: | Phenolic Resin Material |
| Bezel: | Phenolic Resin Material |
| Bourdon tube: | 316 Stainless steel |
| <100Bar: C-Type | |
| ≥100Bar: Helical Type | |
| Connection: | 316Stainless steel Or Monel |
| Movement: | Stainless steel |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Safety Glass |
| Thread: | 1/4", 3/8",1/2"; |
| PT(BSPT,ZG),BSP(G,PF),NPT etc. | |
| Liquid: | Glycerin or Silicone |
| Gaskets Filling cap: | Nitrile or Silica gel |
FAQ: Your Essential Guide to Our Offerings Q: Can you supply the OEM services?
A: Absolutely! We are pleased to accommodate OEM services tailored to your needs.
Q: Are you able to develop customized solutions for non-standard applications?
A: Yes, indeed! Our expert R&D team is dedicated to innovating bespoke solutions to meet your unique specifications.
Q: Do you have technical drawings or data sheets of your instruments?
A: Certainly, we provide comprehensive technical drawings and data sheets upon request. Please feel free to contact our sales team for assistance.
Q: What about the MOQ?
A: The minimum order value is $1000 USD. However, we are open to negotiating smaller orders.
Q: How about the delivery time?
A: Delivery timelines range from 7 to 45 days, contingent upon the product type and order volume.
Q: Do you check the products before shipment?
A: Absolutely, we ensure that every product undergoes rigorous 100% inspection before shipment.
Q: What is the warranty policy?
A: We offer a comprehensive 1-year warranty to guarantee your satisfaction.
