RBL Concrete Reinforcement Locator/Concrete Steel Detector

Product Description

Product Description

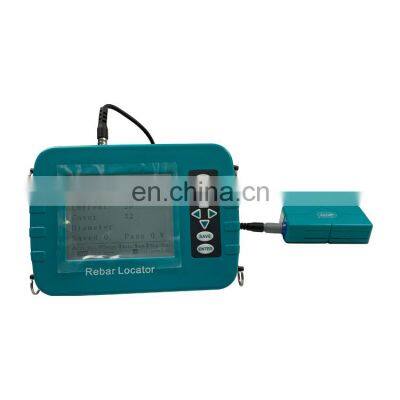

RBL Scanning Reinforcement Protection Layer TesterProduct DescriptionThe Rebar locator is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of steel bars on the concrete surface and detect the thickness of the protective layer of the steel bars and the diameter of the steel bars; ln addition, the position of magnets andconductors in concrete structures can also be detected, such as cables and plumbing pipes inside walls. The detection before construction can effectively avoid damage to these facilities and reduce accidents.ParametersProduct modelRBLApplicable range of protective layer thickness(mm)∅6mm~∅50mmFirst range6mm-90mmSecond range6mm-200mmMaximum allowable error of second range protective layer thickness±1(mm)6-80mm±2(mm)81-119mm±4(mm)120-200mmApplicable scope of diameter estimation∅6mm~∅32mmMaximum error of diameter indication±1 specificationsSection gridNot supportStorage quantity2000 components*1000 measuring pointsData transmission modeUSB, Wireless clod transport()optionsPower supply modeLithium batteryHost parametersWaterproof parameters:IP65Screen size: 5 inchesResolving power: 320x240Volume: 195x140x45mmWeight: 0.8kgPowder supplyLarge capacity lithium battery for more than 12 hoursWorking environment requirementsTemperature:-10℃~40℃Humidity: ＜90%RHHumidity: ＜90%RHOther requirementsThere is no corrosive gas in the air, No strong electromagnetic interface There should be no major shocks or shocks instruments to avoid direct sunlightPacking SpecificationMaterial:Engineering plastics Volume: 420x140x335mm Weight: 5.5kgMain Features1.Upgraded wireless cloud transmission function;2.Adopt three anti-shell design, waterproof, dust-proof and shock-proof;3.Large screen high resolution LCD screen, the interface has Chinese prompts, more intuitive display content;4.Built-in large capacity memory card, storage capacity upgrade;5.USB transmission simulates the host computer as a U disk and reads data as easily as a U disk.6.Real-time display of protective layer thickness and steel signal image, minimum automatic locking;7.Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth;8.Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work;9.Professional data analysis software, so that your post-processing data and report generation work can be easily completed.ApplicationContact USCangzhou Lovely Group Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?get our in-time reply via email or telephone or instant messenger;get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; easily make the payment via West Union, Paypal, T/T for small value order;
