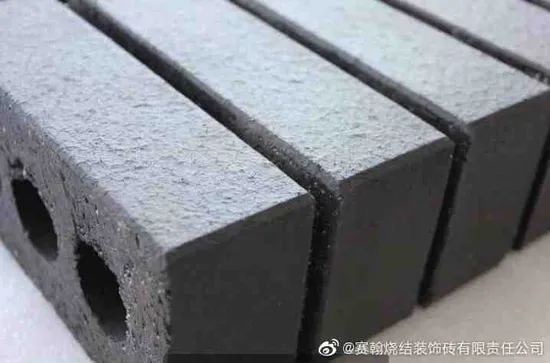

Sinter Durable Sintered Brick High-Quality Durable Sinter Eco-Friendly Sintered Versatile Sintered Brick

Product Description

Product Description

Weight	1.8kg	Material	clay
porosity	90%	Special functions	fireproof
Compressive strength	1200(Mpa)	Size	20*100*5

Inspection report

Number:X12403067

Serial Number

Inspection items

Standard requirements

Inspection results

Single conclusion

Inspection basis

1

Allowable size deviation, mm

Sample mean deviation

long wide high

±2.5 ±2.0 ±1.5

+1.1 +0.8 +1.0

qualified

GB/T13544-2011 6.1 GB/T2542-2012 4

sample range

long wide high

≤8.0 ≤7.0 ≤6.0

2.0 3.0 2.0

2

Appearance quality, block

The number of non-conforming products allowed in one sampling of appearance quality≤7

1

qualified

GB/T2542-2012 5

3

Density Grade

Density,kg/m³

1100~1200

1180

1200 level qualified

GB/T2542-2012 9

4

Strength Grade

compressive strength, MPa

average value

≥15.0

16.6

MU15 qualified

GB/T2542-2012 7

Standard value

≥10.0

14.1

5

Pore structure and porosity

pass

Rectangular strip hole or rectangular hole

Rectangular hole

qualified

GB/T2542-2012 13

Hole size, mm

Hole width dimension

≤13

11

Hole length dimension

≤40

28

Minimum outer wall thickness,mm

≥12

13

Minimum rib thickness,mm

≥5

7

porosity,%

≥28

32

Hole arrangement

1. All hole widths should be equal, and the holes should be arranged in a unidirectional or bidirectional staggered manner 2. The arrangement of holes should be symmetrical vertically and horizontally, evenly distributed, and the length dimension of the hand held holes must be parallel to the surface of the brick

meet a requirement

6

scum

Each brick or block is not allowed to have severe frosting

Slight frosting

qualified

GB/T2542-2012 11

7

lime blowing

1. For explosive areas with a size greater than 2mm and less than or equal to 15mm, each group of bricks and blocks shall not exceed 15 locations, with no more than 7 locations exceeding 10mm 2. Explosive areas with a damage size greater than 15mm are not allowed to occur

Destroy 10 explosive areas with a size of 2mm~10mm.

qualified

GB/T2542-2012 10

number:X12403067

Serial Number

Inspection items

Standard requirements

Inspection results

Single conclusion

Inspection basis

8

Weathering resistance performance

5-hour boiling water absorption rate,%

average value

≤21

19

qualified

GB/T2542-2012 12

Maximum value

≤23

21

Saturation coefficient

average value

≤0.78

0.72

Maximum value

≤0.80

0.75

9

Underfired bricks (blocks) and crispy bricks (blocks), blocks

Insufficient fire bricks (blocks) and crispy bricks (blocks) are not allowed

0

qualified

GB/T13544-2011 6.8 GB/T2542-2012 5

10

Radioactive nuclide limit

internal exposure index Ir

≤1.0

0.4

The main building materials are qualified

GB6566-2010

external exposure index I

≤1.3

0.8

Company Profile
Embark on a journey through innovation with Saihan Clay Brick International Trading Co., Ltd., a distinguished leader in the realm of high-quality construction materials. At the heart of our offerings is a diverse range of products that cater to every architectural demand. Delve into our sophisticated collection including retail of premium wall tiles, and experience the pinnacle of research and development in our sintered water wall bricks, which offer not only strength but also aesthetic appeal. Explore our sintered road square bricks, famed for their durability and elegance, and discover our cutting-edge sintered ceramic curtain wall hanging plates, designed to merge beauty with functionality. Our product portfolio extends to include gorgeously crafted sintered ceramic and glazed tiles, and the versatile coal gangue shale sintered porous bricks, hollow blocks, and concrete cement square bricks, ideal for robust constructions. Step into the world of natural granite stone processing, and let your projects shine with our architectural and artistic ceramic creations. Engage in our import and export trade of impeccable ceramic and sintered wall and floor tiles, and witness the superior craftsmanship of our wood processing division offering exquisite wooden doors, windows, stairs, and floors. When passion meets innovation, business activities thrive-strictly adhering to legal approvals for unrivaled excellence.
Packaging & Shipping
FAQ
Q1. Are you Manufacturer?
A:Yes, of course, our factory is in Xinmi,zhengzhou city,Henan province. Q2.Can we visit your company?
A:Sure,welcome at any time,seeing is believing.
Q3. Do you accept OEM?
A:Yes, we can do OEM.
Q4.What's the MOQ of trial order?
A:No limit,We can offer the best suggestions and solutions according to your condition.
Q5.What are the payment terms?
A:Usually T/T,but L/C,Western Union etc are available for us.
Q6. How long is delivery time?
A:The delivery time will be determined according to the quantity of the order.
Q7.How are your products' quality?
A:The products will be strictly inspected before shipment, so the quality could be guaranteed. Any interest, pls contact with us freely!
