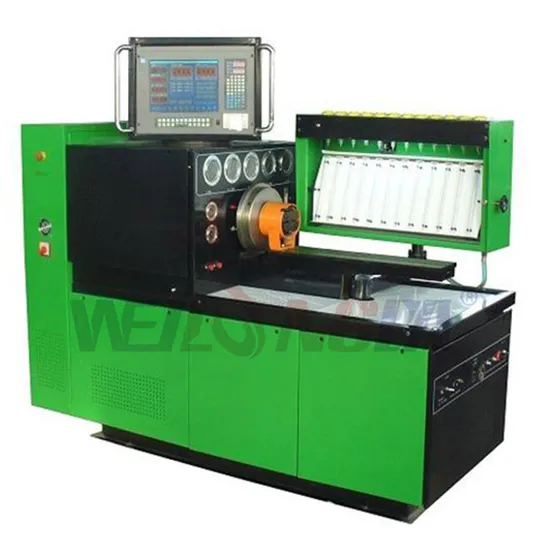

Wld-12psb Diesel Injection Pump Test Bench
| US$5,500.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WLD-12PSB
Testing Equipment Type
Test Bench
Certification
CE
Update Method
No
Condition
New
Standard
Standard
Main Motor Output Power
7.5/11/15/18.5kw
Frequency Converter
Qidian/Wanli
Stroke Counting
50-9999rpm
Standard Injectors
Zs12sj1
Power of Fuel Pump Motor
0.75kw
Scope of Rotate Speed
0~4000r/M
Number of Cylinders
12
Height of Principal Axis Center
125mm
Filter Oil Precision of Test Bench
4.5~5.5μ
Vol. of Big & Small Volumetric Cylinder
150 45ml
Volume of Fuel Tank
40L
DC Power Supply
12/24V
Low Pressure of Fuel Oil Pressure
0-0.4MPa
High Pressure of Fuel Oil Pressure
0-4MPa
Pressure Gauge for Ve Pump
0-1.6MPa
Transport Package
Wooden Box
Specification
Standard
Trademark
WLD
Origin
China
HS Code
9031809090
Production Capacity
1000 Sets/ Year
Product Description
Main function1. Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.
10. Checking the sealing of injection pump body
Characteristics
1. Changing frequency changing rotational speed
2. Low fall of rotational speed and high output torque
3. High measurement precision;
4. The functions of over voltage, overload and short circuit protection;
5. Ten classes Rotation speeds presetting;
6. Constant temperature controlled;
7. Ultra low noise;
8. Operating position: arbitrary side of the two work sides of the test stand;
9. Rotation speed, count, temperature, air pressure digital display.
10. Built-in air resource;
Technical Parameters
| Specifications | ||
| No. | Items | Data |
| 1 | Main motor output power(kw) | 7.5/11/15/18.5KW |
| 2 | Frequency Converter | QIDIAN/WANLI |
| 3 | Stroke Counting (Rpm) | 50-9999 |
| 4 | Standard injectors | ZS12SJ1 |
| 5 | Power of fuel pump motor (kw) | 0.75 |
| 6 | Scope of rotate speed (r/m) | 0~4000 |
| 7 | Number of cylinders | 12 |
| 8 | Height of principal axis center (mm) | 125 |
| 9 | Filter oil precision of test bench(μ) | 4.5~5.5 |
| 10 | Volume of big and small volumetric cylinder(ml) | 150 45 |
| 11 | Volume of fuel tank(L) | 40 |
| 12 | DC power supply | 12/24V |
| 13 | Low pressure of fuel oil pressure(Mpa) | 0~0.4 |
| 14 | High pressure of fuel oil pressure(Mpa) | 0~4 |
| 15 | Pressure Gauge for VE Pump (Mpa) | 0-1.6 |
| 16 | Pressure Gauge for VE Pump (Mpa) | 0-0.16 |
| 17 | Control temperature of fuel (ºC) | 40±2 |
| 18 | Flywheel inertia(kg*m) | 0.8~0.9 |
| 19 | Scope of rack bar stroke(mm) | 0~25 |
| 20 | Measuring range of flow meter(L/m) | 10~100 |
| 21 | DC electrical source(V) | 12 24 |
| 22 | Positive pressure of air supply(Mpa) | 0~0.3 |
| 23 | Negative pressure of air supply(Mpa) | -0.03~0 |
| 24 | Dimension of Packing ( L*W*H(m )) | 2.14*1.1*1.82 |
| 25 | Gross weight of Test bench( kg) | 800 |
