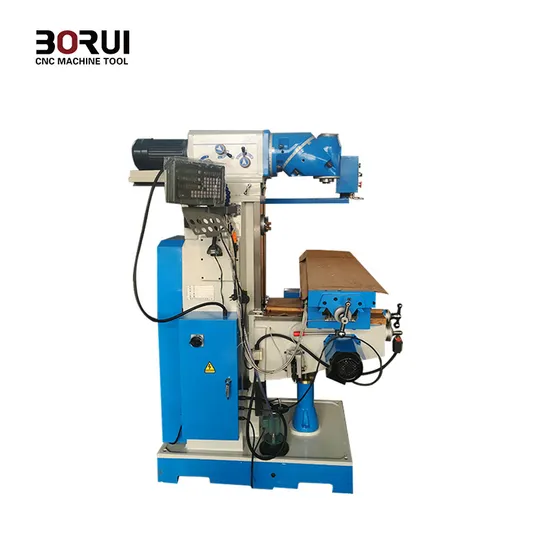

Universal Swivel Head High Precision Milling Machine (XQ6232)

Product Description

Universal swivel head high precision milling machine (XQ6232 )
Product Application
XQ6232 universal swivel head milling machine,universal machine belonging to light.
The machine can double as Vertical & Horizontal,with appropriate accessories,but also the processing of various helical surface,grooves and so on.Two type turret,spindle rotation and can be adjusted at any angle,a fixture can complete the processing of complex multi faceted polygonal parts.Widely used in machining,tooling,automotive, motorcycle and other industries.
The main specification :

Items	Unit	XQ6232
Max. vertical milling dia.	mm	25
Max. end milling width	mm	125
Spindle taper		7:24 ISO40
Distance from spindle nose to table surface	mm	100-480
Distance from spindle axis to guideway of column	mm/min	100-500
Spindle speed range	r.p.m	45-1660
Swivel angle of vertical milling head		360°
Table size	mm	1370*320
Table travel(horizontal/cross/vertical)	mm	670*320*380
Auto-feeding range of longitudinal, cross travel	mm/min	22-555
T-slot(No./width/distance)	mm	3*14*70
Main motor power	kw	2.2
Motor for automatic feeding of table	w	750
Motor for vertical device of knee	w	750
Cooling pump motor power	w	40
Flow rate of cooling pump	L/min	12
Overall dimensions	mm	1655*1500*1730
N.W/G.W	kg	1520/1620

The main feature :
1.Headstock Swivels 360 Degrees
2.Vertical and Horizontal Milling
3.Automatic Feeds on X,Y axis, Motorized Lifting and Falling of Table on Z Axis
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
4.Dovetail Table Guideways Withstand Larger Overturning Moment
5.Gear Drive Vertical & Horizontal Milling Head
6.Easy Operation
7.CE, ISO certificated
Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
