KGS150-150X450mm Manual Small Surface Grinding Machine
| US$3,000.00-3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KGS150
Abrasives
Grinding Wheel
Controlling Mode
Manual
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Working Surface of Table
150X450mm
Max.Table Load
100 Kg
Grinding Wheel Dimensions
180X13X32/31.75mm
Table Speed
Manual
Vertical Handwheel
0.005mm/Gard
Cross Feed Handwheel
0.01/Gard
Spindle Motor
1.1kw
Spindle Speed
2850 Rpm-50Hz 3420rpm-60Hz
Max.Table Travel
480mm
Max.Cross Travel
165mm
Transport Package
Non-Fumigation Plywood Case
Specification
1100x1020x1945mm, 710kg
Trademark
Kaite
Origin
China
HS Code
8460191000
Production Capacity
80 Sets/Month
Product Description

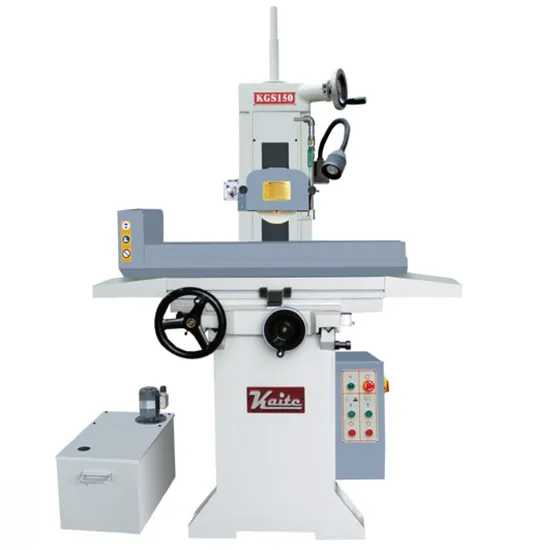

1. Picture2. Parameters
| Parameters | Unit | KGS150 | |
| Working Surface of Table | mm | 150×450 (5.9"×17.7") | |
| Max.Table Travel | mm | 480 | |
| Max.Cross Travel | mm | 165 | |
| Distance Between Table Surface and Spindle Center | mm | 360 | |
| Max.Table Load | kgs | 100 | |
| T-Solt(Number×Width) | mm | 1×14 | |
| Table Speed | m/min | Manual | |
| Crossfeed Handwheel | 1gard | mm | 0.01 |
| 1 rev | 2.5 | ||
| Automatic Crossfeed of Saddle | mm | - | |
| Power Cross Feed | 50HZ | mm/min | - |
| 60HZ | - | ||
| Grinding Wheel Dimensions | mm | 180×13×32/31.75 | |
| Spindle Speed | 50HZ | rpm | 2850 |
| 60HZ | 3420 | ||
| Vertical Handwheel | 1gard | mm | 0.005 |
| 1 rev | 1.25 | ||
| Automatic Down Feed Rate | mm | - | |
| Power Head Increment | mm/min | - | |
| Spindle Motor | kw | 1.1 | |
| Vertical Motor | w | - | |
| Hydraulic Motor | kw | - | |
| Dust Collection Motor | w | 550 | |
| Coolant Motor | w | 90 | |
| Crossfeed Motor | w | - | |
| Floor Space | mm | 1900×1300 | |
| Packing Dimensions | mm | 1100×1020×1950 | |
| Net Weight | kgs | 620 | |
| Gross Weight | kgs | 710 | |
3. Main Configuration of Grinding Machine
1. Spindle motor: ABB brand.
2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.
3. Main electrical components: SIEMENS brand.
4. Standard Accessories
| 1 | Grinding wheel | 2 | Wheel flange |
| 3 | Wheel balancing base | 4 | Wheel balancing arbor |
| 5 | Extractor | 6 | Diamond dresser |
| 7 | Leveling pad | 8 | Anchor bolt |
| 9 | Tool box with tools | 10 | Permanent magnetic chuck |
| 11 | Cooling system | 12 | Work light |
5. Feature
Table ways use hardened steel linear rails with precision balls for smooth and effortless hand feed. These reliable machines are low maintenance and easy to operate.
6. Company & Factory
Nantong Kaite Machine Tool Co., Ltd.
A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC.
KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.
KAITE supply the USA quality machines and with China price.
KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!
