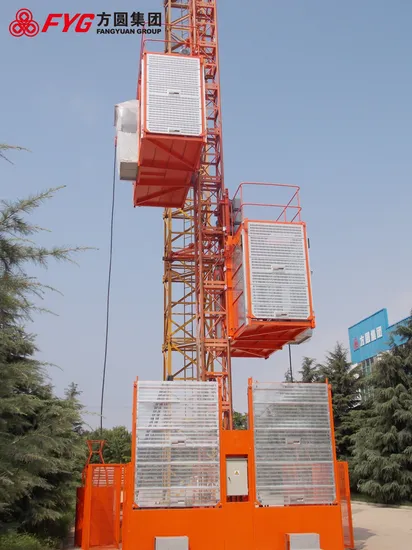

Advanced Construction Materials Elevator Double Cage 2000kg

Product Description

ency conversion control Construction self erecting tower crane frequency conversion control Construction self erecting tower crane safe and reliable engineering construction tower crane smooth running Construction self erecting tower crane
small hoist SCD200/200 Builder Hoist construction hoist construction elevator building hoist

Technical parameters		Unit	SC200/200 Construction hoists
Height		m	300
Rated load		kg	2000/2000
Maximum capacity			9/9
Boom lift wweight		kg	≤200
Lifting speed		m/min	33
Electormotor	Model		YZEJ132M-4
	Power	kw	11*2/11*2
Speed-limiter	Model		SAJ30-1.2
	Rated tripping speed	m/s	1.2
	Standard motion speed	m/s	0.95
	Rated automaticload	KN	30
	Type		gradual
Reducer	Model		SWC1 TU65
	Center distance	mm	125
	Speed radio		1:16
	Bracking distance	m	0.3-1.2
Mast section dimension		mm	650×650×1508
Crane cage inner net dimension		m	3.0×1.3×2.2 3.2×1.5×2.2
Guardrail dimension		m	5.53×3.42×1.82 5.93×3.62×1.82
Hoistway dimensions		m
Free end height of the guide rail frame		m	≤9
Gounterweight weight		kg	≈1000
Direct attached frame	Installing interval	m/set	6-9
	Distance between two embedded parts	mm	≈1488
	Installation dimensions from center of rail frame to building wall	mm	2800-3200
Safe and protection system		Upper and below limited switches,upper and below limit utmost switches,gate limited switch,falling avoiding safe device,cushion device,safe lock of gate,counterweight rope breaking or loose protecting device,safe hook,The safety device against overload,Anti-punching standard section etc.

small hoist SCD200/200 Builder Hoist construction hoist construction elevator building hoist
construction tower crane smooth running Construction self erecting tower crane
- - · FAQ · - -

1. Why choose us?
We are professional manufacture both for machine and spare parts since 1970. Additional to that, we also can equipped the spare parts according to customer's requirement.
2. Do you accept special orders?
A: Special order is also available because we are the factory with design and manufacturing department.
3. What is the real delivery time of your factory?
A: 10 to 20 days for general series products, but special orders will need 30 or more days based on different situations and products.
4.How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of tower crane for most of our customers at home or abroad.
With our experienced quality control team, we are trying to offer most of our customers the product with best quality. Meanwhile, each of our products will passed the quality test before delivery.
5. What is the max. capacity of the tower crane?
PT series : 2T 6T 10T 16T 18T
TC series: 3T 4T 5T 6T 8T 10T 12T 16T
6. Where can we buy the machine's parts?
A: Generally, when delivery, we send customers some wearable spare parts for free for urgent requirement.We also have our spare parts warehouse,customer can confirm with us which parts are needed.
