Automatic Lift Pneumatic Agitator Mixer Machine/Movable Structure

Product Description

Automatic Lift Pneumatic Agitator Mixer Machine/Movable Structure Description: This Movable Pneumatic Lifting Homogenizer is a high efficient equipment for mixing liquid and solid powder with different viscosity at low and high speed, dispersing, dissolving and mixing at high speed. It is pneumatic lifting, easy to operate, flexible to move, low noise and stable operation. Lifting up and down the homogenizer adopt s pneumatic drive..
Technical Parameters:

Item:	Pneumatic lifting homogenizer mixer
Homogenizer speed:	0-3000RPM
Lifting high:	900MM
Air pressure:	0.4-0.6Mpa
Motor Brand:	4Kw Siemens motor
Working capacity:	50-500L (Depend on product viscosity)
Working temperature:	Room temperature 5-60oC
Frequency control:	Taiwan Delta converter
Packing details:	Plywood case packing
Material:	Contact part with product made by food grade SS304, machine frame made by stainless steel
Overall dimension(mm):	1100×1100×2200
Machine weight(kg):	150Kg

Application:
1. Daily Chemical & Cosmetics Industry:
Such as baby cream, skin cream, face cream, shaving cream, shaving cream, lotion, shampoo, toothpaste, cold cream, sunscreen cream,face cleanser, moisture cream, liquid soap etc;
2. Food Industry:
Sauce, mayonnaise, juice, cheese, oral, nutrition, infant food, chocolate, sugar , tomato paste etc;
3. Pharmacy Industry:
Paste, ointment, Latex, emulsions, salves (ointments), oral syrup, liquid. etc;
4. Chemical Industry:
Latex, saponification products, paints, coatings, resins, adhesives, lubricants and the like.

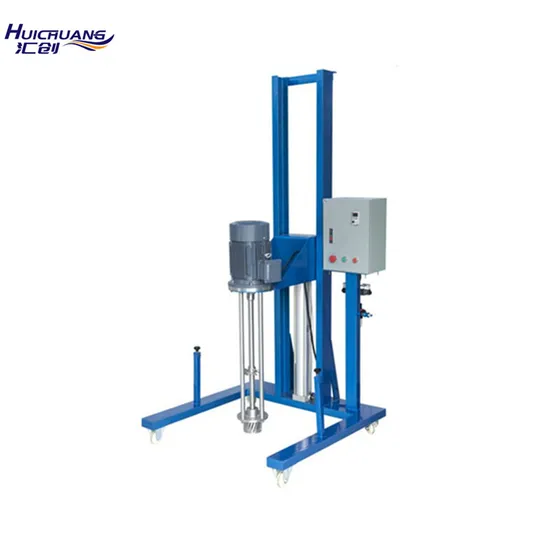

Machine Image:
GMP PROJECT:
Company information:
FAQ: 1. Q: How about the after sales service for pneumatic lifting homogenizer Machine?
A: We provide 2 years warranty for large equipment like full automatic pneumatic lifting Homogenizer Machine line. provide 1 year for small pneumatic lifting Homogenizer Machine, such as small batch Cosmetic Cream Homogenizer Machine series. Machine guaranty and technical support lifetime for all kind of Machine. All machine's parts can be replaced for free within the warranty period if broken (excluding error operation).
2. Q: Is it difficult to install the pneumatic lifting Homogenizer Machine?
A: The work shop should prepare full facility such as power and air compressor. For the first installation, engineer will be sent to set machine and do the machine training as long as manual instruction. For the further problems come out, we will provide solution video/photo instruction as well.
3. Q: What's the pneumatic lifting Homogenizer Machine lead time?
A: For the standard machines, we can delivery within 35 days. If it is customized by customer(OEM), the lead time is 40-50 days.
4. Q: How can you control the quality?
A: We have a responsible QC department that strictly controls quality, all of our machines will be tested during production process, and will be tested again before packaging. wooden packaging is strong and safety for long delivery.
5. Please feel free to contact us with any question. We will provide you with one-stop service
Our Services:
1) Provide 24-hour service hotline for pneumatic lifting Homogenizer Machine.
2) Reply and find out solution within the shortest time according to customer's requirement.
3) Provide on call service to help customer solve problems.
4) Provide free of machine installation as well as commissioning, and inform customer how to do the machine maintenance.
5) Prepare customer's feedback tracking within one week after machine installation until meet customer's satisfaction.
6) Provide one year guaranty and lifetime maintenance.
7) One-stop service for workshop decoration, selecting machines and installation service etc.
