China Uni-T 805A Auto Range Mini Desktop Digital Multimeters Price
| US$120.00-350.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UT805A
Installation
Portable
Display Mode
Digital
Accuracy
±0.025%
Theory
Electronic Meter
Power Source
AC and DC
Connection Type
RS-232
Maximum Scale
19999
Range Conversion Type
AUTO/MAN RANGZ
Additional Measuring Item
Frequency
Display
LCD
Model
Ut805A
Power
AC 220V/50Hz
LCD Size
128mm × 28mm
Product Colour
Red and Grey
Product Net Weight
3.2 Kg
Product Size
300mm × 245mm × 105mm
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
4 PCS
Standard Carton Measurement
685mm×450mm×315mm
Item
Ut805A Digital Multimeter
Transport Package
Wooden Box with Foam Inside
Specification
CE/ISO/IEC
Trademark
HuaZheng
Origin
Hebei, China
HS Code
9030320000
Production Capacity
100 PCS/Month
Product Description
China Uni-t High Quality Auto Range Mini desktop Digital MultimetersI. Product Description

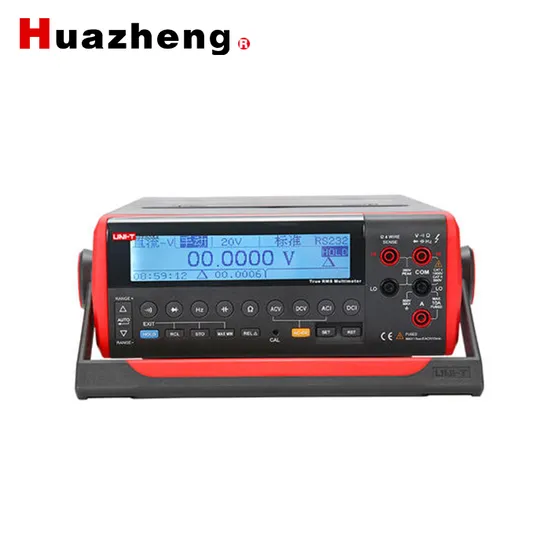

UT805A is a 200000 count digital bench-type multimeter designed with large-scale integrated analog/digital circuit, micro-processing technology, 24-bit A/D converter, operational amplifier, and True RMS display. UT805A is digitally calibrated to ensure high accuracy and reliability. It's capable to test DC/AC Voltage, current, resistance, diode, circuit continuity, capacitance, and frequency; the memory recall function makes all your tasks easier.
UT805A has RS232C and USB port for easy connection with computer to realize macro recording and monitoring of transient dynamic data.
UT805A complies with IEC61010 standard, CATI 1000V, CATII 600V.
II. Parameter
| Specifications | Range | Best Accuracy |
| Model | UT805A | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.015%+3) |
| AC Voltage (V) | 200mV/2V/20V/200V/750V | ±(0.2%+100) |
| DC Current (A) | 2mA/200mA/10A | ±(0.03%+10) |
| AC Current (A) | 2mA/200mA/10A | ±(0.3%+100) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.02%+6) |
| Capacitance (F) | 6nF/60nF/600nF/6μF/60μF/600μF/6mF | ±(2%+5) |
| Frequency (Hz) | 10Hz~60MHz | ±(0.1%+3) |
| Features | ||
| Display Count | 200000 | |
| Auto Range | √ | |
| True RMS | √ | |
| Bandwidth (Hz) | 100kHz | √ |
| Diode | √ | |
| Continuity Buzzer | √ | |
| Data Hold | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| Data Logging | 100 | |
| Data Recall | √ | |
| RS-232 | √ | |
| USB Interface | √ | |
| LCD Backlight | √ | |
| Dot-matrix Liqid Crystal Display | 256×64 Pixels | √ |
| Setup | √ | |
| Input Protection | √ | |
| Input Impedance for DCV | 2V Range: Around 10GΩ, All Other Ranges: Around 10MΩ | √ |
| Voltage &Current:AC+DC Measurement | √ | |
| General Characteristic | ||
| Power | AC 220V/50Hz | |
| LCD Size | 128mm × 28mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 3.2 Kg | |
| Product Size | 300mm × 245mm × 105mm | |
| Standard Accessories | Test Lead, AC 220V Power Cord, RS-232 Interface Cable, USB Interface Cable, PC Software CD, Alligator Clip, Multi-Purpose Socket, Test line | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 4 PCs | |
| Standard Carton Measurement | 685mm×450mm×315mm (0.097 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 19.2 Kg | |
III. Detailed Photos
IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
