Free Samples Fast Delivery 15 Years Exporting Spherical Roller Bearing (22328CA 22328CC 22328EK 22328CM 22328CCK)

Product Description

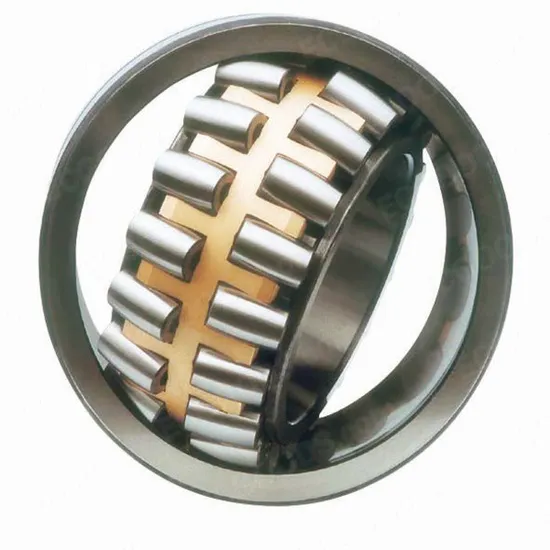

Gaoyuan Spherical Roller Bearing (22328CA 22328CM 22328K 22328ckm)
Gaoyuan Sperical Roller Bearing Oil field bearings, mainly include mud pump bearing, rotary bearing, faucet bearing, crane bearing mud bearing.
Complete product models, large stock, timely delivery, original quality, good price.
22328CA/C9
22328CM
22328K
23148MB
24056CA/W33C3
24060CA/W33C3
23176CA/W33
22334
22330MB
22322CA
etc
Gaoyuan Bearing supply bearings for mud pump F500,F800,F1000,F1300,F1600,3NB1600, ZP205,ZP205,ZP175,ZP275.
Gaoyuan Sperical Roller Bearing description: Spherical roller bearing is in the two races between inner ring and groove for the spherical outer ring, assembly cylindrical roller bearing. With two columns of the roller, mainly bear radial load, but also can carry axial load in either direction. Have high radial load capacity, especially suitable for overloading or under-vibration loading work, but it can't afford to pure axial load. This kind of bearing outer ring raceway is spherical in shape, so the self-aligning performance is good, which can compensate for the alignment error.
Has two columns symmetric spherical roller type, there is a share of the spherical raceway outer ring, the inner ring has two tilted to the bearing axis
The angle of the race, has a good heart performance when the axial stress bending or install different heart bearings can still be used normally, so vary with different bearing size series, generally allowed by the self-aligning Angle from 1 to 2.5 degrees, the type of bearing load capacity is larger, besides can bear radial load-bearing can withstand the axial load, the two-way role has good shock resistance, typically spherical roller bearing is allowed to work speed is low.
Self-aligning roller bearing press roller cross-section shape is divided into symmetric form spherical roller and asymmetric form spherical roller two kinds of different structure, asymmetric spherical roller bearings belong to the early products, primarily for the host service, a new design when the host is rarely chosen symmetric spherical roller bearing, the internal structure after comprehensive improvement design and parameter optimization, compared with the early production of spherical roller bearings, able to bear a greater axial load, the bearing operating temperature is low, so it can adapt to the requirement of high speed, according to the inner ring with or without rim and retainers used different could be divided into two kinds of type C and CA, C type bearing inner ring is the feature of no guard and USES the steel plate stamping cage, the CA model, Ryan bearing is on both sides of the inner ring has the characteristics of guard cage and used car system entities. In order to improve the bearing lubrication, can provide the user with an outer ring with a ring groove and oil hole of the three spherical roller bearing, expressed as a rear bearing code/W33. According to the requirement of the user can also supply with a spherical roller bearing inner ring oil hole, in order to facilitate customer handling and replace bearings, also can provide the inner hole of bearing, spherical roller bearing with taper cone hole taper 1:12 later nicknamed K said, in order to meet the user's special requirements are available within the hole taper bearings for 1:30, code-named K30 thereafter. The inner hole of the tapered bearing lock nut will be available bearing directly on the conical journal, also can with tight sleeves or withdrawal sets be installed on the cylindrical journal bearing.
Features: Spherical roller bearings can bear radial load, and at the same time can also carry axial load in either direction. Have high radial load capacity, especially suitable for overloading or under-vibration loading work, but can't afford to pure axial load. This kind of bearing outer ring raceway is spherical in shape, so the self-aligning performance is good, which can compensate for the alignment error.
Main applicable cage: Stamping steel reinforced cage (suffix E, domestic few). Stamping steel plate type cage (suffix CC), glass fiber enhanced polyamide 66 cages (suffix TVPB), machining of brass plate cage (suffix MB). Machined brass one-piece cage (suffix CA) stamping steel cage, vibration occasions (suffix JPA).Vibration occasions brass cage (suffix EMA).On the same structure, bearing code or have different.
Main use: Papermaking machinery, speed reducer, railway vehicle axle, gearbox bearing, rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, vertical arrange ushering self-aligning bearing, Major Applications
Our Spherical Roller Bearings are mainly used in below mentioned industrial areas and are successfully playing their role to grow the industry; Continuous Casting Machines
Mechanical Fans and Blowers
Gearbox and Pumps
Wind Turbines
Material Handling
Petroleum Machinery
Marine Propulsion and Offshore Drilling
Mining and Construction Equipment
Pulp and Paper Processing Equipment
Compressors
Threshers
Textile Machinery
Products Parameters
Although we provide the wide range products to our customers, but below is the list of '223' series for your information;

Bearing No.	Boundary dimensions(mm)			Basic load ratings(kN)		Limiting speeds(rpm)		Mass (kg)
	D	D	B	Cr	Cor	Grease	Oil	(Approx. )
22308	40	90	33	121	128	3, 800	5, 900	0.974
22308K	40	90	33	121	128	3, 800	5, 900	0.951
22324K	120	260	86	880	1120	1, 300	2, 000	21
22324KW33C3	120	260	86	880	1120	1, 300	2, 000	21
22324W33C3	120	260	86	880	1120	1, 300	2, 000	21.5
22326	130	280	93	1000	1290	1, 200	1, 800	26.8
22326K	130	280	93	1000	1290	1, 200	1, 800	26.2
22326KW33C3	130	280	93	1000	1290	1, 200	1, 800	26.2
22326W33C3	130	280	93	1000	1290	1, 200	1, 800	26.8
22328	140	300	102	1130	1460	1, 100	1, 700	33.8
22328K	140	300	102	1130	1460	1, 100	1, 700	33
22328KW33C3	140	300	102	1130	1460	1, 100	1, 700	33
22328W33C3	140	300	102	1130	1460	1, 100	1, 700	33.8
22330	150	320	108	1270	1750	1, 000	1, 600	42.7
22330K	150	320	108	1270	1750	1, 000	1, 600	41.8
22330KW33C3	150	320	108	1270	1750	1, 000	1, 600	41.8
22330W33C3	150	320	108	1270	1750	1, 000	1, 600	42.7
22332	160	340	114	1410	1990	940	1, 500	50.8
22332K	160	340	114	1410	1990	940	1, 500	49.7
22332KW33C3	160	340	114	1410	1990	940	1, 500	49.7
22332W33C3	160	340	114	1410	1990	940	1, 500	50.8
22334	170	360	120	1540	2180	880	1, 400	59.8
22334K	170	360	120	1540	2180	880	1, 400	58.5
22334KW33C3	170	360	120	1540	2180	880	1, 400	58.5
22334W33C3	170	360	120	1540	2180	880	1, 400	59.8
22336	180	380	126	1740	2560	830	1, 300	70
22336K	180	380	126	1740	2560	830	1, 300	68.5
22336KW33C3	180	380	126	1740	2560	830	1, 300	68.5
22336W33C3	180	380	126	1740	2560	830	1, 300	70
22338	190	400	132	1870	2790	780	1, 200	81
22338K	190	400	132	1870	2790	780	1, 200	79.3
22338KW33C3	190	400	132	1870	2790	780	1, 200	79.3
22338W33C3	190	400	132	1870	2790	780	1, 200	81
22340	200	420	138	2040	3050	740	1, 100	93.2
22340K	200	420	138	2040	3050	740	1, 100	91.2
22340KW33C3	200	420	138	2040	3050	740	1, 100	91.2
22340W33C3	200	420	138	2040	3050	740	1, 100	93.2
22344	220	460	145	2350	3500	660	1, 000	117
22344K	220	460	145	2350	3500	660	1, 000	115
22344KW33C3	220	460	145	2350	3500	660	1, 000	115
22344W33C3	220	460	145	2350	3500	660	1, 000	117
22348	240	500	155	2720	4100	600	930	148
22348K	240	500	155	2720	4100	600	930	145
22348KW33C3	240	500	155	2720	4100	600	930	145
22348W33C3	240	500	155	2720	4100	600	930	148
22352	260	540	165	3100	4750	550	850	183
22352K	260	540	165	3100	4750	550	850	179
22352KW33C3	260	540	165	3100	4750	550	850	179
22352W33C3	260	540	165	3100	4750	550	850	183
22356	280	580	175	3500	5350	500	780	224
22356K	280	580	175	3500	5350	500	780	220
22356KW33C3	280	580	175	3500	5350	500	780	220
22356W33C3	280	580	175	3500	5350	500	780	224
22360	300	620	185	3600	5400	470	720	270
22360K	300	620	185	3600	5400	470	720	265
22360KW33C3	300	620	185	3600	5400	470	720	265
22360W33C3	300	620	185	3600	5400	470	720	270
22308KW33C3	40	90	33	121	128	3, 800	5, 900	0.951
22308W33C3	40	90	33	121	128	3, 800	5, 900	0.974
22309	45	100	36	148	167	3, 400	5, 300	1.33
22309K	45	100	36	148	167	3, 400	5, 300	1.3
22309KW33C3	45	100	36	148	167	3, 400	5, 300	1.3
22309W33C3	45	100	36	148	167	3, 400	5, 300	1.33
22310	50	110	40	186	212	3, 100	4, 800	1.79
22310K	50	110	40	186	212	3, 100	4, 800	1.75
22310KW33C3	50	110	40	186	212	3, 100	4, 800	1.75
22310W33C3	50	110	40	186	212	3, 100	4, 800	1.79
22311	55	120	43	204	234	2, 800	4, 400	2.3
22311K	55	120	43	204	234	2, 800	4, 400	2.25
22311KW33C3	55	120	43	204	234	2, 800	4, 400	2.25
22311W33C3	55	120	43	204	234	2, 800	4, 400	2.3
22312	60	130	46	238	273	2, 600	4, 000	2.9
22312K	60	130	46	238	273	2, 600	4, 000	2.83
22312KW33C3	60	130	46	238	273	2, 600	4, 000	2.83
22312W33C3	60	130	46	238	273	2, 600	4, 000	2.9
22313	65	140	48	265	320	2, 400	3, 700	3.45
22313K	65	140	48	265	320	2, 400	3, 700	3.37
22313KW33C3	65	140	48	265	320	2, 400	3, 700	3.37
22313W33C3	65	140	48	265	320	2, 400	3, 700	3.45
22314	70	150	51	325	380	2, 300	3, 500	4.22
22314K	70	150	51	325	380	2, 300	3, 500	4.12
22314KW33C3	70	150	51	325	380	2, 300	3, 500	4.12
22314W33C3	70	150	51	325	380	2, 300	3, 500	4.22
22315	75	160	55	330	410	2, 100	3, 200	5.25
22315K	75	160	55	330	410	2, 100	3, 200	5.13
22315KW33C3	75	160	55	330	410	2, 100	3, 200	5.13
22315W33C3	75	160	55	330	410	2, 100	3, 200	5.25
22316	80	170	58	385	470	2, 000	3, 000	6.05
22316K	80	170	58	385	470	2, 000	3, 000	5.91
22316KW33C3	80	170	58	385	470	2, 000	3, 000	5.91
22316W33C3	80	170	58	385	470	2, 000	3, 000	6.05
22317	85	180	60	415	510	1, 900	2, 900	7.1
22317K	85	180	60	415	510	1, 900	2, 900	6.94
22317KW33C3	85	180	60	415	510	1, 900	2, 900	6.94
22317W33C3	85	180	60	415	510	1, 900	2, 900	7.1
22318	90	190	64	480	590	1, 800	2, 700	8.35
22318K	90	190	64	480	590	1, 800	2, 700	8.16
22318KW33C3	90	190	64	480	590	1, 800	2, 700	8.16
22318W33C3	90	190	64	480	590	1, 800	2, 700	8.35
22319	95	200	67	500	615	1, 600	2, 500	9.76
22319K	95	200	67	500	615	1, 600	2, 500	9.54
22319KW33C3	95	200	67	500	615	1, 600	2, 500	9.54
22319W33C3	95	200	67	500	615	1, 600	2, 500	9.76
22320	100	215	73	605	755	1, 600	2, 400	12.4
22320K	100	215	73	605	755	1, 600	2, 400	12.1
22320KW33C3	100	215	73	605	755	1, 600	2, 400	12.1
22320W33C3	100	215	73	605	755	1, 600	2, 400	12.4
22322	110	240	80	745	930	1, 400	2, 200	17.1
22322K	110	240	80	745	930	1, 400	2, 200	16.7
22322KW33C3	110	240	80	745	930	1, 400	2, 200	16.7
22322W33C3	110	240	80	745	930	1, 400	2, 200	17.1
22324	120	260	86	880	1120	1, 300	2, 000	21.5
