Product Description

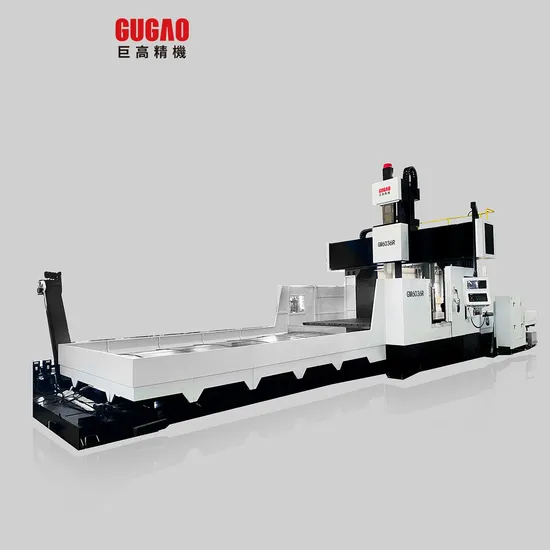

GM6036R Production Description
1. Machine tool performance:
GM6036R is a heavy-duty cutting machine tool, which mainly processes large and medium-sized castings and welded parts. It is suitable for parts processing in the aerospace, energy, engineering machinery, machine tools, vehicles and other industries. It has the characteristics of high precision, high efficiency, flexibility and environmental protection. Its performance indicators and accuracy indicators meet the relevant national standards.
2. Overall machine structure characteristics:
The worktable is movable, the gantry is fixed, the Z axis is a fully enclosed square slide, and the X and Y axes use heavy-duty linear rails.
3. Main transmission structure characteristics:
The main motor is arranged at the top of the slide, and an imported reduction gearbox is selected. The reduction gearbox and the spindle are equipped with an oil cooling system.
4. Feed structure characteristics:
The X, Y and Z axes are all driven by high-precision ball screws and equipped with imported reduction gearboxes. The Z axis is equipped with a nitrogen balance device.
5. Operating system:
Two high-performance CNC systems are available: FANUC 0i-MF(1) and SIEMENS 828D.
6. Optional configuration:
Tool magazine, right-angle milling head, extended milling head, extended right-angle milling head, universal milling head, etc.
7. Manufacturing specifications:
The quality of all machine tool parts and components processed and assembled shall comply with the product drawings and relevant technical requirements, and its safety standards shall comply with the relevant provisions of GB15760-2004 "General Technical Conditions for Safety Protection of Metal Cutting Machine Tools", and its accuracy standards shall comply with the relevant provisions of GB/T17421-2000 "General Rules for Machine Tool Inspection" and GB/T19362.1-2003 "Inspection Conditions for Gantry Milling Machines".
Main Paremeters

Name		Unit	Parameter	Note
Travel	Three axis travel	mm	6500/3800/1250
	Distance from spindle end face to worktable center	mm	250~1500
	Distance between two columns	mm	3580
Worktable	Worktable Size(L*W)	mm	6000×3000
	Maximum load-bearing capacity	kg	35000
	T-shaped slot (quantity × width× spacing)	mm	13×28×225
Spindle	Spindle spec/tool holder spec		φ220/BT50
	Rivet Specifications		P50T-1(MAS403)
	Max spindle speed	rpm	3000
	Spindle Output Torque	N.m	1993/2458
	Motor power	kW	30/37
	Square ram section	mm	450×450
Feed	Three axis fast moving speed(X/Y/Z)	m/min	12/10/12
	Cutting feed speed range	mm/min	3000
Accuracy	(X/Y/Z) Positioning accuracy	mm	0.040/0.030/0.020
	(X/Y/Z) repositioning accuracy	mm	0.024/0.020/0.012
Others	Linear guide rail specifications (X/Y)	mm	Roller 55/65+55
	Ball screw specifications (X/Y/Z)	mm	80/63/55
	Servo motor specifications (X/Y/Z)	Nm	53(1:5)/38(1:3)/30(1:3)
	Air source/pressure		500L/min 6~8bar
	Total electrical capacity	KVA	65
	Tank volume	L	1500
	Machine size (X×Y×Z)	mm	16500×8700×7000	With chip collector
	estimated weight	kg	75000
