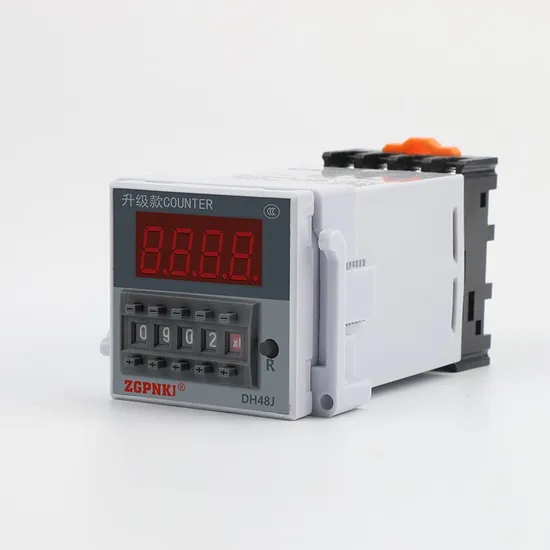

Dh48j Infrared Counter Relay Counter Electronic Digital Display Induction Intelligent, Counting Relay

Product Description

Basicinformation
Model	DH48J Series	Stage	1
Power Type	Communication	Numberof poles	2
Principle of action	Electromagnetictype	Size	Miniature
Type	Electrical parameter relay	Voltage	AC/DC12VAC/DC24V,AC36V,AC110V,AC220V,AC380V
Power	50Hz/60Hz	Makemethod	CycleDelay
TimeRange	0 to 999900	Contact capacity	AC220V3A(resistance)
Transport bag	Carton	Trademark	ZGPNKJ
Origin	Zhejiang	Production capacity	10000
Packaging and Delivery
Packing size		53.00cm*34.00cm*33.00cm
Packing grossweight		26.000kg

Notifications 1. Since the relay has a time recording function, please preset the delay time before powering on, and the interval between restarting the relay is ≥ 5s. 2. Please set the dial to the time you want, connect the power supply, and then the LED screen starts timing from 0, when the preset time is reached, the delay contact is changed to stop timing to complete the timing control. 3. Reset function: Please connect Terminals 1 and 3 at any time, and the relay will return to the initial state. 4. Pause function: Please connect Terminals 1 and 4 at any time, then stop timing and keep the current time. When the terminal is disconnected, the relay will continue timing. 5. Please use a shielded lead wire. When the lead wire is connected to the reset terminal or connected to the pause terminal, it is too long in a high electric field environment. Do not put voltage or ground into the reset terminals (1,3), pause terminals (1,4). Failure to do so can damage the relay.
