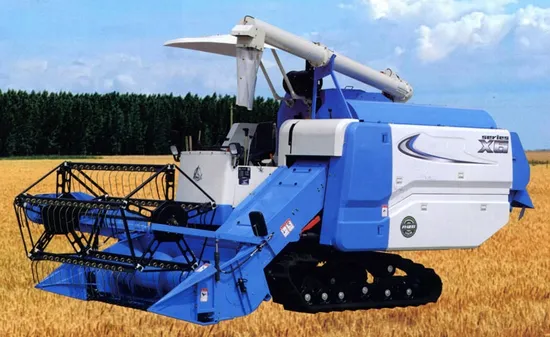

Full Feeding Crawler Type Self-Propelled Mini Rice Harvest Machine Combine Harvester

Product Description

4LZ-6.0B1 Combine harvester Product Description
Compact structure, excellent performance, Low ground pressure, high performance in wet or mud land. High threshing ability, low broken rate. Low lost rate. Thorough clearance with double shakers for re-threshing. Famous brand engine with large power and stable performance Detailed Photos
Product Parameters

No.	Item					Unit	Specifications
1	Type					/	4LZ-6.0B1
2	Structure mode					/	Full feeding, crawler type, self-propelled
3	Engine	Manufacturing company				/	CHANGCHAI COMPANY,LIMITED
		Engine type				/	4C6-100
		Structure mode				/	Vertical, inline, water-cooled,4 strokes
		Rated power				kW	75
		Rated speed				r/min	2400
4	dimensions (length×width× height)			At work		mm	5980×2660×2855(rape combine)
				In transportation			5980×2660×2855(rape combine)
5	Mass of the whole machine					kg	3760
6	Cutting width					mm	2000
7	Feed rate					kg/s	6.0
8	Minimum ground clearance					mm	≥315
9	Theoretical travel speed					km/h	2.15~5.28/0~8.7(HST)
10	Pure field capacity					hm²/h	0.3~0.5
11	Fuel comsumption unit area					kg/hm²	21~27
12	Type of cutter					/	standard II
13	Type header auger					/	Spiral toothed
14	Reel	Type				/	Eccentric, spring toothed
		Diameter				mm	φ900
		No. of bars					5
15	Threshing cylinder	No.					1
		Type			Main cylinder	/	Axial-flow, rasp-bar
					Auxiliary cylinder	/	/
		dimensions (diameter× length)			Main cylinder	mm	φ620×2200
					Auxiliary cylinder		/
16	Cancave type					/	grid
17	Fan	Type				/	Centrifugal, volute
		Diameter				mm	φ400
		No.					1
18	Track	Specification (pitch×no. of teeth×width)				/	90 mm× 53×450mm
		Distance between tracks				mm	1250
19	Tyre specification	Guiding wheel				/	/
		Driving wheel				/	/
20	Minimum radius of pass-by				Turn left	mm	3300/ 3450(rape combine)
					Turnright		3500/ 3700(rape combine)
21	Type of gear box					/	(HST) hydraulic stepless speed changes or mechanical gear box
22	Brake type					/	Friction-type hand braking
23	Type of stalk cutter					/	/
24	Re-thresher type					/	Plank-tooth
25	Unloading					/	360degree auger unloading
26	Steering mode						Hydraulic power steering
