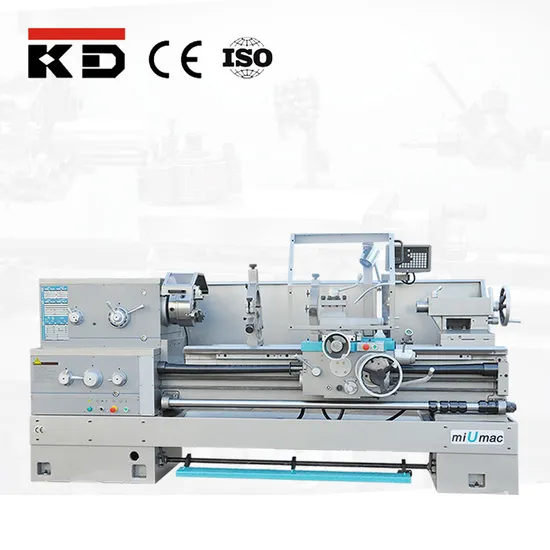

Metal Turning Conventional Lathe Machine C6266c Manual Lathe
| US$3,000.00-50,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
C6266c
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Delivery
2 Months After Order Confirmed
Color
Made to Order
Handwheel
Right or Left Handwheel
Voltage
Optional
Spindle Bore
105mm
Swing Dia Over Bed
560mm
Bed Width
405mm
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
1200 Sets/Year
Product Description
FEATURES AT A GLANCEPRODUCT SPECIFICATIONS
| MODELS | C6256C | C6266C | C6277C |
| CAPACITY | | | |
| Max. swing over bed | Ф560mm | Ф660mm | Ф770mm |
| Max. swing over carriage | Ф360mm | Ф420mm | Ф575mm |
| Max. swing over gap | Ф770mm | Ф870mm | Ф1050mm |
| Bed width | 405mm | ||
| Effective length of gap | 230mm | ||
| Distance between centers | 1000/1500/2000/3000mm | ||
| Max turning length | 830/1330/1830/2830mm | ||
| SPINDLE | | ||
| Spindle nose | D8 | ||
| Spindle bore | Ф105mm | ||
| Taper bore of spindle | Ф113mm 1:20 | ||
| Steps of spindle speed | 12 | ||
| Range of spindle speed | 36~1600rpm | ||
| FEED | | ||
| Range of longitudinal feeds | 0.063~2.52 (0.023″~0.937″)mm | ||
| Range of cross feeds | 0.027~1.07(0.010″~0.404″)mm | ||
| RAPID TRAVEL | | ||
| Longitudinal | 4500mm/min | ||
| Cross | 1900mm/min | ||
| THREAD RANGE/ NUMBER | | ||
| Metric pitch threads | 1~14mm/ 22 | ||
| Whit-worth threads | 28~2TPI/ 26 | ||
| Module threads | 0.5~7MP/ 18 | ||
| D.P. Threads | 56~4DP/ 24 | ||
| TAILSTOCK SLEEVE | | ||
| Taper bore | M.T.NO.5 | ||
| Max travel | 150(5~29/32″)mm | ||
| External diameter | Ф75(2~61/64″)mm | ||
| OTHERS | | ||
| Size of tool shank | 25×25mm | ||
| Max travel of cross slide | 310mm | 360mm | 430mm |
| Max travel of top slide | 145mm | ||
| Main motor power | 7.5kw | ||
| Overall dimension (LxWxH) | 2500/3000/3500/4500 x1100x1350mm | 2500/3000/3500/4500 x1100x1450mm | 2500/3000/3500/4500 x1100x1540mm |
| Net weight | 2400/2650/2900/3250g | 3000/3200/3400/3900kg | 3600/3800/4000/4500kg |
PRODUCT CONFIGURATION
