City Underground Sewer Pipe Liner Film Pipeline Rehabilitation UV Cipp Liner Hose

Product Description

UV Curing Cipp Lining Film indrustral sewage pipeline curing repair materials Product Description Ultraviolet Light Curing Hose Used in In-situ Pipeline Repairing
Used for drainage pipe repair of sewage, rainwater, etc. Used for pipe repair including different sections of round, rectangular, egg and so on. Meet the customized design and construction for non-standard and variable diameter pipelines in the project. The whole series are made of high-quality anti-corrosive glass fiber.

General Hose Parameters
Pipe diameter of hose	DN200-DN2000
Hose wall thickness	3-18mm
Elastic modulus	16000MPa
Bending strength	500MPa
Tensile strength	160MPa
Resin curing wavelength peak	365~420nm

Products Introduction:

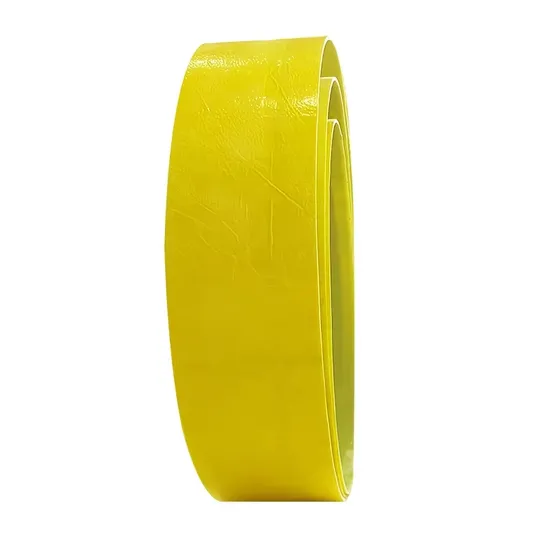

The self-developed UV-CRUable liner pipe is a dry hose made of glass fiber cloth and impregnated with UV-curable resin, which is mainly used for trenchless UV-curable pipeline repair and structural reinforcement of underground pipelines. When used, it needs to be pulled into the original pipeline, inflatable expansion close to the original pipeline, and then solidified under ultraviolet light to form a lining pipe with high strength.
At present, the workshop has high production efficiency, and a single shift can produce 250 meters, especially suitable for large-scale official website emergency project procurement. At present, the largest diameter DN1800 Lined hose, has realized the process breakthrough in the industry, non-standard diameter production experience, technology stability at the same time, quality assurance, short production cycle, domestic cities can reach the construction site in 7 days.
Products Feature:
The repaired pipeline structure meets or exceeds the strength, stability and deformation requirements
The repaired pipeline is smooth and meets the flow capacity requirements
The service life of the repaired pipeline is more than 50 years
Good ductility and fits the pipe wall
Good material stability, interruption of curing in the middle and restarting will not affect the curing effect
High cost performance compared to imported materials
Higher curing speed than imported materials, up to 2m/min
Product Parameter:

Test Item	Technical Requirements	Unit	Inspection Results
Bending strength at first break	> 125	Mpa	476
Flexural modulus	> 8000	Mpa	17765
Longitudinal tensile strength	> 80	Mpa	170

Remarks: Can accept customized.
Construction Site:
Our Advantages
Certifications:
Our Factory:
FAQ Q:Can you send samples? A:Yes,we are very happy to provide you with free samples to check the quality of our products.
Q:Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer,OEM and ODM are both welcome.
Q:How long is the delivery time? A: General within 3-7days after received the deposit Q: How to control product quality? A: Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping
