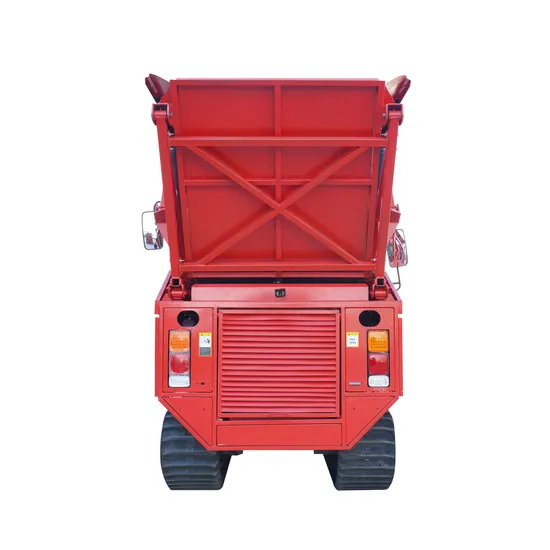

Innovative Crawler Silage Harvester with Exceptional High Capacity Features

Product Description

Model		9QZ-2100QL
Type		Self-propelled
Engine rated power	Kw	129 () (National IV)
Cutting width	мм	2020
Type of crop harvester		Straight cutting table
Cutting Type of table cutter		() Rotary Impact Cutters (disc cutters)
Type of feeding mechanism		Feed Roll
Number of feeding mechanisms		4
Type of straw chopping mechanism		Disc type
Type of grain crusher		Kneading plate type
() Cab Type (self-propelled)		Normal
Speed change mode		Manual transmission
Drive mode		Hydraulic Drive
Brake type		Hydraulic disc type
Track width	мм	450
Track ground length	мм	1600
Operating Speed Range	Km/h	2-10

Company profile
Hebei Dingguagua Machinery Manufacturing Co. , Ltd. has entered the field of agricultural machinery R & D and manufacturing since 2004. After more than 20 years of hard work and development, it has developed into a high-tech company with high reputation and influence in the field of agricultural machinery in China, specializing in the R & D, manufacturing, sales and after-sales of agricultural machinery.
The company has a strong technical R & D team, and has more than 30 Chinese national invention patents, mainly produces a series of cotton field machinery, including cotton picking machine, packing machine, etc. The series of green fodder harvesters, mainly including green fodder harvesters suitable for harvesting a variety of silage crops, big round baling machines, etc. Sales service network covers China's entire agricultural production area, and products exported to Thailand, Vietnam, the Philippines and other Southeast Asia countries, as well as Turkey and other West Asia countries or regions
Product advantage
The 9QZ-2100QL The lightweight body design of the green fodder harvester matches the National IV 175 hp engine, 450mm wide industrial track (1600mm grounding length) , Lynd Pump Motor System and dual drive box structure to achieve in situ U-turn, the utility model can meet the operation requirements under various ground conditions, and greatly improves the trafficability of vehicles and the climbing-out ability.
Q&A
Q1: What's your lead and delivery time?
A1: Usually machines should be prepared well within 15-20 days, including Sundays when deposit isconfirmed. Delivery time should depend on customers' demands for the delivery way.
Q2: How is your warranty?
A2: Warranty period is 12 (Twelve) months from the startup on site.
Q3: How could l do ifl meet some troubles on operation?
A3. We will let our engineer contact with you to solve it on line. lf necessary, we can send engineers andtranslator to vour factory to train your tech staffs.
