Cnhawe Automatic Timing Belt Pure Electric 4+1 Axis 50t1500 CNC Press Brake Bending Machine with Inovance Ep700b Control System for Sheet Matel Bending

Product Description

Product Description

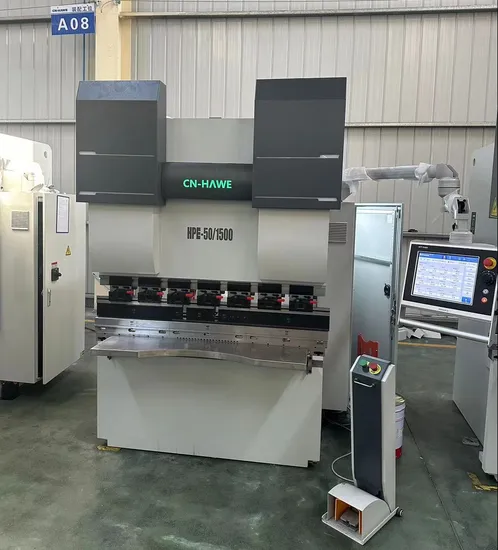

HPE Series Pure Electric CNC Press Brake
The HPE Electric Servo E-Bend Press Brake is a cutting-edge, high-performance press brake designed for precision metal forming applications. It incorporates advanced servo-electric technology to deliver unparalleled accuracy and efficiency in bending operations. It is a reliable, efficient, and versatile solution for modern metal forming requirements and also a distinguished member of CNHAWE press brake family. Its advanced technology, robust construction, and user-friendly design make it a valuable asset in any industrial setting, delivering high precision and productivity while ensuring operator safety and ease of maintenance.After more than a decade of iterative updates, CNHAWE's servo control technology has reached a new level. Looking at the entire industry, the deep integration of this technology with press brakes has created a new era and continues to drive the development of the sheet metal fabricating industry.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Retum Speed	Column Distance(B)	Throat Depth (C)	Slider Travel(D)	Open Height(E)	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	Ton	L*W*H(mm)
HPA-35-1250	350	1250	95	280	18	210	950	300	150	440	2.9	1480*1320*2260
HPA-65-1500	650	1500	110	260	18	200	1150	350	180	450	3.6	2170*1450*2360
HPA-65-2050	650	2050	160	260	18	200	1700	350	180	450	4	2720*1450*2360
HPA-65-2500	650	2500	200	260	18	200	2150	350	180	450	4.4	3170*1450*2400
HPA-110-2500	1100	2500	230	260	18	200	2000	410	220	490	6.3	2660*1540*2610
HPA-110-3100	1100	3100	230	260	18	200	2600	410	220	490	7.3	3260*1540*2610
HPA-110-4100	1100	4100	230	260	18	200	3600	410	220	490	8.7	4260*1540*2610
HPA-135-4100	1350	4100	230	260	18	200	3600	450	220	490	9.56	4260*1590*2610
HPA-160-3100	1600	3100	230	220	16	180	2600	410	220	490	8.9	3270*1550*2700
HPA-160-4100	1600	4100	230	220	16	180	3600	410	220	490	10.4	4270*1550*2700
HPA-220-3100	2200	3100	230	180	13	170	2600	410	220	490	11.2	3280*1830*2790
HPA-220-4100	2200	4100	230	180	13	170	3600	410	220	490	13	4280*1830*2790
HPA-220-4500	2200	4500	230	180	13	170	3600	410	220	490	13.5	4480*1830*2790
HPA-220-5000	2200	5000	230	180	13	170	4000	410	220	490	18	4930*2130*3350
HPA-220-6000	2200	6000	230	180	13	160	5100	410	220	490	21.6	5980*1920*3040
HPA-300-3100	3000	3100	230	170	11	140	2600	410	280	510	14.1	3290*1890*3040
HPA-300-4100	3000	4100	230	170	11	140	3600	410	280	510	16.4	4290*1890*3040
HPA-300-5000	3000	5000	230	160	11	135	4000	500	280	510	20.8	4930*2130*3350
HPA-300-6000	3000	6000	230	160	10	130	4800	500	280	510	24.5	5980*2130*3550
HPE-50-1500	500	1500	/	230	25	230	1150	350	180	490	/	1720*1500*2400
HPE-50-1600	500	1600	/	260	25	230	1150	350	180	490	/	1820*1500*2680

Detailed Photos
CNC Controller
The professional EP706B electric bending machine CNC system is adopted, which combines the CNC genes of German PA and the technical accumulation of INOVANCE technology, and can fully support various control functions of the electric bending machine. The panel type installation structure can be installed on the electrical cabinet or can be installed with a crane arm. 15 inch TFT large screen display resistor screen is stable and reliable, with comprehensive display; The UI design of Huawei UED team won the International Red Dot Award for its convenient and user-friendly operation. Fast navigation, compatible with different styles of DELEM and CYBELEC, meeting the needs of different scenarios.
Back-gauge
The CNHAWE back-gauge system is at the forefront of the press brake industry with its excellent motion accuracy.
We use imported ball screws and linear guides, which improve the accuracy and consistency in the production process of CNHAWE's CNC series press brakes.
Our entire frame of the ack-gauge system undergoes high-temperature tempering treatment to eliminate internal stress, improve metal plasticity and toughness, and prevent precision loss caused by frame deformation.Servo Motor
The integration of servo and electric technology ensures precise control over bending processes, allowing for high-speed operation with minimal energy consumption. This technology enhances productivity while reducing operational costs.Servo Hydraulic SystemStandard 23 bit absolute value encoder PG card to improve speed control accuracy;Wide voltage design supports 380V-480V voltage input;Real time detection of motor temperature for better motor protection;Low rotor inertia and faster speed response;The motor adopts Tesla motor structure, anti demagnetization, and low electromagnetic noise;Low temperature rise combined with forced air cooling, safe and reliable, with a longer service life;The motor has high efficiency and is more energy-efficient.
Upper Clamp
By using manual quick clamps, we can make the upper punch tools on our press brake be easily and quickly replaced. Saving time and improving work efficiency. For high-end demand, we offer hydraulic clamps or pneumatic/hydraulic clamps from the Dutch brand WILA - the world's best press brake clamping solution provider.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.
