Hot Sell High Precision Dalian Conventional Vertical Lathe with Lathe Vertical
Basic Info.
Model NO.
C5235
Type
Vertical Lathe
Processing Accessory
Other
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Cutting Diameter
3500mm
Max. Cutting Height
1600/2000mm
Worktable Diameter
2830mm
Max. Loading Weight
20t
Worktable Max. Torque
63kN.M
Worktable Speed Range
2-63rpm
Worktable Step
16
Right Tool Post Cutting Force
35kN
Left Tool Post Cutting Force
28kN
Tool Post Horizontal Travel
1900mm
Tool Post Vertical Travel
1000/1250mm
Crossbeam Travel
1250/1650mm
Main Motor
AC55kw
Machine Weight
40/43t
Transport Package
Wooden Cases
Specification
6400*5050*5200mm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
680.00cm * 540.00cm * 550.00cm
Package Gross Weight
42010.000kg
Product Description

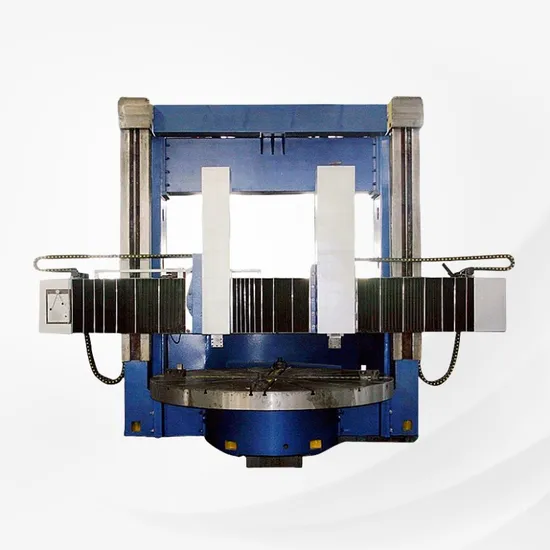

Product PictureSpecification Parameter
| Specification | Unit | C5225 | C5232 | C5235 | C5240 | C5250 | C5263 |
| Max. Cutting Diameter | mm | 2500 | 3200 | 3500 | 4000 | 5000 | 6300 |
| Max. Cutting Height | mm | 1600/2000/2500 | 1600/2000/2500 | 1600/2000 | 1600/2000/2500 | 2000/2500/3150 | 3150/4000 |
| Worktable Diameter | mm | 2250 | 2830 | 2830 | 2830/3200/3600 | 4000/4500 | 4500/5000/5700 |
| Max. Loading Weight | t | 10/16/20 | 10/16/20 | 20 | 20/32/50 | 32/50 | 50/100 |
| Worktable Max. Torque | kn. m | 63 | 63 | 63 | 63 | 70 | 100 |
| Worktable Speed Range | rpm | 2-63 | 2-63 | 2-63 | 0.5-40 | 0.5-40 | 0.5-38 |
| Worktable Step | steps | 16 | 16 | 16 | 16 | 16 | 16 |
| Right Tool Post Cutting Force | kn | 35 | 35 | 35 | 35 | 35/50 | 50/80 |
| Left Tool Post Cutting Force | kn | 28 | 28 | 28 | 28 | 28/40 | 40/70 |
| Tool Post Horizontal Travel | mm | 1400 | 1700 | 1900 | 2150 | 2765 | 3450 |
| Tool Post Vertical Travel | mm | 1000/1250/1400 | 1000/1250 | 1000/1250 | 1000/1400 | 1250/1400/1600 | 1600/2000 |
| Crossbeam Travel | mm | 1250/1650/2150 | 1250/1650/2150 | 1250/1650 | 1250/1650/2150 | 1500/2000/2650 | 2650/3500 |
| Main Motor | kw | AC55 | AC55 | AC55 | AC55 | AC55/75 | AC75/90/110 |
| Machine Weight | t | 32/34/36 | 39/42 | 40/43 | 43/45/48 | 60/65/70 | 118/127/178 |
| Overall Dimension(L*W*H) | mm | 5180*4700*4800 | 6000*4860*5000 | 6400*5050*5200 | 6900*5200*5700 | 9200*5800*5800 | 11500*7500*9300 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
