High regulated voltage output dc dc converter ic/circuit GRBxxxxD-xW-A/B Series

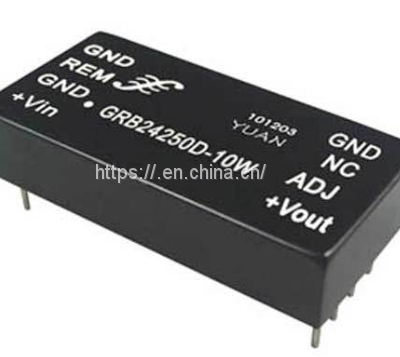

Sunyuan GRB Series Wide Voltage Range Input, Regulated High Voltage Outptut DC DC Converter adopts the advanced DC/DC conversion and pressor technology, the unique vacuum insulation and encapsulation technical design, the metal shield case, which have the following characteristics: moisture-proof, shockproof, high efficiency, low noise, low temperature drift, anti-EMC electro magnetic interference,etc. The modules are widely used in mine exploration, metallurgy, optical control technology, medical equipment, physical and chemical experimental analysis, etc.
Technical Parameters:

Output Specifications:
Technical Specifications	Technical Parameter	Testing Conditions
Voltage Stability Accuracy	3.0%max	1%-100% load range
Voltage Regulation	0.5%max	full load
Load Regulation	±0.5%type. ±1.0%max (No load to full load)	0%-100% load range
Ripple and Noise	≤150mVp-p,max	20MHzband width
Dynamic Response Speed	≤150us	25% load-full load
Response Time	500ms
Input Specifications:
Input Voltage Range	(12VDC)9 - 18VDC
	(24VDC)18 - 36VDC
Linear Speed Rate	0.5%	low end- high end
General Specifications:
Switch Frequency	150KHZ		Typical Value
Conversion Efficiency	See Model Selection Guide
Isolation Voltage	Non-isolated
Average Non-failure Interval Time	50000 hours
Temperature Coefficient	0.02%/ºC
Environment Characteristics:
Operating Temperature	-40ºC - +85ºC
Storage Humidity	-55ºC - +125ºC
Relative Humidity	10% - 90%
Cooling Mode	free air

Dimension & PIN Definition:
( 1 ) A Model Dimension:25.4 x 25.4 x 10.14 Unit:mm A Model Product No. : GRBXXXXD- A (bottom view)
