R32 Hot Water Heaters Heatpump Swimming Pool heat pump water heater

Product Description

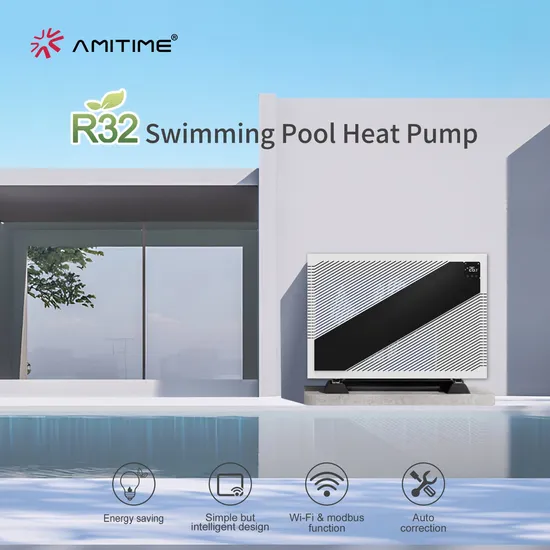

Back Discharge Swimming Pool Heat Pump with R32
Gemini FI series swimming pool heat pump is the most luxury range. Thanks to the exclusive design, Gemini FI offers you the super quiet operation and it also represents a versatile characteristic and a heart always feeling fresh for everything new. You can have your choice to design the stylish appearance for it and bring more innovative ideas to make your own units. This is what we would like to convey from our Gemini FI series. Technical

Model		Gemini FI 10	Gemini FI 13	Gemini FI 16	Gemini FI 20	Gemini FI 20 Tri	Gemini FI 25	Gemini FI 25 Tri
Référence fabricant		AVAC-07V1FGA02	AVAC-09V1FGA02	AVAC-12V1FGA02	AVAC-16V1FFA02	AVAC-16V4FFA02	AVAC-21V1FFA02	AVAC-21V4FFA02
Performance at Air 26ºC, Water 26ºC
Capacity	KW	9.1	12.5	15.3	20.0	20.6	24.5	24.5
COP	W/W	6.1	6.00	6.10	5.5	5.9	5.1	5.1
Power input	KW	1.50	2.08	2.51	3.61	3.5	4.8	4.8
Performance at Air 15ºC, Water 26ºC
Capacity	KW	6.7	9.05	11.5	15.5	16.0	18.5	18.5
COP	W/W	4.60	4.70	4.70	4.7	4.8	4.3	4.3
Power input	KW	1.45	1.93	2.43	3.30	3.3	4.3	4.3
Performance at Air 35ºC, Water 30ºC
Capacity	KW	3.6	4.8	5.5	6.5	7.7	9.0	9.0
COP	W/W	3.53	3.70	3.50	3.61	2.00	2.2	2.2
Power input	KW	1.02	1.3	1.57	1.8	3.9	4.0	4.0
Performance at Air -7ºC, Water 26ºC
Capacity	KW	4.3	6	7.2	8.2	8.1	9.6	9.6
COP	W/W	3.30	3.50	3.40	3.4	3.0	3.45	3.45
Power input	KW	1.32	1.72	2.1	2.4	2.7	2.8	2.8
Power supply		230V/1 Ph/50Hz				380/3 Ph/50Hz	230V/1 Ph/50Hz	380/3 Ph/50Hz
Max power input	KW	2.1	3.0	3.45	4.14	4	5.3	5.3
Max current Input	A	9	13	15	18	6.5	23	8.5
Fuse or circuit breaker(A)	A	11	15	18	21	10	28	10
Water flow	m³/h	3-4	4-5	5-6	6-8	7-9	9-11	9-11
Gas R32 ( Kg)		0.500	0.650	0.8	1.10	1.3	1.45	1.45
Noise at 10m	dB(A)	19-29	20-29	21-30	22-31	23-33	23-35	23-35
Net dimensions	mm	975×382×647	975×382×647	1046×412×747	1046×412×747	1066×442×847	1066×442×847	1066×442×847
Package dimensions	mm	1043×440×800	1043×440×800	1147×454×882	1147×454×882	1279×504×992	1279×504×992	1279×504×992
Net/poids weight	kg	52/62	56/66.5	72.5/85.5	76/87.5	94/108	96/109	94/107.5
Advised pool volume	m³	21-35	27-45	36-60	48-80	48-80	57-95	57-95
Advised Pool Volume (fabricant)	m³	28	32	48	64	64	76	76
Heating temperatuer range	ºC	15~40ºC
Cooling temperatuer range	ºC	8~28ºC
Operating range	ºC	-7~43ºC
WIFI		YES

Project Cases

Certifications
Company Profile

Exhibition

FAQ
Q: Do you provide OEM & ODM?
A: Yes. We can design products and make logos, labels, cartons, user manuals etc. according to our customer's demand.
Q: What's your MOQ?
A: For official orders, our MOQ is a full container load of 40 feet contaienr.
Q: What's your lead time for orders?
A: Usually 30-35 days. For order of big quantity, to be discussed.
Q: What's your production capacity?
A: We have in total 10 production lines in our factory in Zhongshan now, the production capacity is around 1000 pcs/day.
A new base in Shunde will get ready in 2023 and our production capacity will increase to around 2500 pcs/day.
Q: How can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q: What's the payment terms?
A: By T/T, 30% deposit to confirm the order, and the balance to be done before shipment.
Q: How long is your warranty?
A: One year warranty for complete machine, three years warranty for compressor, and long-term technical support.
