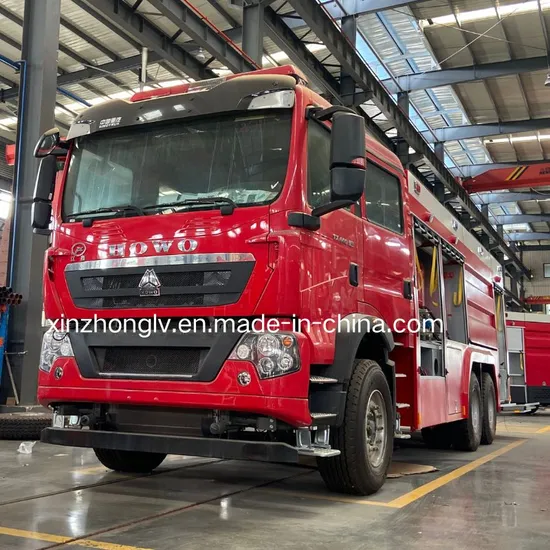

HOWO Dry Chemical Powder Tank and Water Foam Tank Combined Fire Fighting Truck Fire Engine

Product Description

Product Description
This Howo multi-function fire truck comes with a water tank, a foam tank, and a dry powder tank, can meet the requirements of extinguish of fires.
Brief Introductions:
1. Howo 6x4 chassis, left-hand drive (option right-hand drive)
2. Weichai Engine, engine power 340 hp/ 380 hp/ 400 hp
3. Water Tank Capacity 6000 liters, foam tank 2000 liters, dry power tank 2000 kgs.
4. Tank material can be carbon steel, stainless steel, or PP.
5. Double row cabins, 3+3 seats, air breath apparatus, air conditioner.
6. Each side 2 compartments with an aluminum roller shutter, and an LED light inside for night work.
7. Fire pump rear-mounted, option Imported fire pump brand.
8. Hose reel 30 m length.
9. Fire accessories and tools are equipped.
Detailed Photos
Product Parameters

Main parameters of the entire vehicle	External dimensions: 11890x2550x3640mm Maximum total mass: 25000kg Rated mass: 15000 kg Curb weight: 10045 kg Liquid carrying capacity: 6000L Maximum speed: 100km/h The rated flow rate of the water pump: is 60L/s @ 1.0MPa Fire monitor rated flow rate: 6L/s @ 0.8MPa Fire monitor range: ≥ 55m Approach angle/departure angle: 24 °/15 °
Main parameters of the chassis	Model: ZZ1257M4647C Drive Type: 6×4 Wheelbase: 4500 mm Maximum speed: 110km/h Engine model: Q23-115E60 Rated power: 85KW Total weight: 7360kg
Driver's cab	Structure: Flat-head, four-door double-row cab. Y Technical Specification Book -2020 A Seating arrangement: 2 people in the front row (including the driver)+3 people in the back row Equipment: In addition to the original vehicle equipment, a 100W alarm, power take-off control switch, and alarm light control box are installed.
Container	Capacity: 7000L of water Material: The water tank is made of high-quality carbon steel plate, and the interior of the tank is treated with corrosion Li, the bottom plate of the water tank is made of 4mm carbon steel plate, and the side and sealing plates of the water tank are made of 3mm carbon steel plate Plate, water tank top plate 3mm carbon steel patterned plate; Structure: Steel plate welding type, equipped with anti-vibration plate inside Equipment: 1-person mask with quick locking and opening device 1 overflow device 1 liquid level indicator 1 sewage outlet, manually controlled by valve Technical requirements: By the relevant provisions of XF39 "Fire Protection Requirements and Test Methods for Fire Vehicles"
Fire pump	Model: CB10/60 atmospheric fire pump Flow rate: 60L/s Pressure: 1.0Mpa Maximum suction depth: 7m Water diversion time: ≤ 35s Vacuum pump form: piston type Installation form: rear mounted
Pipeline system	The material of the tank pipeline is high-quality seamless steel pipe, which is connected to the flange Connection of various components. Tank outlet pipeline: equipped with one DN100 tank outlet pipeline, Water enters the fire pump from the tank, equipped with one unit DN100 manual butterfly valve, flexible through DN100 Connect the water tank to the fire pump through the joint. External water inlet pipeline: There is an external water inlet at the rear of the fire pump, which is connected externally 100 suction pipe, threaded pipe thread interface Y Technical Specification Book -2020 A
(KA100 touch cap seal);	Water outlet pipeline: There is one DN65 atmospheric outlet on each side of the fire pump; 1 DN65 gun pipeline, using DN65 flexible joints, controlled by DN65 gun ball valves. Water injection pipeline: Two DN65 pipelines (external water injection) are located on the left and right sides of the pump room;
