400L Vertical Type Without Screen Cost-Effective Narrow Particle Size Distribution High Efficiency, Low Energy LFP Anode and Cathode Sand Mill

Product Description

Easy Operation High Efficiency 400L Capacity Vertical Coating Paint Basket Sand Mill
Product Description
The LPM series sand mill has been specially designed and optimized for reliable application of 0.03-0.3mm small grinding beads. Innovative concepts and specially designed functional components can achieve a perfect separation system with extremely high production capacity and no screen blockage.
Main Product Description:
Grinding fineness: 50-1500nm, discharge method: no screen
Power system: energy-saving motor
Ceramic material: oxide/silicon carbide
Features:
1. Motor: permanent magnet synchronous motor/three-phase asynchronous motor
2. Transmission mode: the motor drives the pulley for transmission
3. Discharge method: Dynamic centrifugal discharge without screen
4. Grinding dispersion structure: rod pin type
5. Cooling method: the grinding cylinder is cooled by double-layer cooling water circulation, and the machine-sealed cooling liquid is circulated and cooled
6. Grinding medium: Zirconia sphere 0.1-2.0
7. Grinding speed: 0-650r/min, frequency conversion speed regulation
8. Control system: independent control of man-machine interface, with material temperature, pressure control, cooling water temperature; machine seal liquid level pressure, temperature, liquid level control; motor temperature real-time monitoring;
9. Sound and light prompt: When a certain sensor detects that the grinder is abnormal, the grinder will stop running, and the sound and light alarm will alarm and prompt detailed alarm information on the man-machine interface
10. Grinding chamber: inner cylinder silicon carbide
11. Features: No net separation, narrow particle size distribution, high efficiency, ultra-low energy consumption Detailed parameter

Model/Parameter	Motor power (Kw)	Grinding chamber volume (L)	Grinding medium (mm)	Feed flow (L/h)	Cooling water consumption(m³/h)	Weight (kg)
LPM-1	7.5	1	0.05-2.0	150	0.6	380
LPM-6	15	6	0.05-2.0	400	1.5	1300
LPM-15	22	15	0.05-2.0	1200	2	2100
LPM-30	45	30	0.05-2.0	1500	2.5	2200
LPM-60	90	60	0.05-2.0	2000	4	4500
LPM-150	160	150	0.05-2.0	4000	6	7500
LPM-400	355	400	0.05-2.0	6000	10	9500

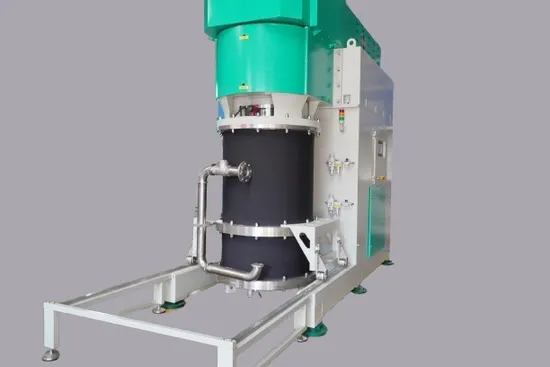

Detailed Photos
Product Application
Specially designed for mass production of nanomaterials, silicon carbon anodes, lithium iron phosphate, inks, alumina, peroxides, silica, ATO, ITO, graphene, etc.

Related Products
NCP series nano ceramic rod pin sand mill Direct drive sand mill series

LPM series vertical nano ceramic sand mill NCT series nano ceramic turbine sander
Company Profile
Dongguan Yifu Machinery Technology Co., Ltd. was founded in 1999. For more than 20 years, we have been providing our customers with comprehensive solutions for nanomaterial grinding machines and systems with the concept of "respecting the industry and exclling in the industy, honesty and standing in the world". At present, Guangdong headquarters 13,00 square meters of factory, Hubei Xiangyang under constuction 100 acres of production base and more than 40,000 square meters of leased factories, nearly 100 patents, hundreds of professional teams.
At present, the company's equipment has the characteristics of large-scale, intellient, energy-saving, etc, there are turbine, rod pin, vertical, direct drive and other series of sand grinding machines, the capacity ranges from 1L to 1000L, with stable operation, high efficiency, low energy consumption, large flow, ultra-fine, pollution-free and other characteristics.
Leading the industry to introduce energy-saving sand mill, vertical sand mil direct drive sand mill and so on. Yyfu Machinery Technology Co.,ltd. has been recognized by well-known industry customers in the field of new energy materials such as lithium iron phosphate, conductive agentand sodium material.There are dozens of large-scale cooperation cases, comprehensively enabling the development of the new energy industry.
Leading the industry towards full intelligent and energy-saving grinding production, Yifu Machinery Technology Co., Ltd. will continue to maintain the pursuit of grinding accuracy, improve the value of quality, and create China's first-class grinding system integrated service provider.
FAQ
Q1: How do l order?
A: Make an inquiry to us →Inform us of the use scenario → Receive our product design recommendation→Discuss details→Confirm sample → Sign contract/deposit→ Mass production →Goods ready -→Balance/delivery →Further cooperation.
Q2: What about your warranty?
A: First of all, before dellvery, our in-house QC will do a comprehensive inspection to show the condition of the goods by testing operation or trial operation.
Secondly, our warranty is 12 months from the time of arrval. If the equipment fail, such as the motor, reducer or inverter is damaged, we will replace and repair it free of charge. In case of damage caused by operational error, we will provide technical guidance to customers.
Q3: How about your after-sales service? What should I do if something goes wrong during use?
A: Whether it is under warranty or not , we will first help you figure out the essence and solve the problem through video conferencing. lf it is under warranty, no doubt we will take care of the problem and provide a new replacement free of charge. If it exceeds the warranty period, we will replaceit for you with it cost price, find the most favorable mode of transportation, thereby solving the problem, maximizing your cost savings at the sametime, and provide lifelong maintenance advice and technical guidance.
Q4: What are your company's strengths? Because l see that most of the products look very similar.
A: Yes , you're right. Similarity of appearance is a problem.
In this matter,we mainly do two aspects of work: firt, to ensure the quality of products; n the other hand,improve the professional quality of salesrepresentatives, improve their communication skils, and provide customers with more additional value beyond the produt
Q5: How can l trust you? After all, this is our first cooperation, but I must give you the money before you ship the goods.
A: Yes, it's really not easy to choose a reliable supplier among so many suppliers.
Because you may have to consider many factors, such as quality safety, price, delivery after-sales service and so on. But don't worry, our company has more than 20 years of experience in this field and we have taken all the factors into consideration for you
The only thing you need to think about is how to continue to grow in your market, and we'll do the rest.
Q6: Can it be customized?
A: Yes, the equipment can be customized according to customers' requirements.
