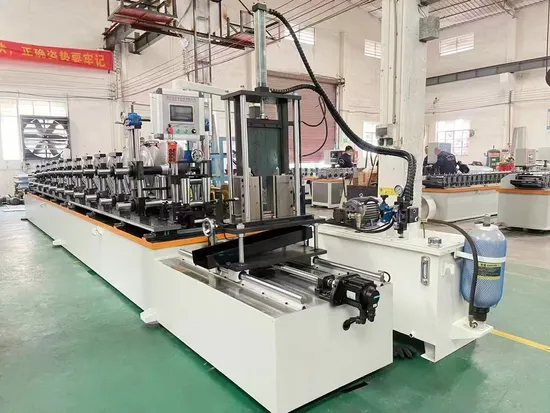

Automatic Aluminium U Baffle Ceiling Suspend False Ceiling Roll Forming Machine

Product Description

Machine Quick Details
Model Application: Automatic Aluminium U Baffle Ceiling Suspend false ceiling Roll Forming Machine for Ceiling Decoration	Condition: New
Type: Roll Forming Machine	Brand Name: Frametec
Applicable Materials: aluminum & color steel	Forming Speed: 10-50m/min
Warranty: 1 year	Place of Origin: China

Features of the machine:
The operation steps of the machine are to put the rolled material into the forming machine through the material guide device, and gradually form it through the forming wheel. After reaching the product's cross-sectional size, the product is cut by the cylinder blade cutting method. The cylinder drives the blade downward to cut the product. The length of the product is controlled by the encoder positioning method. The length error is small. The production line works normally while the product is cut. The whole process is not stagnant and is fast and smooth..
Applications:
Shopping mall, Exhibition Center, Conference hall, Restaurant, Office & etc
Flow chart: De-coiler - Leveling device -- roll forming parts -fly cutting- Stack
MATERIAL:
Profile width: 20-200mm
Flange: 20-200mm
Thickness 0.3-1.2mm for aluminum coil
Thickness 0.27-0.45mm for color steel
Main Components:
1. Hydraulic decoiler with coiler car
Features: Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.
Power: None;
Power of the open and closure of segments: Mechanical;
Power of rotation of segment: Pull by forming system;
Range of segment expansion: 450 ~ 520mm;
Max load: 1 ton
Feeding speed: depend on the roll forming machine speed;
2. Sheet guiding device
Features: Ensure smooth& precise material feed.
Components: steel plate platform, two pitching rollers, position stopping block.
The coil is guided in the correct position and passed to the roll forming equipment
3. Roll-Forming M/C:
The main frame of machine is welded separately and the outside wall is connected by screw after being rot blasted on the surface.
14 groups rollers . Roller Material is GCr15 mould steel being quenched treatment, with digital-controlled procession.
Roller Material is high grade Gcr15 steel, with digital-controlled procession.
Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
60mm thick independent precision guide column arch ensures long life of forming rollers.
4. Fly Cutting
The cutting material is CR12MOV, and the hydraulic cutting method is adopted. The length dimension is positioned by the encoder. After the length dimension is adjusted, when the product reaches the set dimension, the cylinder moves with the product. The stroke switch instructs the cylinder to start driving the blade downward to cut the product. After completion, the cylinder automatically retracts. The product cutting length tolerance is guaranteed to be within ±1MM.
5. Hydraulic station:
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.
Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.
Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
6. Profile Stack
Un-power, 3m length, with roller on top stack for easy movement
Profile Effects
Our Factory
Why Choose us:
13 years' manufacturing experience in high quality equipment for cold formed steel structures.
Competitive price and good quality
One year free warranty
Fast response of after sale service
Can be customized by clients' requirements
Easy operate and easy to maintain
Self-developed of post cutter, one blade to cutter all size of final products
