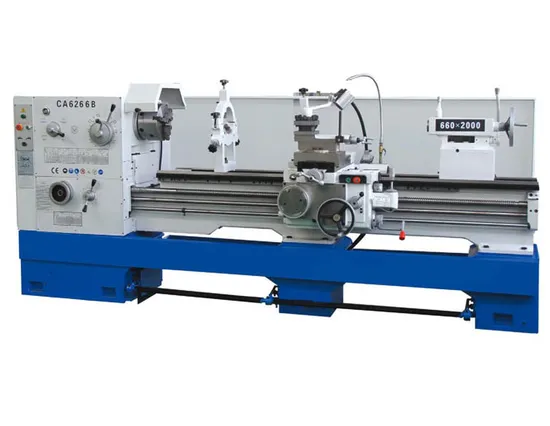

High Quality Horizontal Precision Gap Bed Metal Lathe

Product Description

The main performance characteristics: 1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability. 2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine. 3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life. 4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine. 5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance. 6 The machine adopts high strength four station turret shank size: 25x25mm. Application: 1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts. 2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable. 3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization. 4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting. 5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability. Product Parameters
Product main technical parameters:

Specifications		CA6140 CA6140B	CA6240 CA6240B	CA6150 CA6150B CA6150C	CA6250 CA6250B CA6250C	CA6161 CA6161B CA6161C	CA6261 CA6261B CA6261C	CA6166 CA6166B CA6166C	CA6266 CA6266B CA6266C	CA6180 CA6180B CA6180C	CA6280 CA6280B CA6280C
Max. Swing over bed		400mm		500mm		610mm		660mm		800
Max. Swing over carriage		210mm		300mm		370mm		400mm		540
Max. swing in gap		--	630mm	--	720mm	--	830mm	--	880mm	--	1020mm
Effective gap length		--	210mm	--	210mm	--	210mm	--	210mm	--	210mm
Max. length of work piece		750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed		400mm
Section of turning tool		25x25mm
Spindle	Spindle speeds	10-1400rpm/16-1400rpm(24steps)
	Hole through spindle	52mm. (80mm). [105mm]
	Spindle taper	MT6(Φ90 1:20)[Φ113 1:20]
Feed	Number of feeds	64 kinds(for each)
	Range of metric threads	1-192mm (44kinds)
	Range of inch threads	2-24tpi (21kinds)
	Range of module threads	0.25-48(Module39kinds)
	Range of pitch threads	1-96DP(37kinds)
Tailstock	Max. tailstock spindle travel	150mm
	Tailstock spindle diameter	75mm
	Taper of tailstock spindle center hole	MT5
Main motor		7.5KW(10HP)
Packing dimensions (L*W*Hmm)	Overall dimensions for750mm	2550x1140x1750		2550x1140x1750		2550x1140x1750		2550x1140x1750		2550x1140x1750
	Overall dimensions for1000mm	2700x1140x1750		2700x1140x1750		2700x1140x1750		2700x1140x1750		2700x1140x1750
	Overall dimensions for1500mm	3200x1140x1750		3200x1140x1750		3200x1140x1750		3200x1140x1750		3200x1140x1750
	Overall dimensions for2000mm	3700x1140x1750		3700x1140x1750		3700x1140x1750		3700x1140x1750		3700x1140x1750
	Overall dimensions for2200mm	4030x1140x1750		4030x1140x1750		4030x1140x1750		4030x1140x1750		4030x1140x1750
	Overall dimensions for3000mm	4850x1140x1750		4850x1140x1750		4850x1140x1750		4850x1140x1750		4850x1140x1750
	Overall dimensions for4000mm	5800x1140x1750		5800x1140x1750		5800x1140x1750		5800x1140x1750		5800x1140x1750
Weight (kg)	Length	G.W N.W.		G.W N.W.		G.W N.W.		G.W N.W.		G.W N.W.
	Weight for 750mm	2100 1990		2170 2061		2300 2180		2380 2260		2520 2400
	Weight for 1000mm	2190 2070		2260 2140		2380 2250		2570 2450		2720 2560
	Weight for 1500mm	2350 2220		2420 2290		2577 2437		2810 2640		2980 2800
	Weight for 2000mm	2720 2570		2790 2640		2940 2787		3050 2880		3260 3087
	Weight for 2200mm	2800 2600		2940 2790		3120 2970		3390 3180		3490 3287
	Weight for 3000mm	3300 3200		3450 3300		3600 3450		3930 3687		4200 3887
	Weight for 4000mm	3500 3400		3750 3600		3950 3800		4580 4200		4850 4500
