700kw CNG Pipeline Natural Gas Powered Generator

Product Description

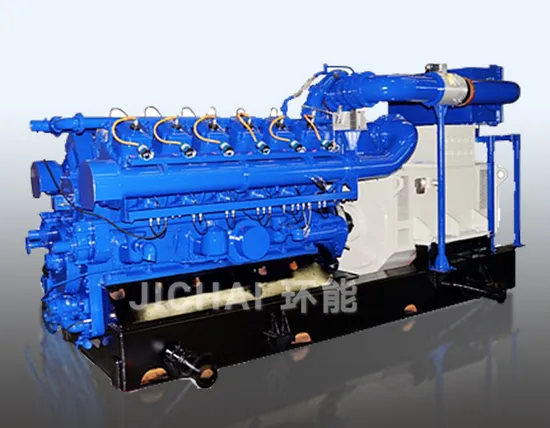

700kw CNG Pipeline Natural Gas Powered Generator
Jichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adaptability, high stability and low fluctuation. The generator is desirable for industrial power solution. MAIN SPECIFICATIONS OF GAS GENERATOR SET

Model	700GF-T		Gas Engine Model	M12V190ZL
Rated power	700kW/875KVA		Alternator	Siemens Series
Rated voltage	400 V		Starting method	24V DC electric start
Rated speed	1000rpm		Voltage regulation	Automatic
Rated frequency	50Hz		Cooling Mode	Close type water cool
Rated current	902A		Heat Consumption	£ 9800kJ/kWh
Power factor	0.8 Lagging		Dimension (mm)	5120x2040x2219mm
Control mode	Electric control		Net Weight (kg)	14500

MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR

Voltage
Stabilized regulation	Instantaneous regulation	Recovery time	Fluctuation
±2.5%	+20%	2 S	1%
Frequency
Stabilized regulation	Instantaneous regulation	Recovery time	Fluctuation
0-5% adjustable	+10%,-12%	< 10 S	1%

MAIN SPECIFICATIONS OF GAS ENGINE

Model	M12V190ZL
Rated power	700kW/875KVA
Number and layout of cylinders:	12-cylinders, V-type, 60° included angle
Type	Four strokes, Closed type water cooled, Turbo-charged, Electronic ignition, Electronic speed governor
Ignition type	Spark plug ignition
Intake gas pressure required	7-9kPa
Bore´Stroke	190´210 mm
Speed Governor	(Woodward) EGS-02 Electric governor
Oil consumption	£ 0.6g/kWh
Total lubricating oil capacity (Liters)	200L
Exhaust temperature (before turbine)	£ 680 °C
Heavy overhauling period	36,000h

MAIN SPECIFICATIONS OF ALTERNATOR

Alternator model	Exciting model	Insulation class	Connection	Cooling	Structure type
1FC5456-6TA42 (SIEMENS)	Brushless	Class F	3-phase, 4-wire	Air cooled	AVR and reactive droop regulator assembled in alternator

(Kindly Noted: data shown in above table tested under standard working condition: 25 Dec C, atmospheric pressure 100kPa, relative humidity 30%, altitude <1000m.)
Requirments for natural gas
1.Methane should be at least 95%
2.The natural gas temperature should be between 0-60 ºC
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
CONTROL PANEL Control panel is panel type, vertical structure, model is GPL700. Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. All of the electric cells possess three-proof functions. The Generator possesses the following automatic monitoring and protective functions: A) Audio or visual alarm for: - High oil and water temperature - Low oil pressure - Over current - Short circuit - Over-speed - Reverse power B) Shut-off for: - Low oil pressure - Over-speed - Short circuit - Over-speed - Reverse power C) Trip-off for: - Over-current - Short circuit - Reverse power The generator can not only supply power directly to load but also can be paralleled running. OPTIONAL DEVICE Steel Soundproof Container (sound attenuated canopy)
CHP/ Cogeneration/CCHP Trigeneration
ATS and Synchronization Parallelling Panel Oil and Water Heater
