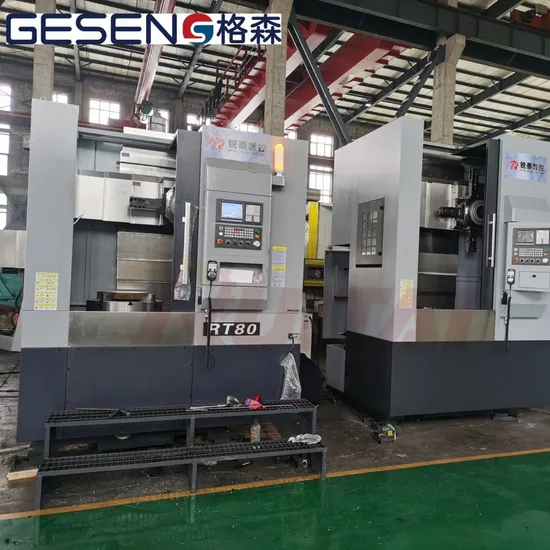

Vtc80A High Speed Taiwan Hydraulic Turret CNC Vertical Lathe 800mm
| US$51,000.00-52,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
VTC80A
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
CNC
Control Method
CNC Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Light Duty CNC Vertical Lathe
Certification
ISO 9001
Condition
New
CNC System
GSK, Fanuc, Knd, Siemens,etc
Local Support
Local Support as Value-Added Services
Optional Configuration
Protection Cover, Chip Conveyor, Turret, Cooling
Tool Post Type
Servo Turret 4/8/10/12 Tool Positions
Validity of Quotation
30days
Transport Package
in Wooden Case for Export Shipping
Specification
With chip converyor and protection cover
Trademark
GESEN
Origin
China
HS Code
8458911090
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 2000.00cm
Package Gross Weight
10000.000kg
Product Description
CNC VERTICAL LATHECNC vertical lathe adopts computer control system equipped with multi-axis control function,which has advantages such as high-precision processing, complex shape processing, high-efficiency production, reduction of human error, automatic processing, good batch processing, as well as, repeatability and improvement of production safety. These advantages make CNC vertical lathe widely used in metal cutting field, and play an important role in improving production efficiency and product quality.
Technical Parameter of VTC Series CNC Vertical Lathe
| Items | Unit | VTC40 | VTC50 | VTC60 | VTC70 | VTC80A | VTC100A |
| Travel of X axis | mm | 400 | 500 | 425 | 700 | 670 | 850 |
| Travel of Z axis | mm | 500 | 0~500 | 90~690 | 0~850 | 170~1020 | 0~1000 |
| Max. Swing diameter | mm | Φ600 | Φ650 | Φ650 | Φ800 | Φ1000 | Φ1200 |
| Max. Turning diameter | mm | Φ400 | Φ500 | Φ600 | Φ700 | Φ800 | Φ1000 |
| Max. Turning height | mm | 500 | 500 | 600 | 850 | 850 | 1000 |
| Spindle speed | rpm | 100-1000 | 100-1000 | 100-1000 | 100-800 | 100-800 | 100-800 |
| Spindle motor power | Kw | 15 | 15 | 18.5 | 22 | 22 | 22 |
| Outer diameter of mandrel | mm | Φ130 | Φ130 | Φ160 | Φ160 | Φ180 | Φ200 |
| Hydraulic chuck diameter | inch | 12" | 15" | 18" | 21" | 24" | 32" |
| Position of turret | 8 | 4/8 | 4/9 | 4/10 | 4/11 | 4/12 | |
| X-axis rolling linear guide rail (pcs*wide) | mm | 2*35 | 2*45 | 2*45 | 2*45 | 2*45 | 2*55 |
| Z-axis rolling linear guide rail (pcs*wide) | mm | 2-45 | 2*45 | 2*55 | 2*55 | 2*55 | 2*55 |
CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/color
Kindly contact us to get your vertical lathe machine tool.
