Customized Saving Capacity Removable Foldable Fabric Storage Metal Stillage

Product Description

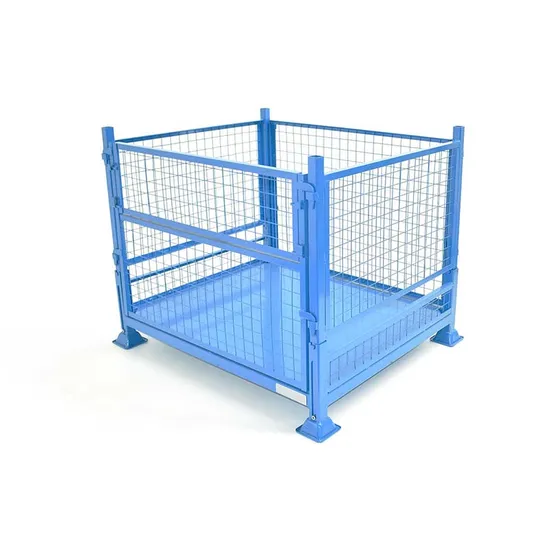

Wire Mesh Container also called Wire Mesh Cage or Collapsible Wire Cage , it's foldable and stackable . It's made of wire and tube channel.
Wire Cage Specification:

Model	Wire(mm)	Grid(mm)	Exterior Dimension LxWxH(mm)	Feet Height(mm)	Volumn /m3
A-1	6	50*50	800*600*640	100	0.22
A-2	5.5	50*50	800*600*640	100	0.22
A-3	5.3	50*50	800*600*640	100	0.22
A-4	5	50*50	800*600*640	100	0.22
Model	Wire(mm)	Grid(mm)	Exterior Dimension LxWxH(mm)	Feet Height(mm)	Volumn /m3
B-1	6	50*50	1000*800*840	100	0.52
B-2	5.5	50*50	1000*800*840	100	0.52
B-3	6	50*100	1000*800*840	100	0.52
B-4	5.3	50*50	1000*800*840	100	0.52
B-5	5	50*50	1000*800*840	100	0.52
Model	Wire(mm)	Grid(mm)	Exterior Dimension LxWxH(mm)	Feet Height(mm)	Volumn /m3
C-1	6	50*50	1200*1000*890	100	0.84
C-2	5.5	50*50	1200*1000*890	100	0.84
C-3	6	50*100	1200*1000*890	100	0.84
C-4	5.5	50*100	1200*1000*890	100	0.84

Applications:
Loading & Producing :
Factory & Workshop:
FAQ:
1, Steel grade?
Mild steel Q235, Q195
2, How is the packing?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with Standard forklift truck or pallet jack 3, What's payment terms ?
TT or L/C at sight
4, What surface finishing of your products?
A. Electrol galvanized/Zinc plated: The zinc serves as a sacrificial anode( indoor storage)
B. Hot DIP galvanized: It forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C. Powder coating: A type of coating that is applied as a free-flowing, Dry powder(indoor/outdoor storage)
5, What's the loading capacity?
In general, we have light duty(100~300kg) model, medium duty(400~800kg) model
And heavy duty(1000~1700kg) model available for your choice.
6 Can your wire cage used in cold storage?
Yes,wire container and roll cage are all widely used in cold storage
7 Is custom size available?
Yes, we do custom products and projects.
8. What is the minimum quantity ?
1X20'GP
9. What 's the lead time?
2-3 weeks against formal order and deposit.
10. Warranty?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive
Chemical material (for zinc plated and powder coated products, no limitation for hot DIP galvanized)
