320 mm Digital Label Die Cutting Machine with Stripping Function

Product Description

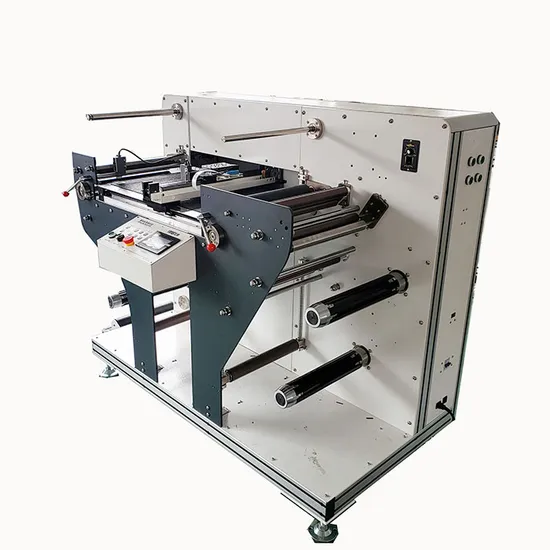

Ecoo DLP VD320 DIGITAL DIE CUTTING MACHINE
Product Description Introduction
EcooGraphix research and develop high-speed, easy to operate and multifunctional VD320 digital label die-cutter system. The high reliable and professional new model digital label die-cutter are designed for professional label printing company. VD320 digital label die-cutter system is collected laminating, die-cutting, slitting and rewinding on one, it is the best solution for label finishing system.

Specification

Model	Ecoo-VD320
Max. media roller	diameter 450mm
Cutting media width	40-340mm
Max.label width	310mm
Min.label length	10mm
Max.label length	400mm (segmentation get to 1200mm)
Cutting speed	max.6m per minute (depend on label shape and size)
Cutting blades	(Standard) max.4 pcs
Slitting blades	(standard)max.15pcs
Cutting tracking	with tungsten steel rotary blades
Die-cutting technology	0.1mm (duplicate)
Cutting precision	singe mark or double mark
Slitting speed	Max. 100m per minute
Slitting width	10-310mm
Slitting precision	0.1mm
Machine size (W*D*H)	160*100*136CM
Machine weight	520kg
Power	110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
Warranty	1year (besides high consumable parts)
Options	Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter

Software Features
• Software can only open PLT format file
• It can choose the knife down point according to shapes
• Trajectory optimization is for perfect cutting
Machine Spare Parts
1. High precision feeding system:
Utilize double mark tracking sensors system, guarantee media feeding in regularly. You can choose internal edge and internal line tracking.

2. Cold laminating
It has cold laminating function, your label will be bright and perfect.

3. Digital die-cutting system
VD320 Digital label die-cutter utilize Servo motor driving, use tungsten steel blade, the high-speed get to 2meter per second. Design many cutting heads with patents, the cutting thickness get to 1mm, more fast, more reliable and more efficiency.

4. Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting

5. The waste removing system
The precision machinery design can control the roller



FAQ 1. What are your main products?We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.2.Where is your factory?Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang. 3. What is your warranty?Normally 1 year.4. Can you also supply the software?Yes5. What about the Installation and after-sales technician support?Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
