EDM Wire Cutting Machine Step Motor High Precision Wire Cutting Machine Wedm CNC Machine

Product Description

Product Description

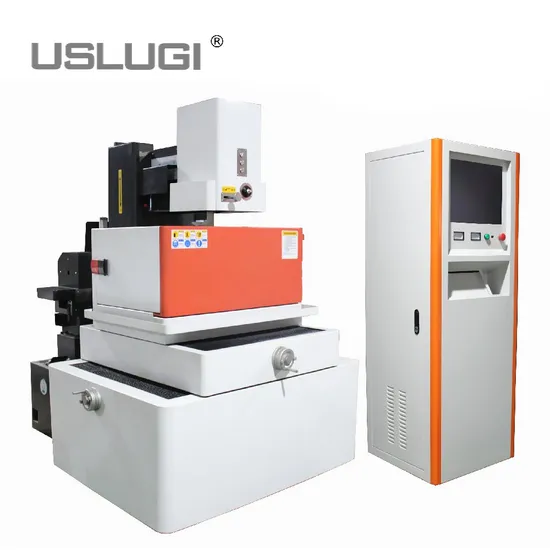

A Series--High Precision Wire Cut EDM Machine With Stepper Motor
Specification
1.Machine Features:
•Accuracy:0.003--0.004
•Roughness:1.0μmRa
•Processing speed:9,500 mm2/h
•Wear rate:0.01 mm/100.000 mm2
•Controt system:Autocut/Windows
•Fool-style operation
•Competitive price

2.Configuration:
•Machine body: resin sand casting.
•Solid T-type machine bed, C-type Z axis structural column.
•Latest HF discharge control
•Shilin converter
•C3 ground ball screw
•P level Linear guide
•Adopts upper-and-lower double wire tightening device.
•Waterproof Black stone wire-guiding wheel
•Patented black stone wire guider
•Equipped with high quality DRO

3.Parameters:

Items	Unit	DK7732A	DK7740A	DK07750A	DK7763A
Control system		Autocut/Win	Autocut/Win	Autocut/Win	Autocut/Win
Machining accuracy	mm	±0.005	±0.005	±0.005	±0.005
Roughness (3 pass)	μm	≤1.1	≤1.1	≤1.1	≤1.1
Worktable size	mm	470×740	510×800	680×980	750×1140
Table travel(X*Y)	mm	320×400	400×500	500×630	630×800
Max Cutting thickness	mm	300	300	300	300
Max Tapper	°/mm	±3°/80	±3°/80	±3°/80	±3°/80
Max cutting speed (1 pass)	mm²h	8500	8500	8500	8500
Max cutting speed (3 pass)	mm²h	4000	4000	4000	4000
Max current	A	6	6	6	6
Wire dia.	mm	φ0.10-φ0.25	φ0.10-φ0.25	φ0.10-φ0.25	φ0.10-φ0.25
Wire speed	m/s	4~12	4~12	4~12	4~12
Table load	Kg	300	500	600	800
Working solution		DIC 206	DIC 206	DIC 206	DIC 206
Water tank capacity	L	125	125	125	180
Power supply		3N-380V/50Hz	3N-380V50Hz	3N-300V50Hz	3N-380V/50Hz
Power consumption	KVA	2	2	2	2
Wire frame		Z axis motorized	Z axis motorized	Z axis motorized	Z axis motorized
Controller weight	Kg	100	100	100	100
Controller dimensions	mm	600x600x1850	860×600x2100	850×600×2100	850×600x2100
Machine dimensions	mm	1600x1200×2000	1810×1350×2000	2100×1450×2100	2300×1600×2100
Machine weight	Kg	2000	2500	3000	3800

Detailed Photos
Samples
FAQ
1.How can I choose the most suitable machines?
A: Please tell me your paramenters ,we can choose the best model for you , or you can choose the exact model.You can also send us the products drawing ,we will choose the most suitable machines for you.
2.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Milling Machine ,Vertical Machining Center ,Engraving and Carving Machine,Drilling and Tapping Machine ,Drilling EDM Machine,Die Sinking Machine,Wire Cutting EDM and so on.
3.What's your warranty?
A:Free one-year warranty and lifetime service for the entire machine.
4.When is the delivery time?
A:We can deliver stocked machines within 15 business days and afterreceiving full payment.
5.What is the packing of the machine?
A:The standard packaging of the machine is wooden pallet plastic film.
