Facial Recognition Camera Time Attendance Machine Non-Contact Temperature Access Control Temperature Detector with Auto Sanitizer Dispenser

Product Description

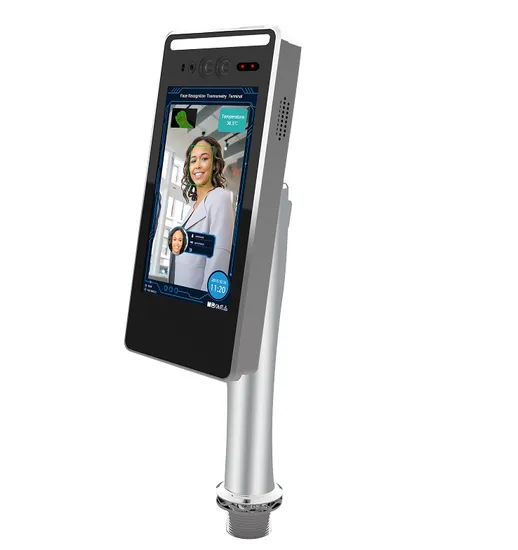

Non Contact Body Temperature Check and Facial Recognition Kiosk
MODEL: SE-WH5001FE
Product Feature:
-Integration of face capture, comparison function, infrared temperature measurement function
-Support the output of real-time video stream to other device, one complete face capture, recognition, infrared temperature detection function
-Temperature anomaly alarm, non-contact forehead temperature detection within one second, detection distance 25-45cm, temperature error range ±0.3°C, abnormal temperature linkage acousto-optic alarm
- Industrial grade design, pitch Angle, left and right rotation adjustable
-Support living face detection, effective prevention of photos and video spoofing
-Face database can reach 10,000pcs, flexible face template import, support single, batch image file import and real-time capture import
-Support face types of ordinary people, whitelist people, blacklist people, etc.
-Support recognize result linkage I/O, wiegand port output, voice broadcast
-Can be widely used in access control channels, wall-mounting attendance and other scenarios.

Screen
Dimensions	7- inch, full-angle IPS LCD screen
Resolution	1280x720
Camera
Type	Dual Camera Design
Sensor	1/2.8" SONY starlight CMOS
Resolution	1080P @ 30fps
Lens	3.6mm*2
Body temperature measurement
Measuring site	forehead
Temperature range	34-42 ºC
Temperature measuring distance	25-45cm
Temperature measurement accuracy	± 0.3 ºC
Temperature measurement response	≤ 1 s
Face recognition
Detection Type	Support lving face detection, effective prevention of print photos, phone photos and video spoofing
Face recognition distance	0.3-1.3m, support detection target size filter adjustment
Recognize face size	Pupils distance ≥ 60 pixels; Face pixel ≥150 pixels
Face database capacity	Support built-in ≤ 10000 faces; support black/white list
Posture	Support side face filter, comparable within 20 degrees in vertical and 30 degrees in horizontal
Occlusion	Ordinary glasses and short sea retention have no effect on recognition.
Expression	Under normal circumstances, slight expressions do not affect recognition.
Response Speed	≤ 1 s
Face exposure	Support
Local Storage	Support storage of 100,000 records, Face capture accuracy ≥99%
Recognition area	Full image recognition, support zone optional setting
Upload Method	TCP, FTP, HTTP, API function calling upload
Network Functions
Network protocol	IPv4, TCP/IP, NTP, FTP, HTTP
Interface protocol	ONVIF, RTSP
Security Mode	Authorized username and password
Event linkage	TF card storage, FTP upload, alarm output linkage, Wiegand output linkage, voice broadcast
System Upgrade	Support remote upgrade
Other	/
Accessories
Supplementary light	IR light, LED white light
Identification Module	Support built-in IC card reader module optional
	Support built-in ID card reader module optional
Speaker	Support voice broadcast after successful recognition, temperature alarm
Network Module	e
Interface
Network Interface	RJ45 10M/100M Network Adaptation
Alarm Input	2CH
Alarm Output	2CH
RS485 interface	Support
TF card slot	Supports up to 128G of local storage
USB	Support
Wiegand interface	Support Wiegand 26, 34, 66 protocols
Reset key	Support
Sim Card	Support
General
Operating Temperature	-20°C ~ 60°C
Working humidity	0%-90%
Protection Level	/
Power Supply	DC12V
Power dissipation (maximum)	≤ 12 W
Dimensions (mm)	406mm(H)*120mm(W)
Installation Method	Wall installation / gateway installation / floor stand installation

Dimension:
Cable Layout:
1. Wiegand interface
2. Alarm output 2
3. Import
4. Power input
5. Alarm output 1+RS485
6. Alarm input
7. USB
Production Process
