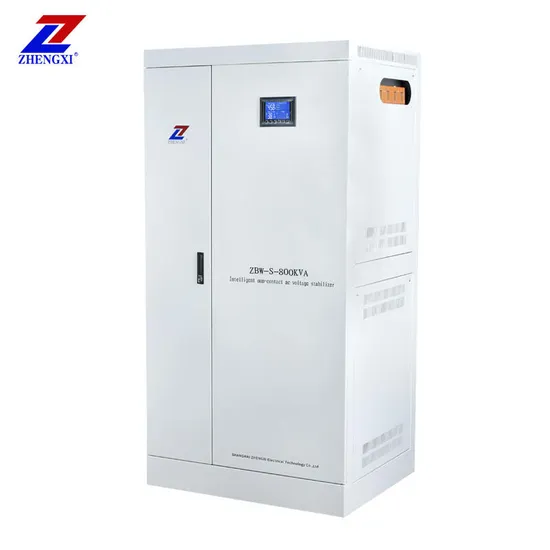

Three Phase Automatic Voltage Regulator Stabilizer Thyristor Cabinet Type Contactless

Product Description

ZBW Three phase non-contact regulator is a new generation of intelligent fast energy -saving regulated power supply designed by our company which absorbed foreign advanced technology and combined with China 's national conditions to stabilize AC voltage. The central control system of the voltage regulator adopts intelligent control of single-chip microcomputer and is equipped with multi-language liquid crystal display, which highlights the safety, stability, energy saving and humanized human-machine interface of the device, Compared with traditional compensation regulators, ZBW series non-contact regulators have three significant advantages: intelligent control and display, fast voltage regulation, and quiet energy saving.

ZBW Three phase non-contact regulator in mainly composed of compensation transformer (controllable transformer), thyristor non-contact switch, high speed AD sampling and intelligent processor composed of single -chip microcomputer. No carbon brush, no contact, no mechanical transmission, digital intelligent control. 12-bit high -speed AD acquisition 128 points per week, single chip digital processing and RMS calculation, accurate control, large-scale programmable logic device and microcontroller. User friendly human machine interface: you can view and set various indicators of the regulator through the touch panel.

Main technical parameter

Input Voltage range	Three phase 304V-456V , for wider range can be customized
Frequency	50Hz/60Hz
Related voltage	Line voltage 380V
Voltage regulation accuracy	±(1-7)% selectable (± 2.5% high precision)
Response time	<10ms
Stable schedule	≤ 100ms
Waveform distortion	Not generate additional waveform distortion(static)
Effectiveness	50KVA and below ≥97%, Above 50KVA ≥99%
Three-phase unbalance	Three-phase point voltage automatic balance
Delayed output	Regulate first, then output(protect the device from shock)
Overpressure	Output phase power is higher than 10%(245)
Under voltage	Output phase power is less than 10%(195)

Model	Rated capacity	Rated current	Net dimension
ZBW-S-10KVA	10KVA	15A	390*650*860(with four wheels)
ZBW-S-20KVA	20KVA	30A	390*650*860(with four wheels)
ZBW-S-30KVA	30KVA	46A	390*650*860(with four wheels)
ZBW-S-40KVA	40KVA	61A	390*650*860(with four wheels)
ZBW-S-50KVA	50KVA	76A	390*650*860(with four wheels)
ZBW-S-60KVA	60KVA	91A	390*650*860(with four wheels)
ZBW-S-80KVA	80KVA	121A	460*650*1200
ZBW-S-100KVA	100KVA	152A	460*650*1200
ZBW-S-120KVA	120KVA	182A	460*650*1200
ZBW-S-150KVA	150KVA	228A	760*660*1660
ZBW-S-200KVA	200KVA	300A	760*660*1660
ZBW-S-225KVA	225KVA	342A	760*660*1660
ZBW-S-250KVA	250KVA	380A	1100*800*2000
ZBW-S-300KVA	300KVA	450A	1100*800*2000
ZBW-S-400KVA	400KVA	608A	1100*800*2000
ZBW-S-500KVA	500KVA	760A	1100*800*2000
ZBW-S-600KVA	600KVA	912A	1100*800*2000

FAQ
Q1: What is the Guarantee?A1: Within One Year From The Sale Date, If There Are Any Accessory Problems,You Just Provide The Photos Of Damaged Accessory, Then We Will Provide Free Accessory.According To The Number Of Products, We Will Provide Easily Damaged Accessories For Free.We Also Can Provide Technical Support If You Need.Q2: Can we put/show our own Logo on your products?A2: Yes, no problem, however, the quantity should be a bit big.Q3: Is OEM/ODM available?A3: Yes, It Is! Our Products Can Be Customized.We Design And Produce All Kinds Of Automatic Voltage Regulators/Stabilizers According To Our Customers' Specific Requirements.Q4: What is the MOQ? A4: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the default configuration, it is 10 sets. For the big capacity products, it is 1 set.Q5: Can you offer Form A or Form E or C/O ?A5: Yes, no problem, we can apply for it from our local government.Q6: What kind of Certificates do you have?A6: CE, ISO9001 and SGS.Q7: What is the Terms of Payment?A7: L/C, T/T, D/P, D/A, Western Union and MoneyGram (for Small-amount payment).
