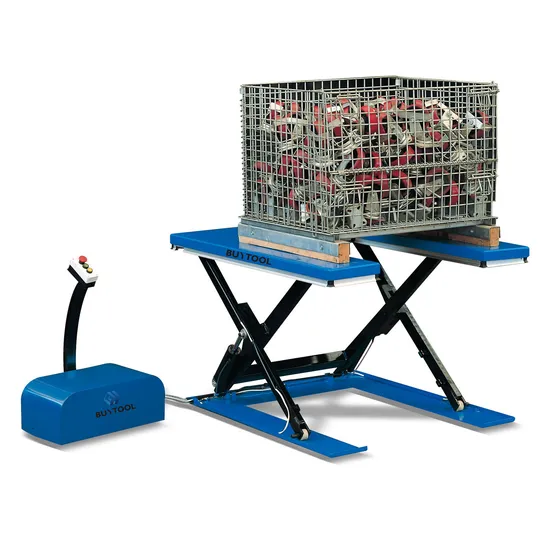

Low Profile U Shape Electric Hydraulic Scissor Lift/Lifting Table

Product Description

Low Profile U Shape Electric Hydraulic Scissor Lift/Lifting Table Product Description
Specially designed for handling pallets without the need for a pit or load ramps.
Manufactured to meet all European safety standards, including EN1570: 1990.
Remote power pack with pedestal and controls, protected to IP54. Upper platform fitted with a safety perimeter to prevent descent on contact with obstructions. 24V control box with UP and DOWN buttons and emergency stop. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Hose burst safety valve to stop the lift table from lowering in case of hose breakage. Removable lifting eyes to facilitate handling and installation of the lift table. Mechanical safety chocks for maintenance. Oiless bushings on pivot points. Quick assembly joint for oil hose. Choose the 'U' Shaped Top Platform from Wuxi Buytool Industrial Equipment Co., Ltd. for efficient and safe pallet handling. With no need for a pit or load ramps, this lift table offers convenience and ease of use. It meets all European safety standards, ensuring reliable performance. The remote power pack with pedestal and controls is protected to IP54, providing durability and longevity. The upper platform's safety perimeter prevents descent when obstructions are encountered, ensuring operator safety. The 24V control box with UP and DOWN buttons and emergency stop allows for precise and convenient operation. The lift table is equipped with a relief valve and compensated flow valve, ensuring controlled lowering speed and preventing overloading. With a hose burst safety valve, the lift table stops lowering in case of hose breakage, enhancing safety. The removable lifting eyes make handling and installation hassle-free. Mechanical safety chocks provide stability during maintenance, while oilless bushings on pivot points ensure smooth operation. The quick assembly joint for the oil hose simplifies setup and maintenance tasks. Trust Wuxi Buytool Industrial Equipment Co., Ltd. for a high-quality 'U' Shaped Top Platform that meets your pallet handling needs.
Product Parameters

Model	HU600	HU1000	HU1500
Capacity (kg)	600	1000	1500
Max. height H(mm)	860	860	860
Collapsed height h(mm)	85	85	105
Platform L×W(mm)	1450×985	1450×1140	1600×1180
Lifting Time (second)	25~35	25~35	30~40
Power Pack (KW)	380V/50Hz,AC1.1KW	380V/50Hz,AC0.75KW	380V/50Hz,AC1.5KW
Net Weight (kg)	207	280	380

Detailed Photos
The scissor lift is thickened and widened with a roller in the middle to increase the safety of the load force.

Suitable For Use With Forklift Pallets: Display Of Real Photography
Packaging & Shipping
Company exhibition:
FAQ
Q: What is the quality of your products?
A: Our products are CE approved and undergo a thorough quality inspection process. This includes: Inspecting the raw materials in accordance with ISO9001 standards Strict inspection throughout the entire production process Load limit testing during the assembly of finished products 100% strict inspection of products before shipment If necessary, additional inspection can be arranged by the buyer Q: How long is the warranty for your products? A: All of our products come with a one-year warranty.
Q: What is the lead time for orders? A: The lead time is as follows:
Normal orders: 30 days Orders with more than 5 items mixed in one container: 45 days Orders with one item in one container: 20 days If you have any further questions or require additional information, please feel free to contact us.
