Sunflower Soybean Mustard Extraction Coconut Screw Oil Pressing Making Expeller Press Machine

Product Description

Sunflower Soybean Mustard Black Coconut Screw Oil Pressing Making Expeller Press Machine
Product Description
The screw oil press can squeeze many kinds of oil seeds.
1. High capacity
2. Easy to operation
3. Simple to installation and trial run
4. Long using time
5. Good feedback
Function
Suitable Seeds: Copra, Flax seed, Pumpkin seed, Olive, Canola, Macadamia nut, Black seed, Mustard seed, Almonds, Pumpkin seeds, Corn germ, Cashew, Camellia seeds, Tea seed, Palm seeds, Palm kernel, Pepper seeds, Moringa Seeds,Chili seeds, Til seeds, and also Jatropha seeds, Cotton seed, Tung seeds,Castor seeds, Coconut, Groundnut, Peanut, Soybean, Rapeseed, Sesame, Sunflower seeds, Walnut, etc.
Application: Soybean oil, rape seed oil, tea seed oil, essential oil, sesame oil, sunflower seed oil, walnut oil, peanut oil, castor bean, corn germ, rice bran, cottonseed oil, tung oil, rapeseed oil, animal oil, this kinds of oil press machine can squeeze nealy all kinds of oil seeds and nuts.
Features:

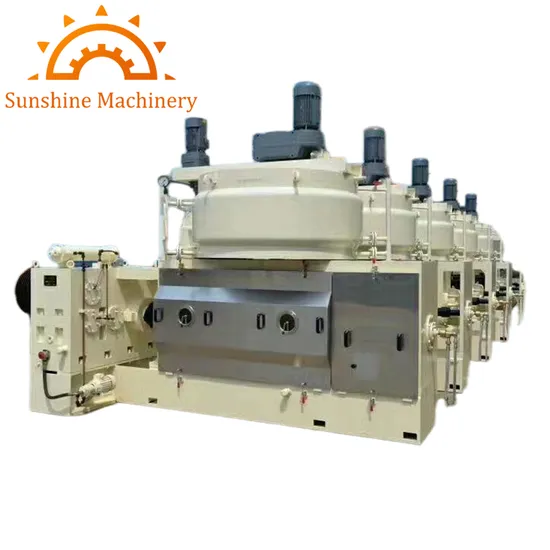

The ZX252 oil press machine has the following characteristics:
1. Large processing capacity, small footprint, low power consumption, minimal operation, management, and maintenance work;
2. The screw compression design is multi-stage compression, with high compression chamber pressure; Squeeze the cage length to fully squeeze the material;
3. The structure of the pressed cake is ceramic tile shaped, with less dust, which is conducive to the penetration of solvents;
4. The oil content of pressed cake is low, suitable for solvent extraction or cake packaging;
5. There is a special physical structure between the extrusion screws, making them easy to disassemble.
6. The main shaft is designed as a hollow shaft to cool the pressing chamber, reduce the temperature generated by high pressure, minimize protein loss, and improve the color of the cake.
7. The compression cage can be equipped with hydraulic opening and closing, which is easy to assemble and maintain, reducing labor intensity.
8. The gearbox adopts a forced lubrication cooling system, and the bearings and gears can be fully lubricated. We can also customize production according to customer requirements.
9. The feeding spiral drill can be controlled by a variable frequency motor reducer to ensure uniform feeding and smooth operation of the press. Feeding can also be equipped with auxiliary frying pans, which can cache and regulate embryonic materials.
10. Equipped with forced feeding to increase production, so that the material blanks of the press are completely compressed in the saturated state of the press chamber.

Suitable Seeds: Peanut, Soybean, Rapeseed, Sesame, Sunflower seeds, Walnut, Almonds, Pumpkin seeds, Corn germ, Cashew, Camellia seeds, Tea seed, Palm seeds, palm kernel, Pepper seeds, Moringa Seeds,Chili seeds, Til seeds, and also Jatropha seeds, Cotton seed, Tung seeds,Castor seeds, Ccoconut, Canola, Copra, Mustard seed, Flax seed, Grape seed, etc.
It is a good choice for big oil mill plant, because this type of oil press machine is with davanced technogy and long history, popular in and abroad.

Details Introduction
FEATURE:
An antomatic institution is designed resulting in reducing operator's working intensity.
With a large handling capacity, the workshop area, power consumption work on operation, administration and maintaining are reduced representatively.
Detailed Photos

Installation Instructions

Loading Pictures
Input Materials for this Oil press:
The screw press can process safflower seeds, sunflower seeds, copra, peanut, groundnut, soybean, rapeseed, mustard seeds, canola, flax seeds, jatropha seeds, etc.
Product Parameters
Technical Parameters

Model	ZX252
Power	45kw
Capacity	1000kg/h(20-25ton/day)
Residual oil in cake	5-8%
Size	5000*2580*2700mm
Weight	8000kg
Type	Heat pan type or feeder type
